Product Details:
Payment & Shipping Terms:
|
| Rope Diameter: | 15mm | Rope Capacity: | 100m |
|---|---|---|---|
| Power: | Electric | Speed: | 13m/min |
| Colour: | Red Or Customized | ||
| High Light: | hydraulic hoist and winch,hydraulic cable winch |
||

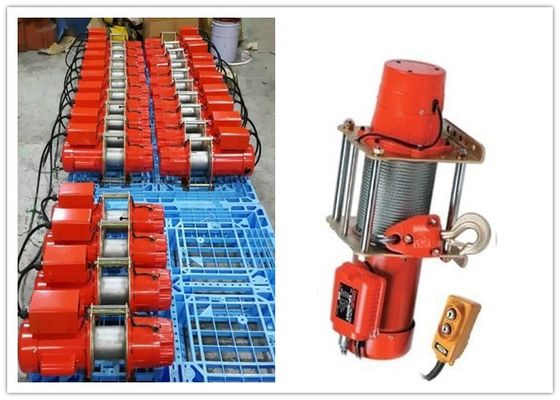

Product lookview
| Product name | electric winch machine |
| Speed | high or as customer application base |
| Drum design | LBS groove |
| Brand | LBS |
| Colour | yellow or require |
| Parameter | as customer application and requirement |
| Purpose | lifting |
| packing | wooden case |
Parameter: can be designed as application and requirement
| Model | Frirst layer Pull force(T) | Drum bottom diameter | Layer | Rope capaticty(mm) | Diameter of steel cable(mm) | Model of power | |
| LBSOF3-10 | 1 | 7-12 | 308 | 4 | 170 | 15 | XH2-420 D51 |
| LBSOF3-20 | 2 | 7-28 | 380 | 4 | 180 | 20 | XH3-900 D240 101 |
| LBSOF3-30 | 3 | 6-25 | 460 | 4 | 240 | 24 | XH5-1800 D240101 |
| LBSOF3-40 | 4 | 10-23 | 475 | 4 | 300 | 28 | XH6-2000 D240 101 |
| LBS0F3-50 | 5 | 10-25 | 605 | 4 | 400 | 30 | XH6-3000 D240101 |
| LBSOF3-10 | 10 | 15-30 | 6430 | 8 | 600 | 38 | XH7-4300 D240101 |
LBS groove design advantage by us for your referenct :
Electric winch machine application
Electric winches mainly used for oversize concrete construction of steel installation and disassembly of mechanical equipment. The wire rope ordered arrangement. Lifting is safe and reliable.It is suitable for bridge,factory,harbor,wharf,etc. Gear reducer driving,Used for hoisting,pulling,drag,compact structure,stable running.
Advantage and main feature
1. Top quality with competitive price.
2. Widely used in factory, mining, shipyard or double beam cranes.
3. Compact structure and reasonable design.
4. Easy to install, operate and maintenance.
5. Low noise and good working condition.
6. Safe and reliable function.
Company profile:
Our factory mainly in the service of hoisting machinery, Marine machinery, petroleum machinery, hydraulic machinery, engineering machinery and other industries, the main products are oil drilling rig, workover rig, drifting machine, trailermounted pumping unit winch (The main drum is used LBS grooved drum) and oil equipment accessories.
Working principle
electric winch for widely use transforms electric energy into mechanical energy through the motor, winch is rotor of the motor moves, outputs. Through the brake and the reducer, it reduces speed to rotate the reel. The reel winds the wire rope and passes through pulley block to make the hook lift the load, and transforms mechanical energy into mechanical work finishing transportation, load and unload of heavy weights.
