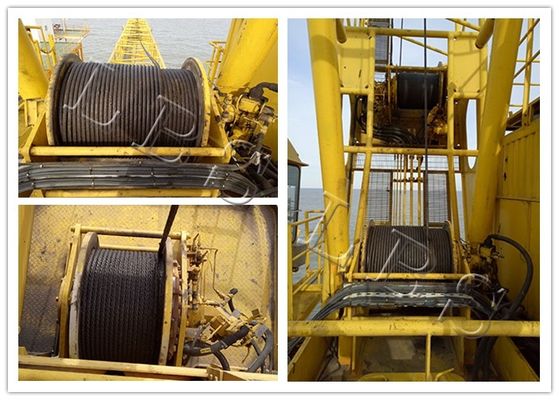

Hydraulic device using LBS groove drum for towring and mooring winch
Product structure tips:
Product name: Towring winch
other name :hydraulic boat winch or anchor winch/windlass
Rope speed :0~200 m/min
Capacity:500~6000KGS
Groove type :LBS groove drum or as requirement
packing :wooden case
Power:hydraulic
Parameter:can be design as requirment
Our design advantage:
We are LBS groove patent factory award by goverment.LBS design can make the winch work more effective than other design .As the rope in LBS groove would on and off the drum in a unifromed ways to provent the layer crushed or pinched by the up layer .It is more obvious in multi-layer .
Techinal parameter: can be design as customer
| Model |
Rated load
(KN) |
Rated Speed
(m/min) |
Rope Capacity(m) |
Rope Dia(mm) |
Motor |
Power (kw) |
Dimension(mm) |
Weight(KG) |
| JK0.5 |
5 |
22 |
190 |
7.7 |
Y100L-4 |
3 |
620*701*417 |
200 |
| JK1 |
10 |
22 |
100 |
9.3 |
Y112M-4 |
4 |
620*701*417 |
300 |
| JZ1.6 |
16 |
24 |
150 |
12.5 |
G132S-4 |
5.5 |
945*996*570 |
500 |
| JZ2 |
20 |
24 |
150 |
13 |
G132M-4 |
7.5 |
945*996*570 |
550 |
| JZ3.2 |
32 |
25 |
290 |
15.5 |
G180L-6 |
15 |
1325*1335*840 |
1011 |
| JZ3.2B |
32 |
30 |
250 |
15.5 |
JZ200L-6 |
22 |
1900*1738*985 |
1500 |
| JZ5 |
50 |
30 |
300 |
21.5 |
JZ225M-6 |
30 |
1900*1620*985 |
2050 |
| JZ5B |
50 |
25 |
210 |
21.5 |
LBSM-8 |
22 |
2250*2500*1300 |
2264 |
| JZ8 |
80 |
25 |
160 |
26 |
LBS280S-8 |
45 |
1533*1985*1045 |
3000 |
| JZ10 |
100 |
30 |
300 |
30 |
LBS315S-8 |
55 |
2250*2500*1300 |
5100 |
Product specification:
Custom-made (according to actual )
Ours services:
1. After-sales Service Provided: Engineers available to service machinery overseas
2. The warranty is one year
3. Top quality with competitive price
Company profile:
Our factory mainly in the service of hoisting machinery, Marine machinery, petroleum machinery, hydraulic machinery, engineering machinery and other industries, the main products are oil drilling rig, workover rig, drifting machine, trailermounted pumping unit winch (The main drum is used LBS grooved drum) and oil equipment accessories
Advantage and main feature
1. Top quality with competitive price.
2. Widely used in factory, mining, shipyard or double beam cranes.
3. Compact structure and reasonable design.
4. Easy to install, operate and maintenance.
5. Low noise and good working condition.
6. Safe and reliable function.
