Product Details:
Payment & Shipping Terms:
|
| Material: | Q345 | Type: | Weldment |
|---|---|---|---|
| Processing: | NC Center | Drive: | Electric Or Hydraulic |
| Drum Type: | Groove | Winding Layers: | Multi-storey |
| Color: | Silver | Size: | According Your Parameter |
| High Light: | rope winch drum,electric hoist winch |
||
Important News to Buyer:
If you using the smooth drum winch ,then you will face the problem that you want to change the rope type or the capacity or some usage working function like that ,now you only want to change the LBS groove sleeve installing on the smooth drum instead of to change the whole winch .That is convenient and save the time and money for you
Product Parameters
| Rope diameter(mm) | 5 | 12 | 24 | 32 | 42 | 58 |
| Grooved drum diamater(mm) | 80 | 150 | 300 | 500 | 800 | 1100 |
| Width between the flanges(mm) | 150 | 280 | 300 | 460 | 750 | 1000 |
| Rotation direction | L | R | R | L | L | R |
| Number of layers | 3 | 2 | 4 | 6 | 8 | 8 |
| Rope capacity(m) | 18 | 19 | 43 | 127 | 360 | 1800 |
Product details:

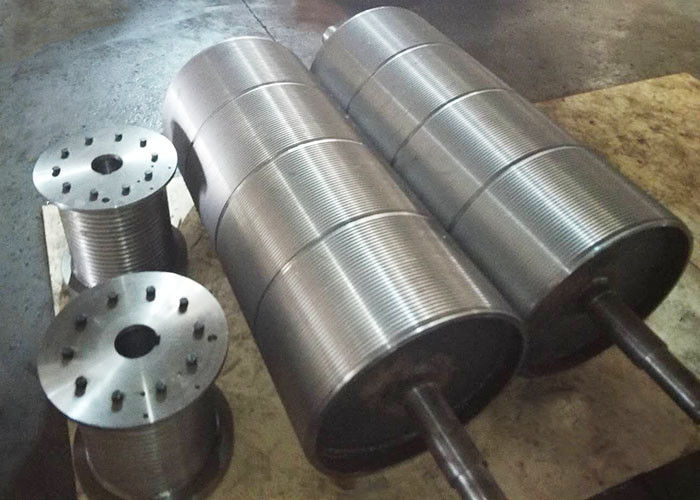

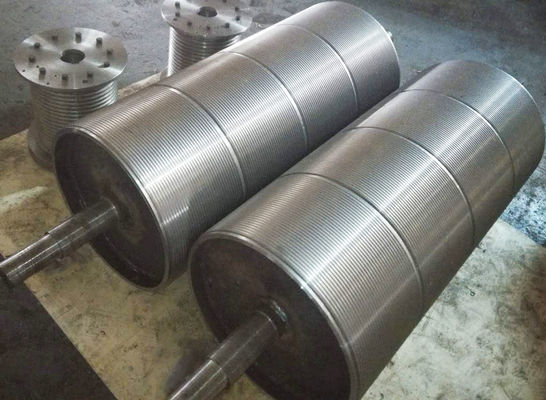

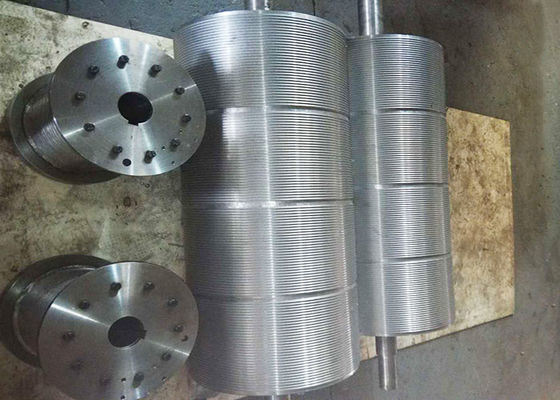

Compared with cordless groove and helical groove drum, LBS grooved drum has obvious advantages in multilayer spooling. It can be widely uesd in the heavy lifting and compact working conditions.
The advantage as follows: |
| 1) Each one circle layer of the grooved drum has two parallel groove section and two crossing groove section. |
|
2) Make wire rope spooling more smooth and uniform distribution of load between each layer.
|
|
3) Prevent cross& mess in rope spooling working happening.
|
|
4)Lower the rope damage, extend the rope life.
|
Customized requirements:
1. Drum diameter
2.Width of between flanges
3.Rope or cable diameter
4.Length of rope to be accommodated
5.Direction of wire rope entry
6.Any further information
Shipping and packaging:
Packing: Packed by standard wooden case.
Shipping: Sample delivery within 5 -10 days by air. DHL/TNT/FedEx/EMS/UPS etc
Bulk orders within 15-20 workdays after order confirmed by sea.
Loading port is Tianjin XinGang port or as inquiry.
Why you shoud choose us:
1)10 years LBS design and produce experience
2)LBS patent award by government
3)The specilized in design and drawing for one of the customer according the different usage
4)The successful case with China big government project
5) Top quality with competitive price.
FAQ:
|
Q1:What's your terms of payment? A. T/T 50% deposit and 50% before delivery. we will show you the photos of products and packages before your pay the balance. |
|
Q2:What's your terms of delivery? A. EXW, FOB CIF CFR etc
|
|
Q3:How about your delivery time? A. Generally,it will take about 10-30 days after receive your advance payment.The specfit delivery time depends on your order.quantitty. |
|
Q4:Can you produce according to the samples? A. Yes, we can produce by your sample and technical drawings, we can build mold and fixtures.
|
|
Q5: What's your sample policy? A. We can supply sample, but the customer have to pay the sample cost and courier cost.
|
|
Q6: Do you test all your goods before delivery? A. Yes, we have 100% test before delivery.
|
