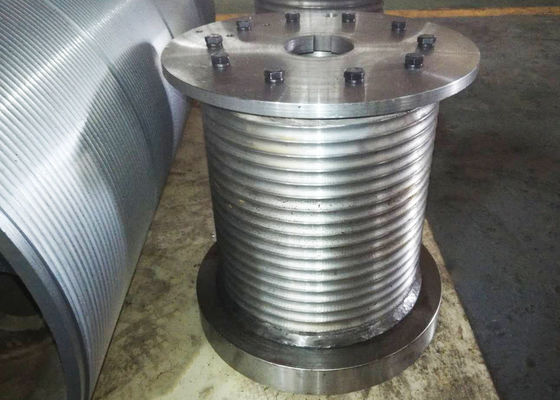

High Performance Wire Rope Drum Multi - Layer With Flange BV CCS Standard

High Performance Wire Rope Drum Multi - Layer With Flange BV CCS Standard
High Performance Wire Rope Drum Multi - Layer With Flange BV CCS Standard High Performance Wire Rope Drum Multi - Layer With Flange BV CCS Standard High Performance Wire Rope Drum Multi - Layer With Flange BV CCS Standard High Performance Wire Rope Drum Multi - Layer With Flange BV CCS Standard

Large Image :  High Performance Wire Rope Drum Multi - Layer With Flange BV CCS Standard

Product Details:
Place of Origin: Hebei，China
Brand Name: LBS
Certification: DNV, ABS, GL, LR, BV, CCS, RINA, NK,
Model Number: LBS-d
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD100-5000set
Packaging Details: export standard wooden case
Delivery Time: 20days
Supply Ability: 200sets per month
Contact Now
Detailed Product Description
Winding Layers: Multi-layer Drum Type: LBS Groove
Size: According To Your Spec Material: All Kinds Of High Strength Steel
Drive: Electric Or Hydraulic Processing: NC Center
Highlight:

rope winch drum

,

electric hoist winch

Name:High Performance Wire Rope Drum Multi - Layer With Flange BV CCS Standard



Technical parameters and application:



No: Wire diameter(mm): Rotation direction Main drum
diameter(mm)		 Main drum length(mm) Application
1 8 10 13 16 Lefthand,Righthand 430 763 The oil workover rig winch,
Towing winch.Tower crane
2 13 18 20 24 Lefthand,Righthand 623 1144 Engineering winch,
Lifting winch,Crawler crane
3 22 25 26 28 Lefthand,Righthand 730 1220 Oil workover rig ,
Logging Winch
4 18 22 32 Lefthand,Righthand 670 1240 Drilling Rig Winch, drawworks
5 28 32 36 40 Lefthand,Righthand 560 630 Rotating Drilling Rig winch,
Lifting equipment
6 26 28 32 45 Lefthand,Righthand 760 1146 1970 1765

Offshore Crane,
Marine crane,Mooring winch



......


material of the product:
Carbon steel, Stainless steel, Aluminum, Alloy steel, All kinds of high-strength steel Q345, Q420, Q460, 15CrMo, 20GrMo, 40GrMo, 42GrMo, etc
Material standards: GB, AISI, ASME, ASTM, JIS DIN, NF, BS, EN ...
Classification societies certified: DNV, ABS, GL, LR, BV, CCS, RINA, NK, KR ...

Product advantage:
1)LBS grooved drum, solved the problem of wire rope spooling.
2)Compared with ordinary cordless groove (smooth) drum and helical rope groove drum, LBS rope groove has obvious advantages in the multi-layer wire rope spooling, LBS special groove system makes the spooling of wire rope smooth, and the load of each layer evenly distributed, extend the service life of rope, reduce the wire rope damage, improves the safety of the operation of the equipment, and reduces the problem of mechanical equipment shutdown for changing rope.



Product structure:
Integral wire rope groove drum: rope drums with grooves cut directly into them (with or without bolted or welded flanges, as required).Winch drum with flange, the LBS groove is cut directly into the body of the drum, according to customers’ requirements, the flanges are either welded or screw-bolted. groove geometry is determined by rope construction, diameter and length, and by application. the drum has the required mounting dimensions for the actual operating conditions.

Our service:

1.Many years specialised in the design and manufacture of custom winches

2.Overcome the spooling problems in the arduous oilfield drilling industry

3.Professional design case by case and professional advises

4.Advanced manufacturing equipment

5.After-sale service

6.Good quality and competitive price



High Performance Wire Rope Drum Multi - Layer With Flange BV CCS Standard 0



High Performance Wire Rope Drum Multi - Layer With Flange BV CCS Standard 1
FAQ:

Q1:What's your terms of payment?
A. T/T 50% deposit and 50% before delivery. we will show you the photos of products and packages before your pay the balance.

Q2:What's your terms of delivery?
A. EXW, FOB CIF CFR etc


Q3:How about your delivery time?
A. Generally,it will take about 10-30 days after receive your advance payment.The specfit delivery time depends on your order.quantitty.

Q4:Can you produce according to the samples?
A. Yes, we can produce by your sample and technical drawings, we can build mold and fixtures.


Q5: What's your sample policy?
A. We can supply sample, but the customer have to pay the sample cost and courier cost.


Q6: Do you test all your goods before delivery?
A. Yes, we have 100% test before delivery.
