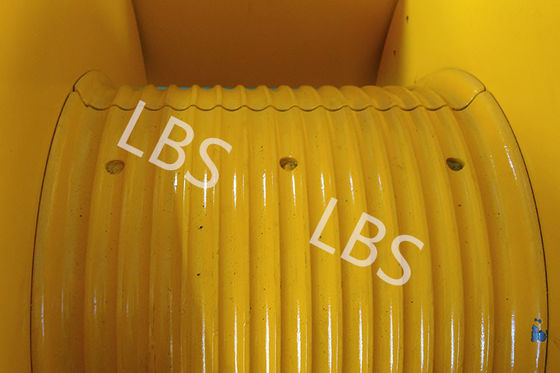

Lefthand or Righthand Split LBS Grooved Drum For Winch

Lefthand or Righthand Split LBS Grooved Drum For Winch
Lefthand or Righthand Split LBS Grooved Drum For Winch Lefthand or Righthand Split LBS Grooved Drum For Winch Lefthand or Righthand Split LBS Grooved Drum For Winch

Large Image :  Lefthand or Righthand Split LBS Grooved Drum For Winch

Product Details:
Place of Origin: Hebei,China
Brand Name: LBS
Certification: DNV, ABS, GL, LR, BV, CCS, RINA, NK,
Model Number: LBS-S
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 200-5000
Packaging Details: export standard wooden case
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T
Supply Ability: 200pieces per month
Detailed Product Description
Rope Diameter: 10-50mm Rope Capacity: 100-5000M
Rotation: Right Or Left Speed: 20m/min
Material: SS , Carbon Steel Or Requirment Port:: Tianjin
Equipment: CNC Flange: Acoording To The Drum Length
Highlight:

lebus grooving

,

drum sleeve

Quckly knowlage for LBS groove sleeve parameter requirment:

1) Wire rope or cable diameter (mm)
2) The main drum diameter (mm)
3) Width between flanges (mm)
4) Length of rope or cable to be accommodated
5) Material and requirements of the drum
6) Maximum operating load on rope or cable
7) Direction of wire rope entry
8) Type of rope entry
9) Distance to fixed sheave and position between flanges
10) Outside diameter of flanges
11)All of the products can be customized or designed by us

Technical parameters and application:(for reference)



No: Wire diameter(mm): Rotation direction Main drum
diameter(mm)
Main drum length(mm) Application
1 8 10 13 Lefthand,Righthand 430 763 The oil workover rig winch,
Towing winch
Tower crane
2 13 18 20 Lefthand,Righthand 623 1144

Engineering winch,
Lifting winch,

Crawler crane

3 22 25 26 Lefthand,Righthand 730 1220 Oil workover rig ,
Logging Winch
4 18 22 32 Lefthand,Righthand 670 1240

Drilling Rig Winch,

drawworks

5 28 32 36 40 Lefthand,Righthand 560 630 Rotating Drilling Rig winch,
Lifting equipment
6 26 28 32 45 Lefthand,Righthand 760 1146 1970 1765 Offshore Crane,
Marine crane,Mooring winch





LBS advantage compared with the smooth or traditional spiral drum:

  1. Each one circle layer of the grooved drum has two parallel groove and two groove section
  2. Make the cable even smooth ;load even distribution
  3. Prevent cross &mess in cable rolling working happening
  4. Lower the cable damage, extend the cable life
  5. Save money and time compared with replace the whole winch
Product structure:

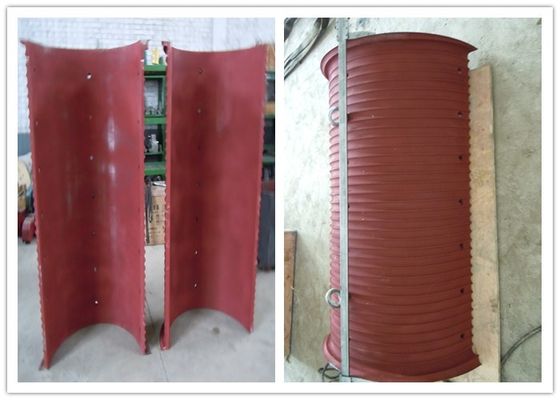

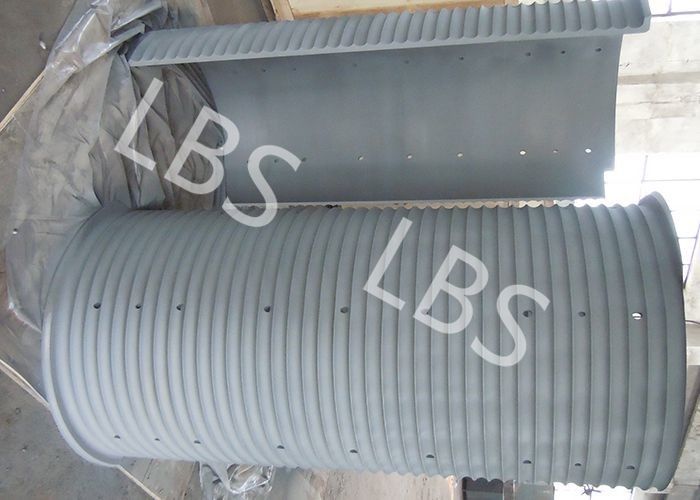

Split wire rope groove sleeve: grooved split sleeves can be placed over smooth and ungrooved drums – suitable for modification or replacement of drum.
Split-sleeve system consists of a pair of outer shells that are bolted or welded onto a smooth drum to provide a grooving pattern,The split sleeve is composed of spiral groove and parallel groove,the groove design conforms to the specified wire rope structure, diameter and length.



Lefthand or Righthand Split LBS Grooved Drum For Winch 0



Lefthand or Righthand Split LBS Grooved Drum For Winch 1

Our certificates:

Lefthand or Righthand Split LBS Grooved Drum For Winch 2

Our service:

Service tenet:

My company's customer service tenet is: "Clients are always the first.”

Service strategy:

1. Information Service System

2. Professional service skills

3. Experienced after-sales team

Service content:

A: Pre-sales Service

1. Provide technical advisory services to assist customer in selection;
2. Provide customers with the necessary technical information, drawings, etc;

B: Sales Service

1. According to the relevant technical parameters, design drawings, or to provide customers with drawings of professional review, to provide the best solution and drawings.

2. Answers questions about specifications, performance, parameters, etc, and recommend the most appropriate solution.

3. Immediately after signing the contract, we make production planning for timely delivery.

C: After-sales Service

1. Provide technical advice during installation process;

2. In warranty period, if a quality-related problem occurs in normal use, please send a written description of the problem to us. We will respond within 24-48 hours.

3. Even if the warranty has expired, we are still glad to solve problems that are not due to improper use for you. All repairs will be billed at cost, and for long term, we supply spare parts at favorable price.

FAQ:

Q1:What's your terms of payment?

A. T/T 50% deposit and 50% before delivery. we will show you the photos of products and packages before your pay the balance.

Q2:What's your terms of delivery?

A. EXW, FOB CIF CFR etc



Q3:How about your delivery time?

A. Generally,it will take about 10-30 days after receive your advance payment.The specfit delivery time depends on your order.quantitty.

Q4:Can you produce according to the samples?

A. Yes, we can produce by your sample and technical drawings, we can build mold and fixtures.



Q5: What's your sample policy?

A. We can supply sample, but the customer have to pay the sample cost and courier cost.



Q6: Do you test all your goods before delivery?

A. Yes, we have 100% test before delivery.
