Material: | Stainless Steel Carbon Steel Etc | Name: | LBS Grooved Drum |
---|---|---|---|
Diameter Of Drum: | As Your Requirement | Diameter Of Wire Rope: | 3mm-190mm |
Rope Capacity: | 10m-10000m | Rotation Direction: | Left Or Right |
Processsing Equipment: | CNC Machining Center | Color: | Optional |
Highlight: | oil winch,mine winches |

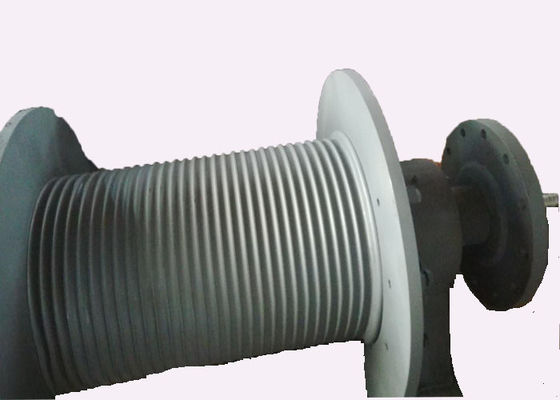

Title:LBS Grooved Drum Design for Controlling the Spooling of Wire Rope
Product application:
Offshore marine machinery | marine oil crane winch/ mooring winch/ traction winch/ anchor winch/man-riding winch |
engineer machinery | cable winch/ Tower winch/hydraulic winch/pile driver |
oil machinery | oil drilling rig/oil workover rig |
building machinery | wipe wall winch/ winding hoist/ windlass |
mining machinery | dispatching winch/traction winch/sinking winch |
Hoist machinery | bridge crane/ Tower crane/portal crane/Crawling winch |
Product parameter:(The customer is required to provide parameter as follows)
Diameter of winch drum(mm) | 80 150 300 800 1100 |
Rope diameter(mm) | 5 8 10 12 24 32 42 58 |
the length of rope or cable | 3m-1000m |
Width between flanges(mm) | 150-1000 |
Distance to fixed sheave and position between flanges | ? |
Outside diameter of flanges | ? |
Direction of wire rope entry | left or right? |
Maximun operating load on rope or cable | ? |
A detailed drawing of drum if possible |
Product structure:
It is composed of two parallel grooves and two crossed grooves in each circle of the winch drum.
The advantages of multilayer winding:
When the wire rope need to wind many layers, the LBS groove can fix the crossover point of the upper rope and the lower rope through crossed groove, which could control the crossover point and make it finished in the crossed groove. In the parallel groove,the upper wire rope can falls into the groove formed by two lower rope. It can form a stable structure between the upper wire rope and the lower wire rope. When the wire rope return to another sides,
Both ends’ bead flange can guide wire rope to climb smoothly and return. This structure make our LBS groove realize multi-layer winding and avoid teh messy rope. However, the ordinary spiral groove only make the first layer smoothly winding, but it can not guide the second layer convolve smoothly back, which is especially easy to cause messy rope problems.
The advantages of single layer winding:
According to your condition, since there is not pressure rope device, your movement is rely on the friction force between drum and wire rope. In order to prevent the wire rope from slipping, it is necessary to increase friction between the drum and wire rope. Compared to the spiral groove, the LBS groove have two parallel-line segment and two crossed -line segment, so the LBS have a larger friction, which could prevent wire rope from slipping.
FAQ:
Q1:What's your terms of payment? A. T/T 50% deposit and 50% before delivery. we will show you the photos of products and packages before your pay the balance. |
Q2:What's your terms of delivery? A. EXW, FOB CIF CFR etc
|
Q3:How about your delivery time? A. Generally,it will take about 10-30 days after receive your advance payment.The specfit delivery time depends on your order.quantitty. |
Q4:Can you produce according to the samples? A. Yes, we can produce by your sample and technical drawings, we can build mold and fixtures.
|
Q5: What's your sample policy? A. We can supply sample, but the customer have to pay the sample cost and courier cost.
|
Q6: Do you test all your goods before delivery? A. Yes, we have 100% test before delivery.
|
