Product Details:
Payment & Shipping Terms:
|
| Material: | Carbon Steel Or Others | Driven Type: | Hydraulic |
|---|---|---|---|
| Reel Number: | 1 | Load Capacity: | 30 Ton |
| Drum Grooving: | LBS Grooving | Rope Capacity: | 30m-3000m |
| High Light: | marine electric winch,marine drum winch |
||

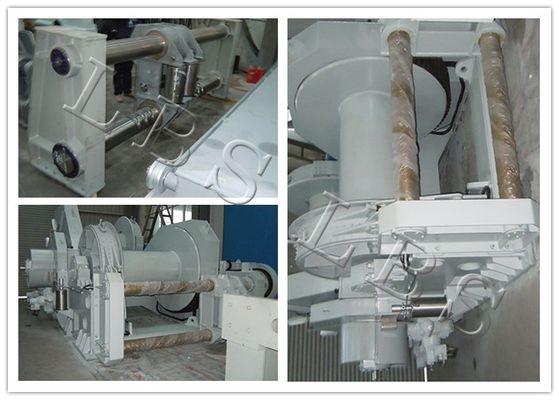

Name: Marine Hydraulic Single Drum Mooring Winch with ISO BV Certifications
Important News to Buyer:
If you using the smooth drum winch ,then you will face the problem that you want to change the rope type or the capacity or some usage working function like that ,now you only want to change the LBS groove sleeve installing on the smooth drum instead of to change the whole winch .That is convenient and save the time and money for you.
The LBS grooved winch is used widely in construction site,plane,mine,offshore and wharf. It's necessary ewuipment for lifting or pulling materials.
Specifications:
| Drum diameter (mm) | 150mm 450mm 680mm or as your requirement |
| Width between the flanges(mm) | 280mm 450mm 750mm or customization |
| Rope diamater(mm) | 8mm 15mm 16mm 24mm etc. |
| Rope length (m) | 3-1000m |
| Number of layers | 3 4 5 or more |
| Rotation direction | left or right |
LBS grooved winch drum advantages:
1.Each one circle layer of the grooved drum has two parallel groove section and two groove section
2. Make wire rope winding more smooth and uniform distribution of load between each layer
3. Prevent cross&mess in rope spooling working happening
4.Lower the rope damage, extend the rope life
LBS Products Drum Feature:
Compact structure and reasonable design
Safe and reliable function
Highly efficient, constant operating torque motor.
Smooth running over the entire speed range.
Shipping:
Generally it is 5-10 days if the goods are instock, or it is 15-20 days if the goods are not in stock. it is according to the quantity.
generally export packing,or customized packing as your request.
FAQ:
|
Q1:What's your terms of payment? A. T/T 50% deposit and 50% before delivery. we will show you the photos of products and packages before your pay the balance. |
|
Q2:What's your terms of delivery? A. EXW, FOB CIF CFR etc
|
|
Q3:How about your delivery time? A. Generally,it will take about 10-30 days after receive your advance payment.The specfit delivery time depends on your order.quantitty. |
|
Q4:Can you produce according to the samples? A. Yes, we can produce by your sample and technical drawings, we can build mold and fixtures.
|
|
Q5: What's your sample policy? A. We can supply sample, but the customer have to pay the sample cost and courier cost.
|
|
Q6: Do you test all your goods before delivery? A. Yes, we have 100% test before delivery.
|
