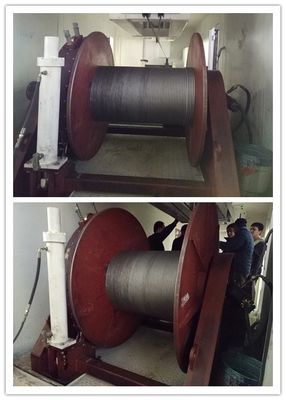

Boat And Lifting Electric LBS Grooved Drum For Lifting Machinery

Title:Boat and Lifting Application Electric Winch with LBS Grooved Drum

Key specifications:

This series of electric winch is mainly used to lift material, drag heavy object in building construction.
It can be also used as lifting unit of crane
Special purpose winch for derrick, portal frame and lifting trolley
Suitable in civil construction projects in building, mining area, factories and installation of small equipment

Features:

1. Capacity: 0.5-10T
2. Lifting height: 300m
3. Lifting speed: single/VVVF
4. Voltage: 220V/380V/400V/415V
Components:

Drum/drum shaft

Drum can be directly cut into the LBS grooving or helical grooving,which could make the wire rope spooling more smooth.

Drum diameter: not less than 19 times of wire rope diameter
Drum wall can withstand wrapped tight force of wire rope, side can withstand lateral force produced by wire rope
Distance between drum side plate peripheral to outermost roll rope not less than twice of the wire rope diameter

Drum customization need to know the details as follows:

1.wire rope diameter and structure

2.width between the flanges

3.the outer drum diameter

4.material

5.rotation direction---left or right

Motor/electrical system:

Duty of motor and quota in accordance with GB/T755 rules
The protection grade motor, button, switch and other electrical device not lower than GB4942.1 and IP44 level specified in the T4942.2
Electrical control equipment and component set in cabinet, electrical box has a door lock
Electrical equipment installed firmly, electrical connection is good, not easy to loose, and in accordance with the provisions of GB50150

Reducer:

Reducer is mainly composed of transmission parts, shaft, bearing, box and its accessories
Function of reducer is to match speed and transfer torque between motor and working machine or actuator
