Electric Spooling Device Winch / Rope Arranging Device With Compensator

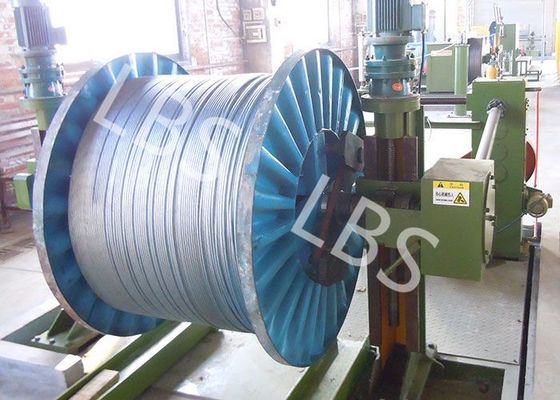

Large Image : Electric Spooling Device Winch / Rope Arranging Device With Compensator

Product Details:

Place of Origin:	Hebei，China
Brand Name:	LBS
Certification:	DNV, ABS, GL, LR, BV, CCS, RINA, NK,
Model Number:	Custom design

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Export standard wooden case
Delivery Time:	20 to 30 working days, depends on order amount and specification
Payment Terms:	L/C, T/T
Supply Ability:	1000 Pieces/Sets Per Month

Contact Now

Detailed Product Description

Port:	Tianjin China	Sling Type:	Wire Rope Or Cable
Application:	Crane, Mine Hoist, Port Winch......	Color:	According To Customer Demand
Grooving Type:	LBS Grooving Or Helical Grooving	Customization:	Yes
Processing Equipment:	CNC Center
Highlight:	winch spooling device , wire rope spooling device

Title: Spooling Device Winch / Rope Arranging Device/Electric winch with compensator

Brief view of product

pruduct name	heavy duty winch /mooring winch
Fuction	rope arrange
Sling type	cable or wire
Rope diameter	3~199mm
Rope capacity	50-10000M
Drum design	LBS groove /sprial groove/smooth
Appliation	marine,crane,offshore,boat,ship ,truck,mining ,logging ,construction
Colour	Blue or customer
Parameter	As the prudoct working condition or the function

LBS double grooved winch drum advantage:

Each one circle layer of the grooved drum has two parallel groove and two groove section
Make the cable even smooth ;load even distribution
Prevent cross &mess in cable rolling working happening
Lower the cable damage, extend the cable lif

LBS parameter:can be design as customer base or working condition

Model	Frirst layer Pull force(T)		Drum bottom diameter	Layer	Rope capaticty(mm)	Diameter of steel cable(mm)	Model of power
LBSPH3-10	1	7-12	305	4	170	15	XH2-420 D51
LBSPH3-20	2	7-28	380	4	180	20	XH3-900 D240 101
LBSPH3-30	3	6-25	470	4	240	24	XH5-1800 D240101
LBSPH3-40	4	10-23	470	4	270	28	XH6-2000 D240 101
LBSPH3-50	5	10-25	600	4	300	30	XH6-3000 D240101
LBSPH3-10	10	15-30	640	8	500	38	XH7-4300 D240101

Product structure:

1. The rope winding device of the winch (spooling device winch) adopts the principle of double rotating screw to drive the rope wheel to move back and forth,It is mechanical transmission device, easy to use, safe and reliable.

2. The winch rope arranging device consists of six parts, namely, power output part, transmission box, clutch, spiral sleeve part, rope supporting part and base.

3. In the installation process, does not require any part of the transformation of the winch, only needs to install the outer gear on the winch motor side, the power of the motor output.

4. Winch drum - gear box - screw sleeve rotation - rope wheel reciprocating movement.

5. Do not need to change any part of the winch during installation, just installed in the outer gear winch motor side

LBS Products Drum Feature:

Compact structure and reasonable design
Safe and reliable function
Highly efficient, constant operating torque motor.
Smooth running over the entire speed range.

principle:

1. The two-way reciprocating screw is made of two screw threads with different rotating directions on one screw rod.That is, a right-hand thread, a section of left-hand thread.

2. The right and left nuts are respectively connected with the moving parts. When the screw is rotated, the two moving parts rapidly approach or separate along with the nut so as to produce the required mechanical function.
