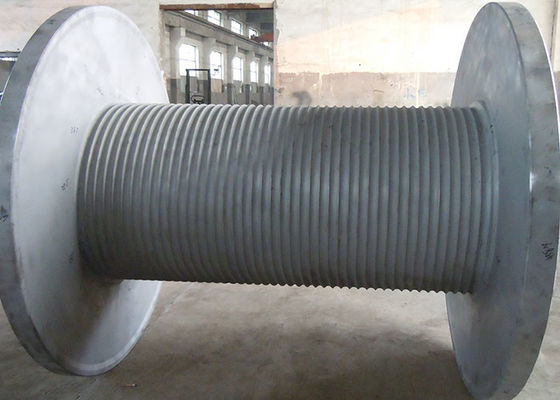

Grey Offshore Winch , Wire Rope Drum Carbon Steel / Aluminium Alloy / Stainless Steel Materials

Title:Carbon Steel & Aluminium Alloy & Stainless Steel Drum-Shaped Wire Rope Drum

Product details:

If you want to reduce the cost, you can choose the LBS sleeve which is designed by your drum's structure. And it also can meet your requirements.

And if you want to instead of a new drum,we can process your required groove, but you need to provide the parameter as follows:

LBS grooving structure:

1. This LBS rope groove can be directly on the smooth drum processing.
2. It can also be made with a LBS rope groove of the sleeve, the sleeve from the middle position separated into the upper and lower split, the installation of the sleeves wrapped around the smooth drum, by bolts or welding with the reel Tightly connected into one.
3. Compact structure and reasonable design
4. Safe and reliable function
5. Highly efficient, constant operating torque motor.
6. Smooth running over the entire speed range.

Why we choose LBS product:

All the lifting equipments need a perfect drum to control the spooling of wire rope,But some times, when the wire rope winding, we will face the bite or mess problem, which not only affect our work efficiency but also reduce the life of wire rope.And LBS design is the most practical and cost effective solution to any spooling problem.

LBS is different from spiral grooving. Its design make up for the weekness of spiral grooving like:

1.  LBS rope groove productioned by our company has obvious advantages in the spooling of multi layer steel wire rope compared with ordinary cordless groove (smooth) drum and helical rope groove drum.
2. the LBS groove solves the serious problem of rope biting and disorder in the spooling process of the steel wire rope.
3. LBS rope groove to make the rope more smooth spooling, the load between the layers evenly distributed, reducing the wire rope in the process of irregular, random and bite rope phenomenon, reducing the damage to the rope, extending the wire rope Life, improve the safety of equipment operation, and reduce the mechanical equipment downtime due to rope change.

Product application:
