D-DN19 Model LBS Grooved Drum , Wire Rope Hoist Drum For Hoisting

D-DN19 Model LBS Grooved Drum , Wire Rope Hoist Drum For Hoisting
D-DN19 Model LBS Grooved Drum , Wire Rope Hoist Drum For Hoisting D-DN19 Model LBS Grooved Drum , Wire Rope Hoist Drum For Hoisting D-DN19 Model LBS Grooved Drum , Wire Rope Hoist Drum For Hoisting D-DN19 Model LBS Grooved Drum , Wire Rope Hoist Drum For Hoisting

Large Image :  D-DN19 Model LBS Grooved Drum , Wire Rope Hoist Drum For Hoisting

Product Details:
Place of Origin: SHIJIAZHUANG CITY
Brand Name: LBS
Certification: IFA CE SGS
Model Number: D-DN19
Payment & Shipping Terms:
Minimum Order Quantity: 3 sets
Price: USD 300-3000 / set
Packaging Details: export wooden box or as your require
Delivery Time: 3-7 work day
Payment Terms: T/T, Western Union
Supply Ability: 500 sets per month
Detailed Product Description
Material: Q345B Q345D Rope Inlet: Left Or Right
Drum Diameter: 300mm Or As Your Require Grooving Type: LBS
Application: Hoisting Winch
High Light:

cable winch drum

,

rope winch drum

Title:D-DN19 Model LBS Grooved Drum / Wire Rope Winch Drum for Hoisting


The introduction of LBS system:

1. For monolayer winding

Ccompared with spiral groove, LBS groove has larger friction force in the first layer when the wire rope winding.And it can make the wire rope smooth and orderly arrangement .



2.For multi-layer winding

  • In fact, the LBS groove has obvious advantages in multilayer spooling. Ordinary spiral grooves can only ensure that the first layer can be neatly spooled,but it can not guide the second layer of wire rope to be neatly spooled and it is easy to cause the problem of rope biting.
  • The LBS groove solves the rope-biting problem in the process of spooling.It adopts double folded rope groove, which makes the rope amooth and the load distribution among layers.
  • Practice has proved that LBS groove greatly prolongs the working life of wire rope. Data shows that it can prolong the working life of wire rope by more than 500%.
  • LBS groove has improved safety and reduce the downtime of mechanical equipment due to rope change.

Product parameter:

rotation direction drum capacity(m) drum diameter(mm) rope diameter(mm) groove type
left or right 10~10000 30~2000 6~50 LBS or spiral groove
left or right 300 800 20 LBS
left or right 350 900 21.5 LBS
right 450 1100 22 LBS



Product Structure:

Integral rope groove drum: rope drums with grooves cut directly into them (with or without bolted or welded flanges, as required).Winch drum with flange, the LBS groove is cut directly into the body of the drum, according to customers’ requirements, the flanges are either welded or screw-bolted. groove geometry is determined by rope construction, diameter and length, and by application. the drum has the required mounting dimensions for the actual operating.

Product Application:

1. Crane machinery: The bridge lifting machine, Tower crane, Gantry crane,Crawler crane winch
2. The petroleum industry: Oil drilling rig, Petroleum tractor hoist, Petroleum workover rig, Trailermounted pumping unit winch , Logging winch, etc
3. Offshore Marine machinery: Offshore petroleum crane winch, Mooring winch, Traction winch, Man-riding winch, Anchor winch, Hydrologic winch
4. The construction machinery: Building wipe wall winch, Winding hoist, Windlass
5. Engineering machinery: Cable winch, Tower crane, Piling machine, Hydraulic winch
6. Mining winch: Dispatching winch, Prop-pulling winch,Sinking winch, etc

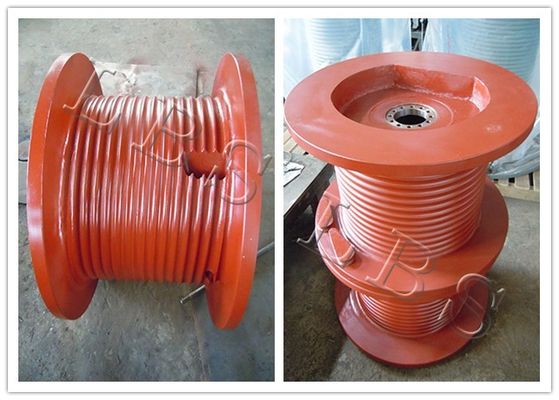

D-DN19 Model LBS Grooved Drum , Wire Rope Hoist Drum For Hoisting 0

D-DN19 Model LBS Grooved Drum , Wire Rope Hoist Drum For Hoisting 1
