Stainless Steel or Carbon Steel Offshore Winch Small Size Manual Driven

Stainless Steel or Carbon Steel Offshore Winch Small Size Manual Driven
Stainless Steel or Carbon Steel Offshore Winch Small Size Manual Driven Stainless Steel or Carbon Steel Offshore Winch Small Size Manual Driven Stainless Steel or Carbon Steel Offshore Winch Small Size Manual Driven Stainless Steel or Carbon Steel Offshore Winch Small Size Manual Driven

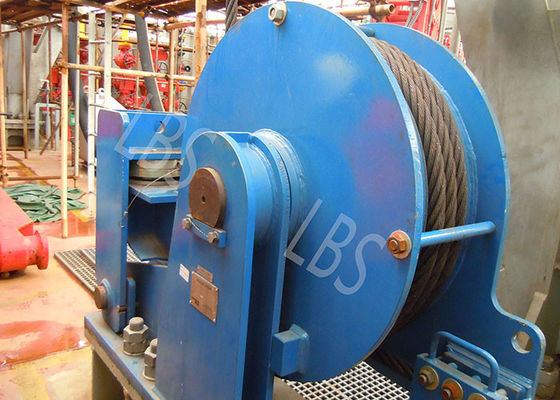

Large Image :  Stainless Steel or Carbon Steel Offshore Winch Small Size Manual Driven

Product Details:
Place of Origin: HEBEI PROVINCE ,CHINA
Brand Name: LBS
Certification: SGS ISO
Model Number: LBSHW
Payment & Shipping Terms:
Minimum Order Quantity: 5 sets
Price: Negotiation
Packaging Details: wooden box or as your require
Delivery Time: 10-15 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 1000 sets per month
Detailed Product Description
Material: High Strength Steel Color: Bule Or As Your Require
Galvanized: Yes Customization: Yes
Driven: Manual
High Light:

oil winch

,

mine winches

Title:Cuatomization Small Size Hand-Operated Winch and Manual Winch




Product Specifications:

Model 1200LBS 1800LBS 2600LBS
Safe working load 1200 1800 2600
Test load (kn) 8 13 18
Gear ratio 4:2:1 5:1 10:1
A Dimensions(mm) 156 203 216
B Dimensions(mm) 184 256 293
C Dimensions(mm) 88 107 127
D Dimensions(mm) 210 319 319
E Dimensions(mm) 27 27 27
F Dimensions(mm) 272 283 305
G Dimensions(mm) 51 60 63
H Dimensions(mm) 109 109 109
Net weight(kg) 3.7 7.7 10.1
Volume (cm) 16x16x22 35x20x23 35x24x24



Breif introduction:

  • The hand winch, also known as the manual winch.It is a mechanical tool. People pull the reel by hand to tow or pull the cargo.
  • It is made of high-strength steel with good corrosion resistance and it is equipped with a rope for mounting a fixed hanger.
  • compact and strong structure, light weight, built-in mechanical parts for easy maintenance.
  • It has a automatics brake device,which make it safe.

Product features:

  • compact,light weight and rugged construction
  • mechanical components enclosed for protection
  • the cost-effective solution for a wide variety of applications,brake hand winches can be used to pull or lifting loads.
  • braked enamel finished for corrosion protection.
