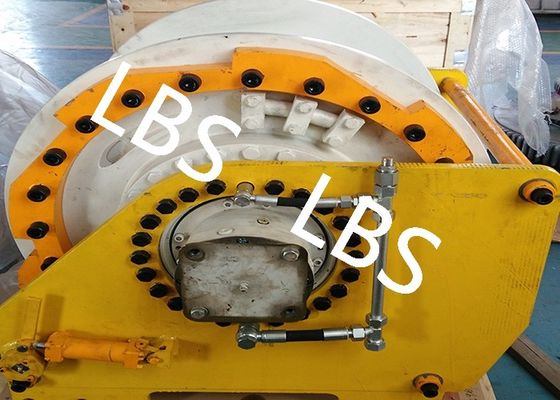

Title:Anchor Windlass for Construction Lifting & Overhead Crane for Power Station
Product brief information:
Our company have ten years experience to produce winches and winch drum, the dispatching winch is mainly used in hauling or wagons and other auxiliary handling work in small mine and underground mine yard. It can also be used in ground handling of auxiliary material in mining and metallurgical fields.
- Dispatching winch includes drum,brake device,motor,planetary gear transmission and frame.
- The reduction mechanism of the winch adopts two sets of internal gear transmission pairs and a set of planetary gear system, two sets of internal gear pairs are installed in the drum body, the shaft end of the motor is equipped with casing gear directly into the drum,and rolling bearings are used in each rotation of the winch.
Rotation Direction: Left or Right(as require)
Wire Rope Diameter: 3 MM~190 MM
Ropr capacity:100-10000M
Processing equipment: CNC machining center

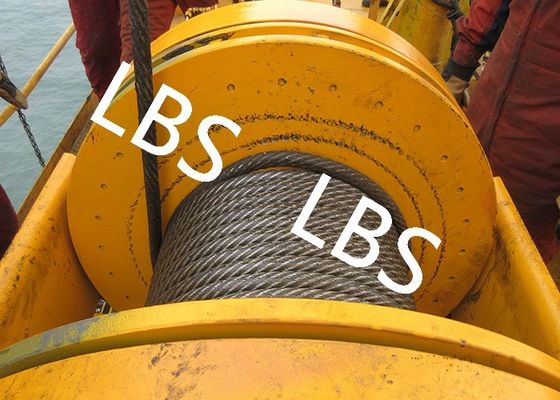

Durm Type: LBS spooling system - based on the unique geometry of the drum groovingWinch
winch weight:1200kg
winch size: 1435x1217x1242 mm
| Name: |
dispatching winch |
wire rope tension: |
30kn |
| drum diameter: |
310mm |
drum length: |
400mm |
| rope speed: |
1.4m/s |
motor model: |
YBJ25-4 |
Product Application:
1. Crane machinery: The bridge lifting machine, Tower crane, Gantry crane,Crawler crane winch
2. The petroleum industry: Oil drilling rig, Petroleum tractor hoist, Petroleum workover rig, Trailermounted pumping unit winch , Logging winch, etc

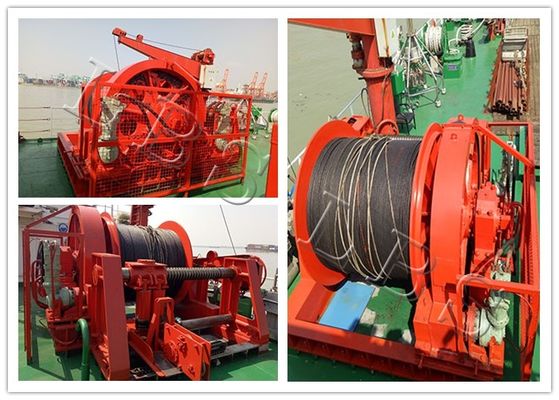

3. Offshore Marine machinery: Offshore petroleum crane winch, Mooring winch, Traction winch, Man-riding winch, Anchor winch, Hydrologic winch
4. The construction machinery: Building wipe wall winch, Winding hoist, Windlass
5. Engineering machinery: Cable winch, Tower crane, Piling machine, Hydraulic winch
6. Mining winch: Dispatching winch, Prop-pulling winch,Sinking winch, etc
Product Material:
Carbon steel, alloy steel, cast steel, aluminum, all kinds of high-strength steel Q345, Q420, Q460, 15CrMo,20GrMo, 42GrMo, etc
Material standards: GB, AISI, ASME, ASTM, JIS DIN, NF, BS, EN ...
Classification societies certified: DNV, ABS, GL, LR, BV, CCS, RINA, NK, KR ...
LBS Products Drum Feature:
- Compact structure and reasonable design
- Safe and reliable function
- Highly efficient, constant operating torque motor.
- Smooth running over the entire speed range.
Package and delivery:
packed by standard wooden case
It takes about 20 work days to arrange production.
FAQ:
|
Q1:What's your terms of payment?
A. T/T 50% deposit and 50% before delivery. we will show you the photos of products and packages before your pay the balance.
|
|
Q2:What's your terms of delivery?
A. EXW, FOB CIF CFR etc
|
|
Q3:How about your delivery time?
A. Generally,it will take about 10-30 days after receive your advance payment.The specfit delivery time depends on your order.quantitty.
|
|
Q4:Can you produce according to the samples?
A. Yes, we can produce by your sample and technical drawings, we can build mold and fixtures.
|
|
Q5: What's your sample policy?
A. We can supply sample, but the customer have to pay the sample cost and courier cost.
|
|
Q6: Do you test all your goods before delivery?
A. Yes, we have 100% test before delivery.
|
