Name: | Large Winch Drum | Drum Design: | LBS Groove Or Spiral Groove |
---|---|---|---|
Material: | Carbon Salloy Steel Stainless | Size: | Customization |
OEM/ODM: | Yes | Capacity: | As Your Require |
Highlight: | hydraulic hoist and winch,hydraulic cable winch |

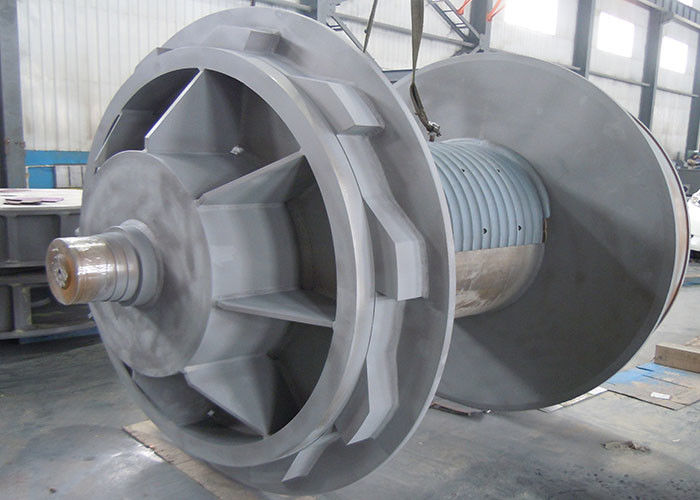

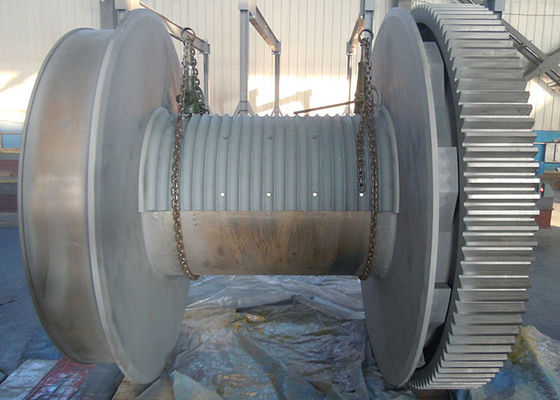

Title:Customization Large Winch Drum used for Offshore Platforma or Ship Deck
Product description:
We do produce the winch drum according to the customer's requirements. Customization need to provide the parameters as follows:
1. Diameter of drum: 100mm-10000mm
2. drum quantity: single drum or double drum
3. width between the fanges
4. drum capacity: 30m-10000m
5. grooving type: LBS groove or spiral groove
6. wire rope diameter/ cable diameter: 10mm-150mm
7.rotation direction: right or left
7. Pls provide the detailed drawing if possible
Drum features:
1. unique LBS groove assists with wire rope spooling
2. Marine grade paint provides superior corrosion resistance
3. safe and reliable function
4. reasonable design and compact structure.
Techinical parameters:
Layers | First layer pull force (kn) | Drum size | Groove type |
2 layers | 30 | Φ300X450 | LBS |
3 layers | 50 | Φ350X500 | LBS or spiral |
3 layers | 60 | Φ400X600 | spiral or LBS |
4 layers | 70 | Φ600X680 | LBS or spiral |
4 layers | 80 | Φ750X700 | LBS or spiral |
5 layers | 100 | Φ800X1000 | LBS or |
