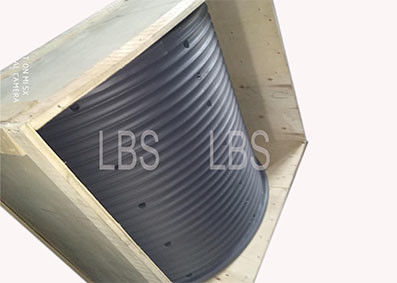

Large Scale Black Nylon Drum Sleeves And Drum Shells

Large Image : Large Scale Black Nylon Drum Sleeves And Drum Shells

Product Details:

Place of Origin:	Hebei prov，China
Brand Name:	LBS
Certification:	ISO9000 GJB
Model Number:	DN14.5-D850-L1250

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	based on material and demensions
Packaging Details:	standard export case
Delivery Time:	25-30 work days after received payments
Payment Terms:	T/T, Western Union
Supply Ability:	250 sets per month

Contact Now

Detailed Product Description

Name:	Drum Sleeves And Drum Shells	Material:	Nylon Or Steel
Groove:	Helical Or LBS	Processing Equipemnt:	CNC Center
Color:	Red Beige Or Black	Designe:	Yes
Highlight:	rope winch drum , electric hoist winch

Title:Large-Scale Black Nylon Drum Sleeves and Drum Shells for Winch

Important details:

the drum sleeves ’design based on your drum’s technical parameters as following:

1. rotation direction

2. wire rope diameter and length

3. drum outer diameter and width between the fanges

4. groove type:helical and LBS

5. assembly type: bolted or plug weld

Techinical details:

about size	provide all sizes of drums and sleeves
groove pitch	based on your wire rope/cable diameter
about flanges	the drum flanges must be perpendicular to the drum barrel at all times,even under loaded conditions.
fleet angle	the fleet angle must be kept between 0.25°-1.25°

Our advantages:

1. Our products have been exported to overseas for many years.

2. We obtain domestic and foreign customers alike with product’s good quality and well-designed sevice.

3. We can manufacture groove pitch according to your wire rope diameter.

4. Design service and customization service.

Large Scale Black Nylon Drum Sleeves And Drum Shells 0

Large Scale Black Nylon Drum Sleeves And Drum Shells 1
