|Name:||Hoist Drum||Groove Type:||LBS|
|Rotation Direction:||Right||Rated Rope Capacity:||500m|
|Number Of Layers:||6 Layers||Rope Diameter:||13mm|
|Pull Force:||25000N||Drum Construction:||Customization|
wire rope drum,
lebus grooved drum
Title:Export Russia Hoist Drum/Wire Rope Winch Drum Comply with GOST
|Duty cycle according to ISO4301/1||M4/L3/T4|
|Rated line pull,N||25000|
|Rated rope capacity,m||500|
|Drum construction||built-up drum with screws|
|Direction of grooves||right|
|Number of layers||6|
Rapid customization need provide parameters:
1.rope capacity and rope diameter
2.drum diameter and the width between the flanges.
4.direction of groove

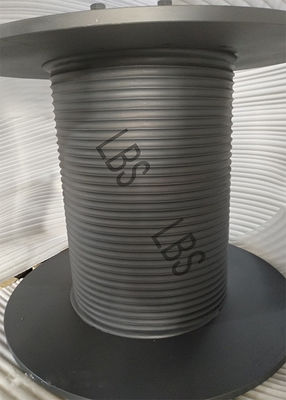

1.the wire rope drum has LBS groove to ensure uniform laying of each lap.
2. the drum flanges will rise over the upper layer of spooled rope not less than two diameters of the upper layer.
3.The drum will be equipment with blocks to fix the wire rope.
4.the outside surface of the drum will be coated with weatherproof primes to protect the drum during transport and storage.
Integral rope groove drum: rope drums with grooves cut directly into them (with or without bolted or welded flanges, as required).Winch drum with flange, the LBS groove is cut directly into the body of the drum, according to customers’ requirements, the flanges are either welded or screw-bolted. groove geometry is determined by rope construction, diameter and length, and by application. the drum has the required mounting dimensions for the actual operating conditions.
1. Crane machinery: The bridge lifting machine, Tower crane, Gantry crane,Crawler crane winch
2. The petroleum industry: Oil drilling rig, Petroleum tractor hoist, Petroleum workover rig, Trailermounted pumping unit winch , Logging winch, etc
3. Offshore Marine machinery: Offshore petroleum crane winch, Mooring winch, Traction winch, Man-riding winch, Anchor winch, Hydrologic winch
4. The construction machinery: Building wipe wall winch, Winding hoist, Windlass
5. Engineering machinery: Cable winch, Tower crane, Piling machine, Hydraulic winch
6. Mining winch: Dispatching winch, Prop-pulling winch,Sinking winch, etc
