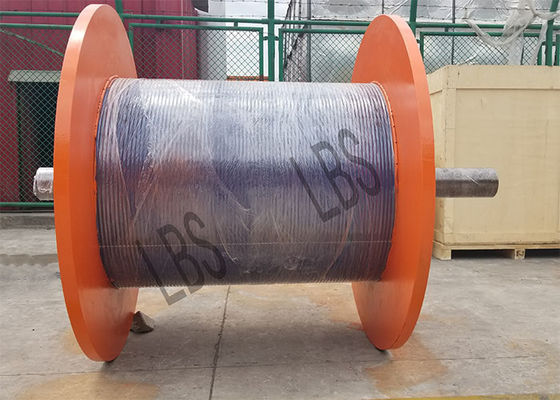

Marine Steel Offshore Winch Drum 4 Or 5 Layeres With 1320mm Length

Title:Drum with Connection Shaft / Offshore Winch Drum/Marine Steel Winch Drum

Product introduction:

1.The winch drum is composed of drum body,flanges,connection shaft and fixing rope device.

2.Besides,in the bottom of the flanges,there is a end-filler,which guides the rope into second layer.

3.The width between the flanges must be an integral multiple of pitch.

4. Machining range of drums:3mm-10000mm

Advantages of LBS grooved drum:

1.This special groove can make spooling more stable and orderly and improve winch security controllability.

2.To reduce the mess problem in the process of spooling or winding

3.To incraes the service life of wire rope

Product application:

1.offshore marine machinery : offshore oil crane winch. Mooring winch.traction winch. Man-riding winch. Anchor winch

2. engineering machinery: cable winch/ tower crane/pile driver/hydraulic winch

3.Oil industry: oil drilling rig/ oil workover rig/

4.building machinery/construction machinery: wipe wall winch/winding hoist/windlass

5.mining winch: dispatching winch/ traction winch/ sinking winch

6.hoist machinery: bridge crane/tower crane/portal crane/crawling winch

After-sales Service

1. Provide technical advice during installation process;

2. In warranty period, if a quality-related problem occurs in normal use, please send a written description of the problem to us. We will respond within 24-48 hours.

3. Even if the warranty has expired, we are still glad to solve problems that are not due to improper use for you. All repairs will be billed at cost, and for long term, we supply spare parts at favorable price.

The related products:

The whole drum can be split into two parts or four parts  from the middle--we call it split sleeves.

The customer can install directly the sleeves on the drum body by welding or bolts.

It is a effective and economical menthod for customer .Using it,you only need to install a slleves on your plain drum rather than buying a new grooved drum.

Application conditions:

• the split-type LBS groove generally can be mounted on a smooth, grooveless drum-for for retrofit or where the drum needs to be replaced.
• The split -type sleeve system consists of a pair of outer casings that are bolted or assembled on a smooth light cylinder, so that the outer surface of the cylinder becomes a grooved form, and the split sleeve is composed of a spiral groove and a parallel groove, and the groove is formed. The design conforms to the specific rope structure, diameter and length.

  ---



•
