Customized Design Steel Hoist Drum Grooved Sleeves / Wire Rope Sleeve

Large Image : Customized Design Steel Hoist Drum Grooved Sleeves / Wire Rope Sleeve

Product Details:

Place of Origin:	Hebei，China
Brand Name:	LBS
Certification:	DNV, ABS, GL, LR, BV, CCS, RINA, NK,
Model Number:	Custom design

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Export standard wooden case
Delivery Time:	20 to 30 work days, depends on order amount and specification
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	1000 Pieces/Sets Per Month

Contact Now

Detailed Product Description

Port:	Tianjin China	Grooving Type:	LBS Groove、Spiral Cable Groove
Sling Type:	Steel Wire Rope Or Cable	Color:	According To Customer Demand
Product Condition:	Fully Machined	Material:	Carbon Steel Or Others
High Light:	lebus groove , drum sleeve

Customized design Steel Large Diameter Hoist Drum Grooved Sleeves

Product specifications:

1) Wire rope or cable diameter (mm)
2) The main drum diameter (mm)
3) Width between flanges (mm)
4) Length of rope or cable to be accommodated
5) Material and requirements of the drum
6) Maximum operating load on rope or cable
7) Direction of wire rope entry
8) Type of rope entry
9) Distance to fixed sheave and position between flanges
10) Outside diameter of flanges

Processing equipment:

CNC machining center

Product material:

1. Carbon structural steel: Q235A/B/C/D/E SS400 A36 SM400 St37-2 S235J...
2. Low alloy high strength steel: Q345A/B/C/D/E Q390 Q420 Q460 15GrMo 20GrMo 12GrMoVNi 42GrMo...
3. Alloy structural steel: 20Mn2 40Mn2 15Cr 30Cr 20CrMnMo 20CrNi...
4. Polymer materials, fiber materials and polyamide nylon materials.
5. Stainless steel materials, aluminum materials, etc.
The product material can be selected according to the customer's request

Product application:

1. The petroleum industry: oil drilling rig, petroleum tractor hoist, petroleum workover rig, trailermounted pumping unit winch , etc
2. Crane machinery: the bridge lifting machine, tower crane
3. The hoist: building wipe wall machine, winding machine
4. Engineering machinery: tower crane, piling machine
5. Marine machinery: offshore petroleum crane winch, drawworks and hoist

Product structure:

Split wire rope groove sleeve: grooved split sleeves can be placed over smooth and ungrooved drums – suitable for modification or replacement of drum. Split-sleeve system consists of a pair of outer shells that are bolted or welded onto a smooth drum to provide a grooving pattern,The split sleeve is composed of spiral groove and parallel groove,the groove design conforms to the specified wire rope structure, diameter and length.

Product installation and Application:

1) the LBS rope groove sleeve is divided into two parts, which are made up of integral rope grooved drum. It needs to be used in pairs;

2) the LBS grooves can be mounted on smooth, grooveless drums or on winch drums with spiral grooves, It is suitable for the application of refitting or changing the drum.

3) The LBS rope grooved sleeves is installed on the winch barrel through bolt connection or group welding connection.

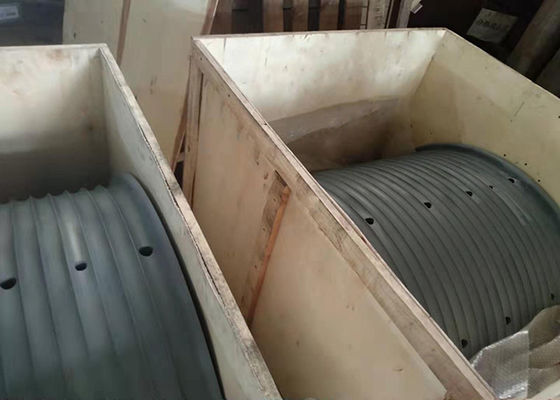

Customized Design Steel Hoist Drum Grooved Sleeves / Wire Rope Sleeve 0

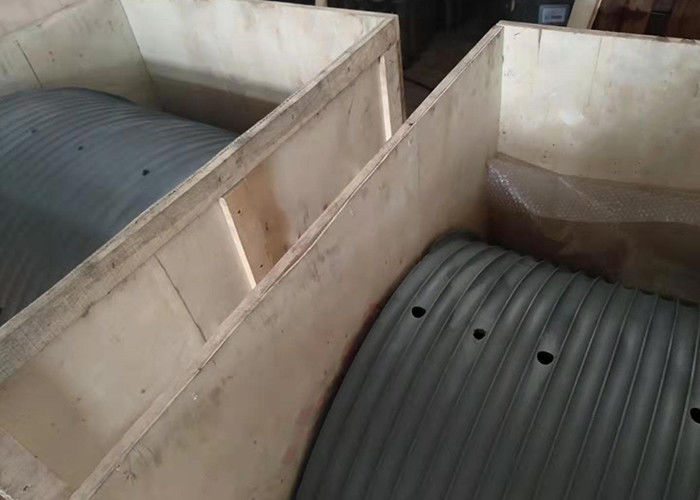

Customized Design Steel Hoist Drum Grooved Sleeves / Wire Rope Sleeve 2
