| Product Feature: | Low Noise ,even Distribution,move Sooth | Power: | Hydraulic Or Electric |
|---|---|---|---|
| Sling: | Wire Or Cable | Rope Speed: | 0-40m/min |
| Drum Groove: | LBS Groove | First Pulling Force: | 0.5-20MT |
| Rope Capacity: | 100-10000m | Position: | As You Want |
| Product Name: | Used Marine Winch Windlass | Input Rotation Speed: | 2000 Rpm |
| Sling Type: | Steel Wire Rope | ||
| High Light: | hydraulic hoist winch,hydraulic hoist and winch |
||

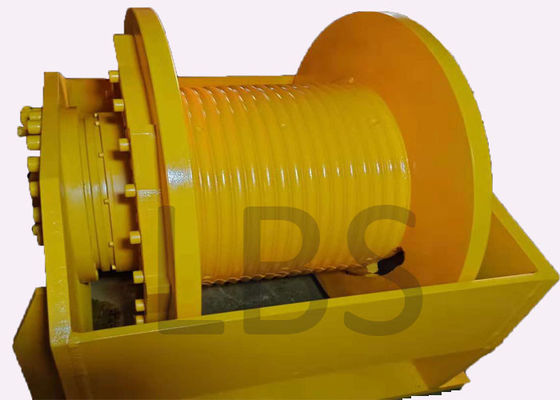

LBS Brand Marine 14mm Dia Wire Rope Hydraulic Winch with Special Groove
Brief view :
Product name: windlass winch
Durm type :smooth or LBS groove
Sling type:wire or cable
Power:electric
Application:Oil, Marine And Geological Exploration
Function:pulling,pushing ,lifting ,hoisting ,fixed
Feature:low noise ,even distribution,move sooth
Thchnical parameters:
| model | number of layers | pull force KN |
rope speed m/min |
rope capacity m |
total displacement ml/r |
differences of working pressure Mpa |
steel wire diameter mm |
hydraulic motor | ratio |
| LBS20 | 1/2/3 | 20/15/12 | 75/81/88 | 100/120/150 | 1195 | 20 | 14 | A2FE45/6.1W-VZL10 | 26.5 |
| LBS30 | 1/2/3 | 30/25/20 | 70/75/85 | 100/120/150 | 2095 | 20 | 14 | A2FE45/6.1W-VZL10 | 37.4 |
| LBS40 | 1/2/3 | 40/34/28 | 27/32/38 | 17/40/65 | 3510 | 20 | 16 | A2FE45/6.1W-VZL10 | 78 |
| LBSD50 | 1/2/3 | 50/43/35 | 27/32/38 | 17/40/70 | 4368 | 20 | 16 | A2FE45/6.1W-VZL10 | 78 |
| LBSD60 | 1/2/3 | 60/50/40 | 40/45/52 | 34/74/110 | 6320 | 20 | 20 | A2FE45/6.1W-VZL10 | 79 |
| LBSD80 | 1/2/3 | 80/70/60 | 35/40/47 | 34/74/110 | 7360 | 20 | 20 | A2FE45/6.1W-VZL10 | 92 |
| LBSD100 | 1/2/3 | 100/85/72 | 34/39/45 | 20/50/80 | 11342 | 22 | 26 | A2FE45/6.1W-VZL10 | 105.5 |
| LBSD120 | 1/2/3 | 120/105/95 | 30/34/40 | 50/104/150 | 17760 | 25 | 30 | A2FE45/6.1W-VZL10 | 110.9 |
| LBSD150 | 1/2/3 | 150/130/110 | 41/41/48 | 50/104/150 | 24000 | 25 | 30 | A2FE45/6.1W-VZL10 | 149.9 |
| LBSD180 | 1/2/3 | 180/160/145 | 30/33/37 | 60/132/200 | 31320 | 25 | 36 | A2FE45/6.1W-VZL10 | 173.9 |
| LBSD200 | 1/2/3 | 200/185/160 | 26/29/33 | 60/132/200 | 38700 | 25 | 36 | A2FE45/6.1W-VZL10 | 215 |
Parts of model as follow:can design as customer
| Name | Shipyard Windlass Winch |
| Maximum Reel Weight: | Approx 65Ton |
| Reel speed: | Approx 1-6 rpm |
| Maximum Reel Width: | 2.27m |
| Minimum Reel Windth: | 1.17m |
| Maximum Reel Diameter: | 3.0m (Flange Diameter) |
| Overall Dimensions of machine: | L4.68m x W2.3m x H3.2m |
| Pedestal Dimensions: | L4.83m x W2.5m |
| Tension (back force) on cable: | Approx 100KN |
| Tension (back force) on cable at 1st layer: |
Approx 50KN |
Our services
1. One Year Quality Assurance
2. Free Components for replacement within warranty period
3. Professional solution provider
4. Free techinical support at anytime
5. Marine winch,electric anchor winch, hand winch ,hydraulic winches ,windlass,capstan and outfitting can be designed
FAQ:
|
Q1:What's your terms of payment? A. T/T 50% deposit and 50% before delivery. we will show you the photos of products and packages before your pay the balance. |
|
Q2:What's your terms of delivery? A. EXW, FOB CIF CFR etc
|
|
Q3:How about your delivery time? A. Generally,it will take about 10-30 days after receive your advance payment.The specfit delivery time depends on your order.quantitty. |
|
Q4:Can you produce according to the samples? A. Yes, we can produce by your sample and technical drawings, we can build mold and fixtures.
|
|
Q5: What's your sample policy? A. We can supply sample, but the customer have to pay the sample cost and courier cost.
|
|
Q6: Do you test all your goods before delivery? A. Yes, we have 100% test before delivery.
|
