Wire Rope Hoist Drum

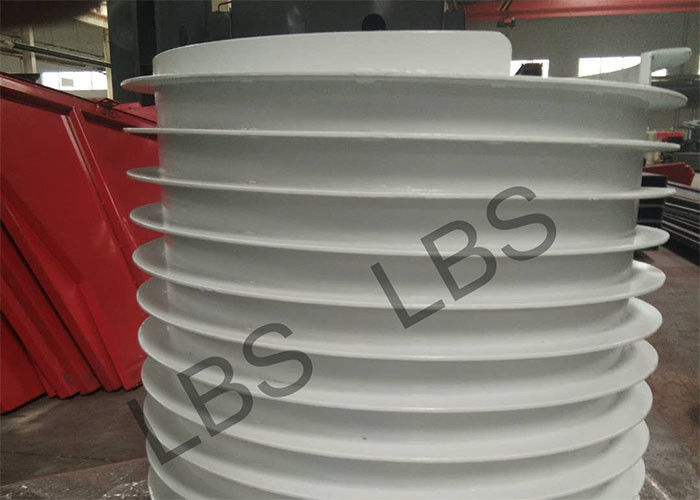

Large Image : Wire Rope Hoist Drum

Product Details:

Place of Origin:	CHINA
Brand Name:	LBS
Certification:	ISO BV GJB
Model Number:	LBS-D

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	USD 2000-20000 PER SET
Packaging Details:	WOODEN CASE
Delivery Time:	5-8 WORK DAYS
Payment Terms:	T/T, Western Union
Supply Ability:	500 SETS PER MONTH

Contact Now

Detailed Product Description

Material:	Steel And Carbon Steel	Finish:	Galvanized Or Painted
Process:	CNC Center	Groove:	Tranditional Helical Or Smooth
Rope:	3-100mm	Size:	500mm Long And 425mm Diameter
Groove Pitch:	Based On The Rope Diameter	Customized:	Yes
Design:	YES
High Light:	wire rope drum , anchor winch drum

Title:LBS Large Groove Diameter Wire Rope Hoist Drum with Best Price in Asia, Europe,South Africa

The LBS large groove diameter wire rope drum has some techinical parameters which need to be provided by customer who want to customize.

Name	Rope diameter	Diameter of Flanges	Drum diameter	winding layer
LBSD-DN12-L500	12mm	700mm	450mm	multilayer
LBSD-DN14-L570	14mm	720mm	500mm	multilayer
LBSD-DN20-L630	20mm	680mm	420mm	multilayer
LBSD-DN16-L1100	16mm	1240mm	800mm	multilayer
LBSD-DN9.6-L900	14mm	845mm	628mm	multilayer
LBSD-DN26-L1250	26mm	1100mm	750mm	multilayer

Pls provide the details such as Rope diameter/ width between the flanges/ drum diameter/ rope length/ number of layers and so on.

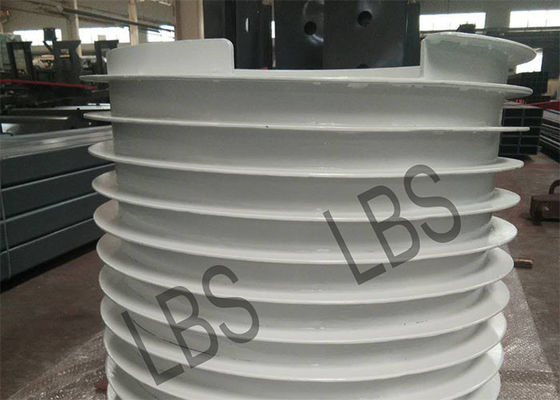

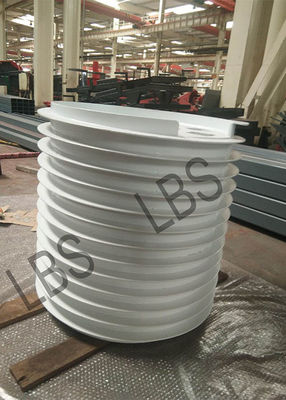

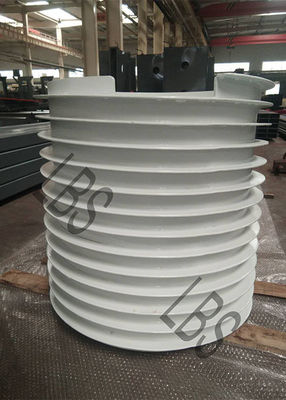

Wire Rope Hoist Drum 0 Wire Rope Hoist Drum 1 Wire Rope Hoist Drum 2
