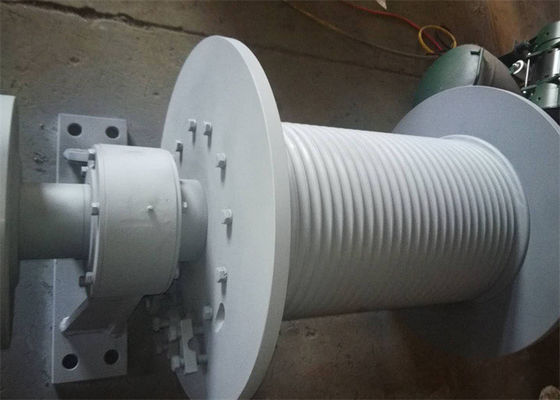

Pulling Winch LBS Grooved Drum With Bearing Can Be Customized
LBS system is still the most effective and perfect method to prolong the life of wire rope. Tests have shown that the use with Wire rope specifications match the rope groove,LBS drum can prolong the life of wire rope more than 500%.
LBS rope groove makes the load evenly distributed between layers, and the practice proves that it greatly prolongs the life of wire rope. In fact, the test surface can extend wire rope life by more than 500%. Reducing wire rope damage increases safety and reduces machine downtime.
|name||LBS grooved drum|
|rotation direction||lefthand or righthand|
|wire rope diameter||3mm-190mm|
|processing equipment||CNC machining center|
|drum type||LBS spooling system-based on unique geometry of the drum grooving|
|ceertified||DNV, ABS, GL, LR, BV, CCS, RINA, NK, KR|
1. Crane machinery: The bridge lifting machine, Tower crane, Gantry crane,Crawler crane winch
2. The petroleum industry: Oil drilling rig, Petroleum tractor hoist, Petroleum workover rig, Trailermounted pumping unit winch , Logging winch, etc
3. Offshore Marine machinery: Offshore petroleum crane winch, Mooring winch, Traction winch, Man-riding winch, Anchor winch, Hydrologic winch
4. The construction machinery: Building wipe wall winch, Winding hoist, Windlass
5. Mining winch: Dispatching winch, Prop-pulling winch,Sinking winch, etc
6. Engineering machinery: Cable winch, Tower crane, Piling machine, Hydraulic winch
Technical parameters and application:
|No:||Wire diameter(mm):||Rotation direction||Main drum|
|Main drum length(mm)||Application|
|1||8 10 13||Lefthand,Righthand||430||763||The oil workover rig winch,|
|2||13 18 20||Lefthand,Righthand||623||1144||Engineering winch,|
Lifting winch,Crawler crane
|3||22 25 26||Lefthand,Righthand||730||1220||Oil workover rig ,|
|4||18 22 32||Lefthand,Righthand||670||1240||Drilling Rig Winch, drawworks|
|5||28 32 36 40||Lefthand,Righthand||560||630||Rotating Drilling Rig winch,|
|6||26 28 32 45||Lefthand,Righthand||760 1146||1970 1765|
Marine crane,Mooring winch
LBS grooved drum, solved the problem of wire rope spooling.
Compared with ordinary cordless groove (smooth) drum and helical rope groove drum, LBS rope groove has obvious advantages in the multi-layer wire rope spooling, LBS special groove system makes the spooling of wire rope smooth, and the load of each layer evenly distributed, extend the service life of rope, reduce the wire rope damage, improves the safety of the operation of the equipment, and reduces the problem of mechanical equipment shutdown for changing rope.
