Diameter 48mm Lebus Rope Grooves Machined In Crane Winch Drum

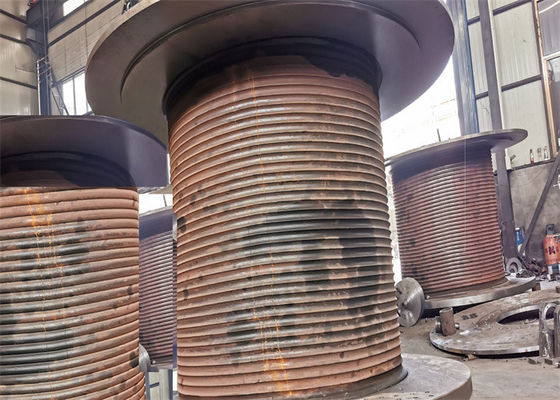

Large Image : Diameter 48mm Lebus Rope Grooves Machined In Crane Winch Drum

Product Details:

Place of Origin:	Hebei China
Brand Name:	LBS
Certification:	DNV, ABS, GL, LR, BV, CCS, RINA, NK,
Model Number:	Custom design

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Export standard wooden case
Delivery Time:	20 to 30 working days, depends on order amount and specification
Payment Terms:	L/C, T/T
Supply Ability:	1000 Pieces/Sets Per Month

Contact Now

Detailed Product Description

Name:	LBS Grroved Drum	Grooving Type:	LBS Groove
The Material:	Steel	Product Condition:	Fully Machined
Drum Diameter:	More Than 2000mm	Warranty:	1 Year
Wire Rope Diameter:	48mm	Processing Equipment:	CNC Machine
High Light:	grooved lebus drum , steel lebus drum , diameter 48mm rope lbs grooved drum

Diameter 48mm Lebus Rope Grooves Machined In Crane Winch Drum

Product introduction

Product Introduction
Grooved Winch Drum Material: Carbon Steel, Alloy Steel, Stainless Steel, Aluminum, High-Strength Steel, Etc
Material Standards: GB, AISI, ASME, ASTM, JIS, DIN, ...
Ambient Temperature: -40 ° C To +45 ° C
Stroage Ambient Temperature: -40 ° C To +50 ° C
Groove Type of Drum: Spiral Grooves or Lebus Grooves
The Rotation Direction of The Drum: Lefthand or Righthand
Processing method: Machine Work
Wire Rope Diameter: 3 MM~100 MM
Processing Equipment: CNC machining center

Technical parameters and application:

No:	Wire diameter(mm):	Rotation direction	Main drum diameter(mm)	Main drum length(mm)	Application
1	8 10 13	Lefthand,Righthand	430	763	The oil workover rig winch, Towing winch Tower crane
2	13 18 20	Lefthand,Righthand	623	1144	Engineering winch, Lifting winch,Crawler crane
3	22 25 26	Lefthand,Righthand	730	1220	Oil workover rig , Logging Winch
4	18 22 32	Lefthand,Righthand	670	1240	Drilling Rig Winch, drawworks
5	28 32 36 40	Lefthand,Righthand	560	630	Rotating Drilling Rig winch, Lifting equipment
6	26 28 32 45	Lefthand,Righthand	760 1146	1970 1765	Offshore Crane, Marine crane,Mooring winch

Product Application

Oil field industry: Oil drilling rig, Petroleum tractor hoist, Petroleum workover rig, Trailermounted pumping unit winch , Logging winch, etc

Advantage Of The LBS Grroved

This system is still the most effective and perfect method to prolong the life of wire rope. Tests have shown that the use with Wire rope specifications match the rope groove, Lebus drum can prolong the life of wire rope more than 500%.
LBS rope groove makes the load evenly distributed between layers, and the practice proves that it greatly prolongs the life of wire rope. In fact, the test surface can extend wire rope life by more than 500%. Reducing wire rope damage increases safety and reduces machine downtime.

TECHNICAL PARAMETERS PROVIDED BY CUSTOMER.doc
LBS SPECIAL GROOVE DRUM WORKING CONDITIONS.doc

Our services:

1. Engineers available to service machinery overseas.
2. Our products have one year warranty.
3. A range of accessories such as pressure rollers are available on request.
4. Except for standard winches, we’re also able to provide tailored solutions to our customers.
