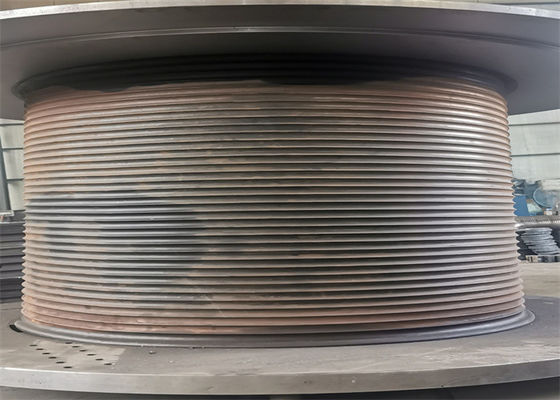

LBS Gooved Drum For Large Diameter Wire Rope Multi-Layer Winding System
Product introduction
Product Introduction
Grooved Winch Drum Material: Carbon Steel, Alloy Steel, Stainless Steel, Aluminum, High-Strength Steel, Etc
Material Standards: GB, AISI, ASME, ASTM, JIS, DIN, ...
Ambient Temperature: -40 ° C To +45 ° C
Stroage Ambient Temperature: -40 ° C To +50 ° C
Groove Type of Drum: Spiral Grooves or Lebus Grooves
The Rotation Direction of The Drum: Lefthand or Righthand
Processing method: Machine Work
Wire Rope Diameter: 3 MM~100 MM
Processing Equipment: CNC machining center
Technical parameters :
| No: |
Wire diameter(mm): |
Rotation direction |
Main drum
diameter(mm) |
Main drum length(mm) |
Application |
| 1 |
8 10 13 |
Lefthand,Righthand |
430 |
763 |
The oil workover rig winch,
Towing winch
Tower crane |
| 2 |
13 18 20 |
Lefthand,Righthand |
623 |
1144 |
Engineering winch,
Lifting winch,Crawler crane |
| 3 |
22 25 26 |
Lefthand,Righthand |
730 |
1220 |
Oil workover rig ,
Logging Winch |
| 4 |
18 22 32 |
Lefthand,Righthand |
670 |
1240 |
Drilling Rig Winch, drawworks |
| 5 |
28 32 36 40 |
Lefthand,Righthand |
560 |
630 |
Rotating Drilling Rig winch,
Lifting equipment |
| 6 |
26 28 32 45 |
Lefthand,Righthand |
760 1146 |
1970 1765 |
Offshore Crane,
Marine crane,Mooring winch
|
Product Application
Oil field industry: Oil drilling rig, Petroleum tractor hoist, Petroleum workover rig, Trailermounted pumping unit winch , Logging winch, etc
Advantage Of The LBS Grroved
This system is still the most effective and perfect method to prolong the life of wire rope. Tests have shown that the use with Wire rope specifications match the rope groove, Lebus drum can prolong the life of wire rope more than 500%.
LBS rope groove makes the load evenly distributed between layers, and the practice proves that it greatly prolongs the life of wire rope. In fact, the test surface can extend wire rope life by more than 500%. Reducing wire rope damage increases safety and reduces machine downtime.
TECHNICAL PARAMETERS PROVIDED BY CUSTOMER.doc
LBS SPECIAL GROOVE DRUM WORKING CONDITIONS.doc
Successful cases
our production of lebus grooved drum, and winch rope groove plate assembly, now widely used in petroleum machinery, mining machinery, ships, ports, lifting machinery, lifting machinery, etc., and with daqing oilfield, shengli oilfield, dagang oilfield, zhongyuan oilfield, liaohe oilfield oilfield, nanyang oil factory, big companies such as sany, established a long-term, stable relations of cooperation, Products are also exported to the United States, Canada, Brazil and so on. Our factory can design and manufacture various specifications of folding rope groove tube, rope groove plate and winch according to the requirements of users, but also can provide on-site installation
