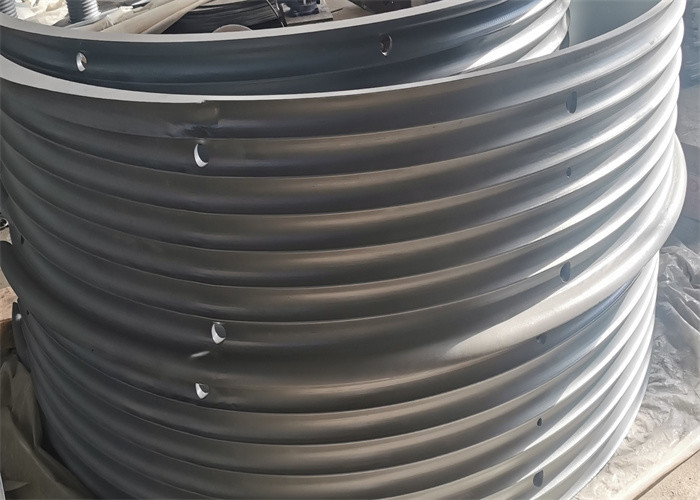

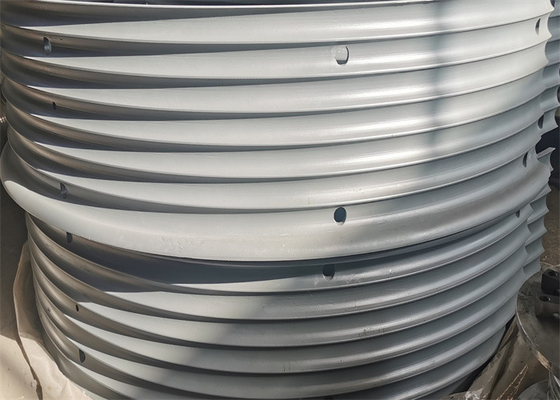

Winch Drums Lbs Sleeves Alloy Steel Material With Lebus Grooves

Winch Drums Lbs Sleeves Alloy Steel Material With Lebus Grooves
Winch Drums Lbs Sleeves Alloy Steel Material With Lebus Grooves Winch Drums Lbs Sleeves Alloy Steel Material With Lebus Grooves

Large Image :  Winch Drums Lbs Sleeves Alloy Steel Material With Lebus Grooves

Product Details:
Place of Origin: Hebei China
Brand Name: LBS
Certification: DNV,ABS,GL,LR,BV,CCS,RINA,NK
Model Number: LBS-Custpm design
Payment & Shipping Terms:
Minimum Order Quantity: 1 vset
Price: USD 500-3000 /set
Packaging Details: export wooden case
Delivery Time: 10-15 days
Payment Terms: T/T, Western Union
Supply Ability: 200 sets per month
Detailed Product Description
Name: LBS Sleeves With Lebus Grooves Material: Alloy Steel
ODM: Yes Customization: Yes
Installation: Bolted Or Plug Welding Processing Equipment: CNC
Type: Split Type Groove Type: Lebus Groove
High Light:

winch drums lbs sleeves

,

alloy steel lbs sleeves

,

grooved lbs sleeves

Alloy Steel Metrail Winch Drum Sleeves With Lebus Grooves



Product include:

  • Sleeves are used to prevent damage to a drum.
  • It is usually cheaper to replace a worn out sleeve instead of replacing or repairing the complete drum assembly. That is why grooved sleeves have become so popular.
  • The LeBus Grooving System involves a product made specifically for use on any or all types of hoisting drums requiring the use of wire rope or electro-mechanical cable.
  • The LeBus grooves are made for the purpose of properly seating a specified size of wire rope and the proper movement of and spacing of the cable from flange to flange.
  • The material is supplied in cylindrical form, either from steel, fiberglass, or aluminum to fit over any existing or new drum core.

The LBS split-sleeve system is composed of a pair of outer shells that are bolted or welded onto a smooth drum to provide agrooving pattern.Either helical or LBS parallel grooves can be carved into the sleeves.

If the customer need split-sleeves, please provide us with more parameter details as follows:

1. about grooving helical or LBS grooving
2. drum diameter and length the sleeve must according to the drum parameter
3. rope diameter and length the grooving desiged by the rope parameter
4. Material your required material
5. installation bolted or welding
6. more information the detailed drawing if possible





Technical parameters and application:

No: Wire diameter(mm): Rotation direction Main drum
diameter(mm)
Main drum length(mm) Application
1 8 10 13 Lefthand,Righthand 430 763 The oil workover rig winch,
Towing winch
Tower crane
2 13 18 20 Lefthand,Righthand 623 1144 Engineering winch,
Lifting winch,Crawler crane
3 22 25 26 Lefthand,Righthand 730 1220 Oil workover rig ,
Logging Winch
4 18 22 32 Lefthand,Righthand 670 1240 Drilling Rig Winch, drawworks
5 28 32 36 40 Lefthand,Righthand 560 630 Rotating Drilling Rig winch,
Lifting equipment
6 26 28 32 45 Lefthand,Righthand 760 1146 1970 1765

Offshore Crane,
Marine crane,Mooring winch







Product application:

As LBSS series winch grooved sleeves have the above characteristics, it has wide application range.It can be applied in the aviation, shipbuilding,offshore crane industry, oil field, coal,port marine platform,construction,railway and other heavy machinery field.



About company:

Early introduction the advanced technics form domestic and foreign,after years R&D,our company had a major breakthrough in lifting machinery's multilayers spooling field and obtaied the production patent of LBS groove in 2010.Meanwhile we created our brand -LBS. At the prosent, the company have formed a stable and serialized production mode.
