Lebus Cable Spooling System 3MM Rope Grooved Winch Drum For Wall Cleaning Machine

Lebus Cable Spooling System 3MM Rope Grooved Winch Drum For Wall Cleaning Machine
Lebus Cable Spooling System 3MM Rope Grooved Winch Drum For Wall Cleaning Machine Lebus Cable Spooling System 3MM Rope Grooved Winch Drum For Wall Cleaning Machine Lebus Cable Spooling System 3MM Rope Grooved Winch Drum For Wall Cleaning Machine Lebus Cable Spooling System 3MM Rope Grooved Winch Drum For Wall Cleaning Machine Lebus Cable Spooling System 3MM Rope Grooved Winch Drum For Wall Cleaning Machine

Large Image :  Lebus Cable Spooling System 3MM Rope Grooved Winch Drum For Wall Cleaning Machine

Product Details:
Place of Origin: Hebei China
Brand Name: LBS
Certification: ISO9000 BV etc
Model Number: LBS-G
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 1000-5000/set
Packaging Details: export wooden case
Delivery Time: 10-15 work days
Payment Terms: T/T, Western Union
Supply Ability: 1000 sets per quarter
Detailed Product Description
Material: Carbon Steel Or Ally Steel Or Others Key Words: Cable Spooling System
Width Between The Flanges: 1000mm Or More Oueter Of Drum: 450mm Or Customer Providing
Rope Diameter: 3mm-80mm Drum Capacity: 100-10000m
Rotation: Left Or Right Colour: Customization
Grooving Type: LBS Grooving Product Name: Lebus Cable Spooling System
Highlight:

aluminum wire rope winch drum

,

3 mm wire rope winch drum

,

wall cleaning machine grooved winch drum

Lebus Cable Spooling System Wire Rope Winch Drum For Wall Cleaning Machine



Product Introduction
Grooved Winch Drum Material: Carbon Steel, Alloy Steel, Stainless Steel, Aluminum, High-Strength Steel, Etc
Material Standards: GB, AISI, ASME, ASTM, JIS, DIN, ...
Ambient Temperature: -40 ° C To +45 ° C
Stroage Ambient Temperature: -40 ° C To +50 ° C
Groove Type of Drum: Spiral Grooves or Lebus Grooves
The Rotation Direction of The Drum: Lefthand or Righthand
Processing method: Machine Work
Wire Rope Diameter: 3 MM~100 MM
Processing Equipment: CNC machining center



Technical Parameters and Application:

No: Wire diameter(mm): Rotation direction Main drum
diameter(mm)
Main drum length(mm) Application
1 8 10 13 Lefthand,Righthand 430 763 Workover rig winch,
Towing winch
Tower crane
2 13 18 20 Lefthand,Righthand 623 1144

Engineering winch,
Lifting winch,

Crawler crane

3 22 25 26 Lefthand,Righthand 730 1220 Oil workover rig ,
Logging Winch

...... (according to the product detail application and requirement)



Product Application:

1. Crane machinery: The bridge lifting machine, Tower crane, Gantry crane,Crawler crane winch
2. The petroleum industry: Oil drilling rig, Petroleum tractor hoist, Petroleum workover rig, Trailermounted pumping unit winch , Logging winch, etc
3. Offshore Marine machinery: Offshore petroleum crane winch, Mooring winch, Traction winch, Man-riding winch, Anchor winch, Hydrologic winch
4. The construction machinery: Building wipe wall winch, Winding hoist, Windlass
5. Engineering machinery: Cable winch, Tower crane, Piling machine, Hydraulic winch
6. Mining winch: Dispatching winch, Prop-pulling winch,Sinking winch, etc



Product Advantage:

1. LBS grooved drum, solved the problem of wire rope spooling

2. Compared with ordinary cordless groove (smooth) drum and helical rope groove drum, LBS rope groove has obvious advantages in the multi-layer wire rope spooling, LBS special groove system makes the spooling of wire rope smooth, and the load of each layer evenly distributed, extend the service life of rope, reduce the wire rope damage, improves the safety of the operation of the equipment

3. reduces the problem of mechanical equipment shutdown for changing rope



Product Structure:

Integral rope groove drum: rope drums with grooves cut directly into them (with or without bolted or welded flanges, as required).Winch drum with flange, the LBS groove is cut directly into the body of the drum, according to customers’ requirements, the flanges are either welded or screw-bolted. groove geometry is determined by rope construction, diameter and length, and by application. the drum has the required mounting dimensions for the actual operating conditions

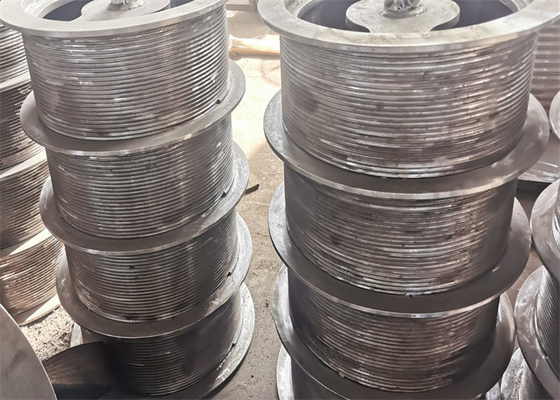

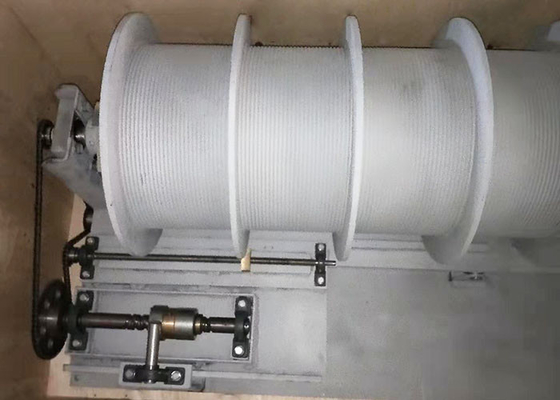

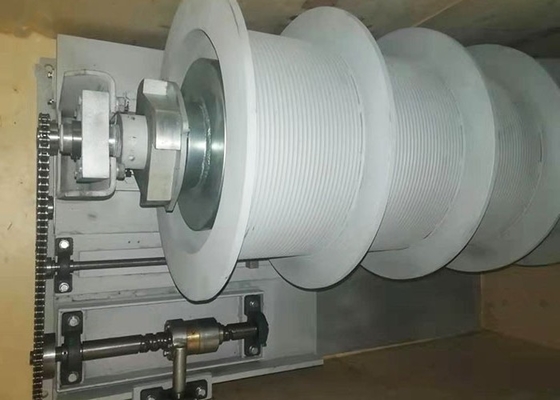

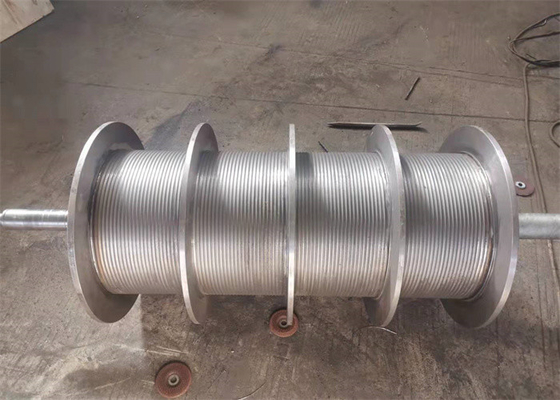

Lebus Cable Spooling System 3MM Rope Grooved Winch Drum For Wall Cleaning Machine 0Lebus Cable Spooling System 3MM Rope Grooved Winch Drum For Wall Cleaning Machine 1Lebus Cable Spooling System 3MM Rope Grooved Winch Drum For Wall Cleaning Machine 2Lebus Cable Spooling System 3MM Rope Grooved Winch Drum For Wall Cleaning Machine 3Lebus Cable Spooling System 3MM Rope Grooved Winch Drum For Wall Cleaning Machine 4
