S355j2+N Material Diameter 2960mm Wire Rope Winch Drum For Marine Equipment

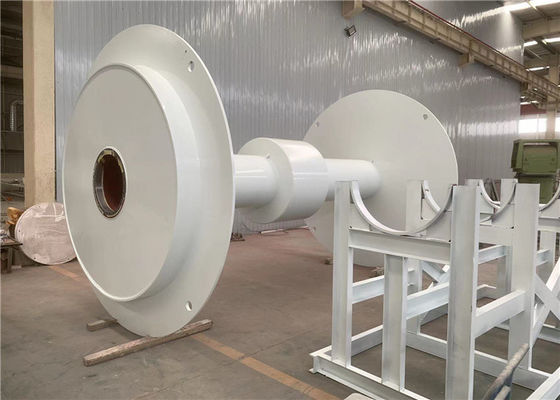

Large Image : S355j2+N Material Diameter 2960mm Wire Rope Winch Drum For Marine Equipment

Product Details:

Place of Origin:	Hebei，China
Brand Name:	LBS
Certification:	DNV, ABS, GL, LR, BV, CCS, RINA, NK,
Model Number:	Custom design

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Export standard wooden case
Delivery Time:	30 to 40 working days, depends on order amount and specification
Payment Terms:	L/C, T/T
Supply Ability:	500 Pieces/Sets Per Month

Contact Now

Detailed Product Description

Name:	Marine Offshore Winch	Material:	S355J2+N
Lghth:	6000mm	Diameter:	2960mm
Rope Capacity:	100m~10000m	Weight:	8649kg
Color:	Interthane 990 Blue White	Standard:	NS-ISO2768mK
High Light:	2960mm Wire Rope Winch Drum , 2960mm Cable Winch Drum , S355j2+N Wire Rope Winch Drum

S355J2+N Material Diameter 2960mm Rope Drum For Marine Large Quipment

product feature :

Product name:S355J2+N Material Diameter 2960mm Rope Drum For Marine Large Quipment

Other name: Winch drum.

Standard:NS-ISO 13768mK

Sling type:cable or wire

power: Electirc

colour : Blue white

Rope: 100-1000mm

Rope diameter: 3-199mm

Tolerance General: Ns-ISO 13768mK

Structural composition

Q/TY	ITEM	DESCRIPTION	TECHNICAL DESCRIPTION	MATERIAL	MASS
1	1	Plate	PL30	S355J2+N	12.11KG
1	2	Plate	PL25	S355J2+N	1281.01KG
1	3	Plate	PL25	S355J2+N	1278.71KG
1	4	Plate	PL20	S355J2+N	519.77KG
1	5	Plate	PL20	S355J2+N	483.92KG
1	6	Plate	PL20	S355J2+N	322.17KG
2	7	Plate	PL20	S355J2+N	216.29KG
1	8	Plate	PL15	S355J2+N	10.46KG
1	9	Plate	PL15	S355J2+N	23.96KG
1	10	Plate	PL15	S355J2+N	16.1KG
6	11	Plate	PL15	S355J2+N	7.53KG
1	12	Plate	PL15	S355J2+N	237.56KG
11	13	Plate	PL15	S355J2+N	14.68KG
1	14	Plate	PL10	S355J2+N	51.41KG
1	15	Tube,Circular	6605204460	S355J2H+N	4548.39KG
2	16	Bar,Circular

Features:

1. Our products have the advantages of compact structure, light weight, safe and easy to operate.

2. Our products are used for general lifting, hauling and other works in marine deck machinery, harbor, petroleum, drill machine, engineering machinery, mining, geological exploration and construction machinery and etc.

3. Products are designed and manufactured according to API Spec 7K “Specification for Drilling Equipment”.

4. High starting& working efficiency

5. Reliable operation with little noise

Our services:

1. Engineers available to service machinery overseas.

2. Our products have one year warranty.

3. A range of accessories such as pressure rollers are available on request.

4. Except for standard winches, we’re also able to provide tailored solutions to our customers.

S355j2+N Material Diameter 2960mm Wire Rope Winch Drum For Marine Equipment 0
