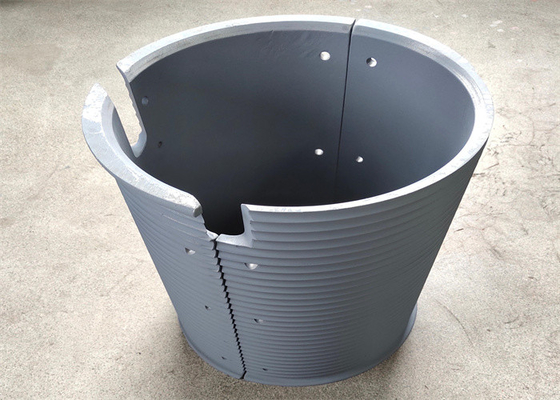

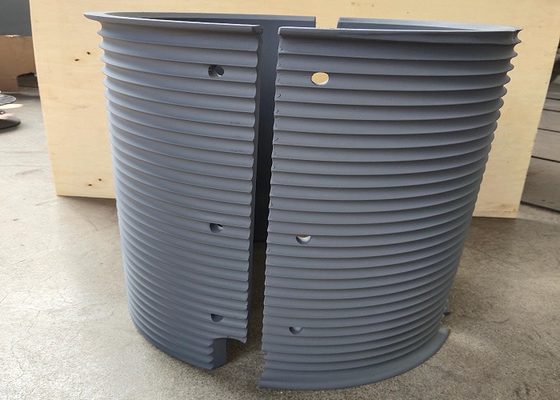

Split Type Lebus Groove Sleeves Wrap Smooth Drums Welded Together

Split Type Lebus Groove Sleeves Wrap Smooth Drums Welded Together
Split Type Lebus Groove Sleeves Wrap Smooth Drums Welded Together Split Type Lebus Groove Sleeves Wrap Smooth Drums Welded Together Split Type Lebus Groove Sleeves Wrap Smooth Drums Welded Together

Large Image :  Split Type Lebus Groove Sleeves Wrap Smooth Drums Welded Together

Product Details:
Place of Origin: Hebei China
Brand Name: LBS
Certification: DNV, ABS, GL, LR, BV, CCS, RINA, NK,
Model Number: Customized
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Export standard wooden case
Delivery Time: 20 to 30 working days, depends on order amount and specification
Payment Terms: L/C, T/T
Supply Ability: 1000 Pieces/Sets Per Month
Contact Now
Detailed Product Description
Name: Split Type Lbs Groove Sleeves Wraps Smooth Drums Key Words: Lebus Groove Sleeves
Grooving Type: LBS Groove The Material: Q355B
Product Condition: Fully Machined Drum Diameter: 20mm-5000mm
Warranty: 1 Year Structure: Smooth Drum And Gooved Sleeves
Connection Type;: Welding
Highlight:

Smooth Drums Lebus Groove Sleeves

,

Welded Together Lebus Groove Sleeves

,

Split Type Lebus Groove Sleeves

Split Type LBS Groove Sleeves Wraps Smooth Drums Welded Together



Product introduction
LBS system is still the most effective and perfect method to prolong the life of wire rope. Tests have shown that the use with Wire rope specifications match the rope groove,LBS drum can prolong the life of wire rope more than 500%.
LBS rope groove makes the load evenly distributed between layers, and the practice proves that it greatly prolongs the life of wire rope. In fact, the test surface can extend wire rope life by more than 500%. Reducing wire rope damage increases safety and reduces machine downtime.



Product attributes
name LBS grooved drum
rotation direction lefthand or righthand
wire rope diameter 3mm-190mm
processing equipment CNC machining center
drum type LBS spooling system-based on unique geometry of the drum grooving
material alloy steel
ceertified DNV, ABS, GL, LR, BV, CCS, RINA, NK, KR



Product application:
1. Crane machinery: The bridge lifting machine, Tower crane, Gantry crane,Crawler crane winch
2. The petroleum industry: Oil drilling rig, Petroleum tractor hoist, Petroleum workover rig, Trailermounted pumping unit winch , Logging winch, etc
3. Offshore Marine machinery: Offshore petroleum crane winch, Mooring winch, Traction winch, Man-riding winch, Anchor winch, Hydrologic winch
4. The construction machinery: Building wipe wall winch, Winding hoist, Windlass
5. Mining winch: Dispatching winch, Prop-pulling winch,Sinking winch, etc
6. Engineering machinery: Cable winch, Tower crane, Piling machine, Hydraulic winch

Product advantage:

1.The integral groove has high processing precision and neat appearance. Due to the high precision of rig to the groove,the reel is more and more widely used in the oil industry.

2. The grooved drum is suit for multi-layer spooling.Its unique design can increase the service life of rope.

3. Make wire rope spooling more smooth and uniform distribution of load between each layer.


TECHNICAL PARAMETERS PROVIDED BY CUSTOMER.doc
LBS SPECIAL GROOVE DRUM WORKING CONDITIONS.doc


The use of environment:

1. Outdoor use is allowed;

2. The altitude does not exceed 2000M;

3. Ambient temperature -30℃ ~ +65℃;

4. It is allowed to work under rain, splash and dust conditions.

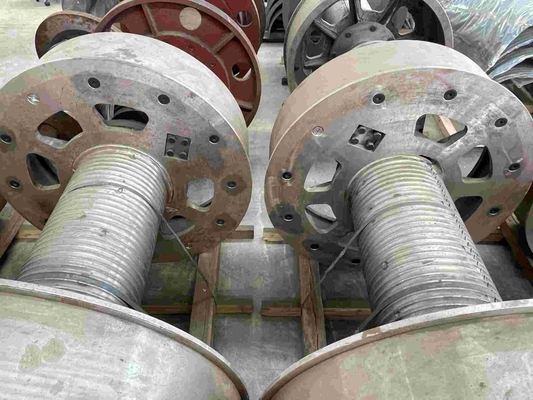

Split Type Lebus Groove Sleeves Wrap Smooth Drums Welded Together 0

Split Type Lebus Groove Sleeves Wrap Smooth Drums Welded Together 1
Split Type Lebus Groove Sleeves Wrap Smooth Drums Welded Together 2

Split Type Lebus Groove Sleeves Wrap Smooth Drums Welded Together 3
