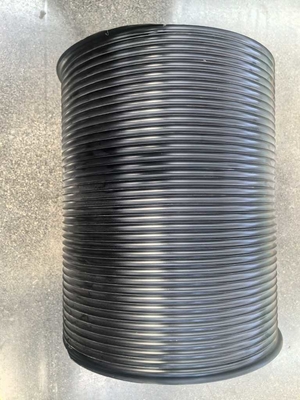

Stainless Steel Split Type Sleeve LBS Grooved Drum Cable Winch Drum OEM ODM Service

Stainless Steel Split Type Sleeve LBS Grooved Drum Cable Winch Drum OEM ODM Service
Stainless Steel Split Type Sleeve LBS Grooved Drum Cable Winch Drum OEM ODM Service Stainless Steel Split Type Sleeve LBS Grooved Drum Cable Winch Drum OEM ODM Service Stainless Steel Split Type Sleeve LBS Grooved Drum Cable Winch Drum OEM ODM Service

Large Image :  Stainless Steel Split Type Sleeve LBS Grooved Drum Cable Winch Drum OEM ODM Service

Product Details:
Place of Origin: Hebei prov,China
Brand Name: LBS
Certification: ISO9000 GJB
Model Number: DN12-D830-L1150
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: based on material and demensions
Packaging Details: standard export case
Delivery Time: 25-30 work days after received payments
Payment Terms: T/T, Western Union
Supply Ability: 250 sets per month
Detailed Product Description
Name: Drum Sleeves And Drum Shells Material: Nylon Or Steel
Groove: Helical Or LBS Processing Equipemnt: CNC Center
Color: Red Beige Or Black OEM/ODM: Yes
High Light:

OEM ODM Service LBS Grooved Drum

,

Split Type Sleeve LBS Grooved Drum

,

Stainless Steel LBS Grooved Drum

Stainless Steel Split Type Sleeve LBS Grooved Drum Cable Winch Drum OEM ODM Service



Important details:



the drum sleeves ’design based on your drum’s technical parameters as following:



1. rotation direction

2. wire rope diameter and length

3. drum outer diameter and width between the fanges

4. groove type:helical and LBS

5. assembly type: bolted or plug weld



Our requirements:



Firstly, the drum flanges must be perpendicular to the drum barrel at all times,even under loaded conditions.
Secondly, there must be sufficient tension on the wire rope to hold the wire firmly in the groove and keep it from skipping grooves or “back tracking”.
Thirdly, the fleet angle must be kept between 0.25° and 1.25°.
Fourthly, the wire rope must be anti-rotating.
Lastly,when the wire rope released from the drum is wound to the fixed pulley, the center of the fixed pulley must be the center between the falnges.



Product materials:

Alloy steel, cast steel, aluminum carbon steel ,Q345, Q420, Q460, 15CrMo,20GrMo, 42GrMo, etc.



Our manufacture and sale:



1. We can produce drums and drum sleeves of all sizes.

2. Our products have been exported to overseas for many years, and we obtain domestic and foreign customers alike with product’s good quality and well-designed sevice.

3. We can manufacture groove pitch according to your wire rope diameter. In order to make rope run properly,certain parameters of drums must be met.





Application conditions:

  • the split-type LBS groove generally can be mounted on a smooth, grooveless drum-for for retrofit or where the drum needs to be replaced.
  • The split -type sleeve system consists of a pair of outer casings that are bolted or assembled on a smooth light cylinder, so that the outer surface of the cylinder becomes a grooved form, and the split sleeve is composed of a spiral groove and a parallel groove, and the groove is formed. The design conforms to the specific rope structure, diameter and length.

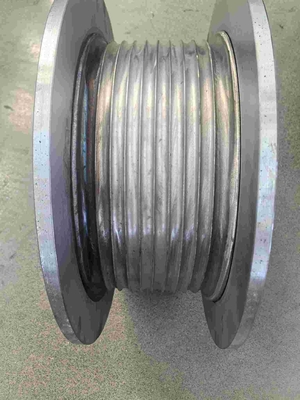

Stainless Steel Split Type Sleeve LBS Grooved Drum Cable Winch Drum OEM ODM Service 0

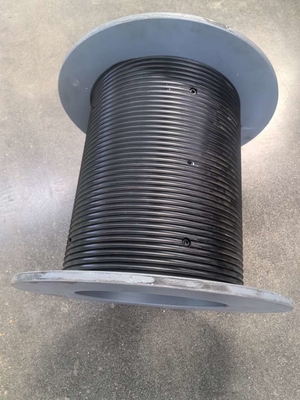

Stainless Steel Split Type Sleeve LBS Grooved Drum Cable Winch Drum OEM ODM Service 1



Why you shoud choose us:

1)10 years LBS design and produce experience

2)LBS patent award by government

3)The specilized in design and drawing for one of the customer according the different usage

4)The successful case with China big government project

5) Top quality with competitive price.
