Custom Lebus Double‑Folded Rope Grooved Drum for Hydraulic Winch

1.Description

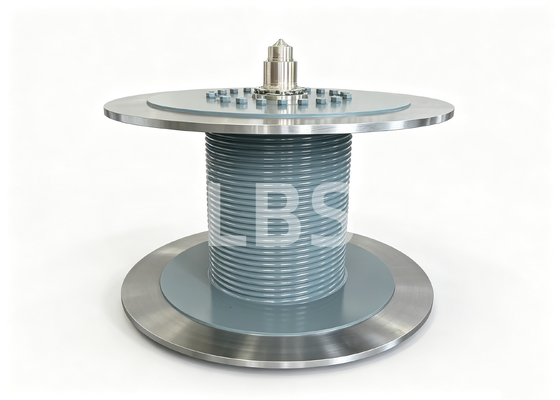

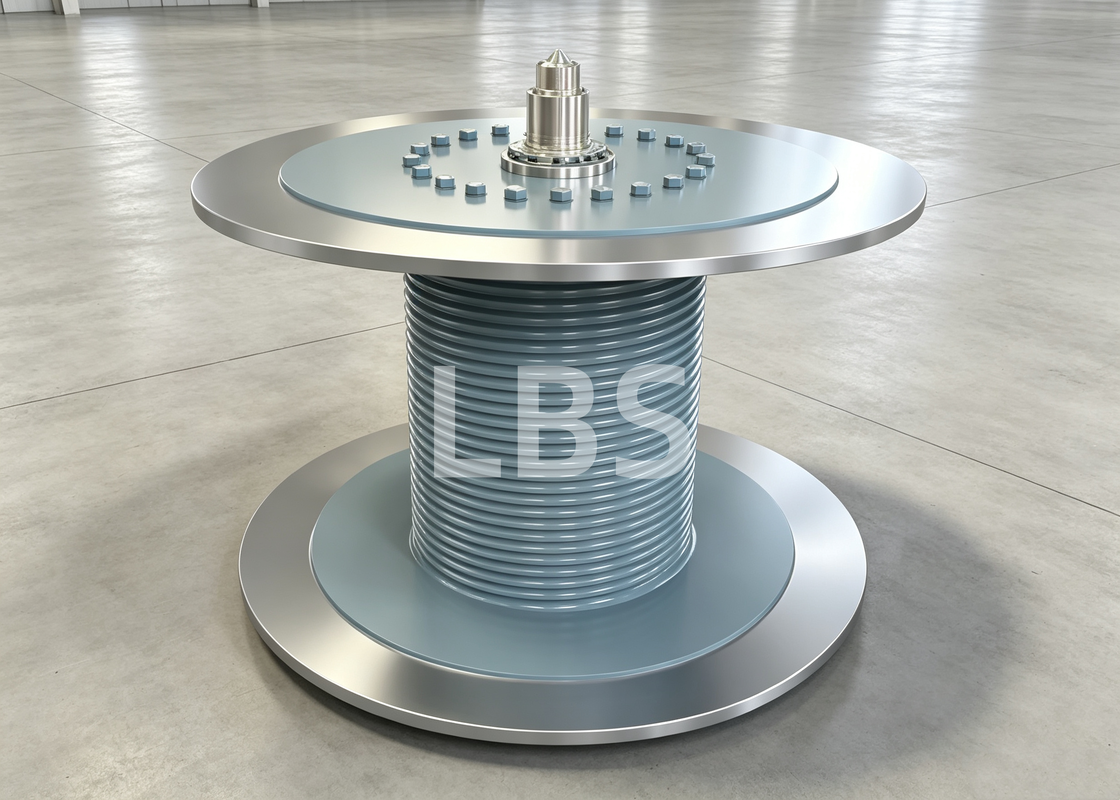

This Lebus double‑folded rope‑groove drum is compatible with Ø38 mm steel wire rope and delivers a maximum rope capacity of 829 meters for orderly 7‑layer rope winding. It features a drum root diameter of 946 mm, rope‑groove pitch of 39.7 mm and right‑hand 60° groove with rope entry from the flange side. Constructed by welding, the drum undergoes post‑weld stress‑relief treatment. After sandblasting, it is finished with zinc‑rich epoxy primer and RAL7031 machine‑grey polyurethane topcoat with total film thickness no less than 100 μm, while anti‑rust oil is applied on mating surfaces. Manufactured strictly according to GB/T tolerance standards with all sharp edges broken and brake disc surface roughness controlled within Ra1.6‑Ra3.2, this heavy‑strength component is specially matched for heavy‑duty winch equipment.

2.Parameter

3.Advantage

Equipped with Lebus double‑folded rope‑groove structure, the drum keeps steel wire rope well‑arranged under multi‑layer winding conditions, effectively avoiding rope disorder, squeezing and rope biting so as to remarkably extend wire‑rope service life. Its large‑capacity 7‑layer winding structure offers 829 m rope capacity to satisfy long‑distance operation demands. Post‑weld stress‑relief technology reduces drum deformation, ensures high overall rigidity and provides outstanding heavy‑load impact resistance. The complete anti‑corrosion coating system consisting of zinc‑rich epoxy primer and polyurethane topcoat delivers favorable salt‑spray resistance for harsh offshore and field environments. Supported by precision machining and strict geometric tolerance control, the brake disc achieves high surface precision for good fitting performance with winch parts, realizing stable and low‑noise operation. The flange‑side rope‑entry design guarantees smooth rope feeding and facilitates later‑stage assembly, disassembly and routine maintenance.

4.Application

This drum is widely matched with marine winches, offshore engineering lifting equipment, land‑based construction machinery, mine hoisting equipment and various large‑scale hoisting mechanisms, and it is applicable to multiple heavy‑duty and long‑rope working scenarios including offshore platform operations, vessel deck work, mining and engineering hoisting.

5.Warranty

Warranty: the quality of our winch drum is guaranteed for one year, in this period, if any quality problem happens with correct operation, we will send spare parts to you free of charge.

After warranty, we will supply spare parts at cost prices to you.
