Reciprocating Lead Screw Levelwind Assembly for Hydraulic Lebus Winch, Automatic Wire Rope Traversing Device

1.Product Description

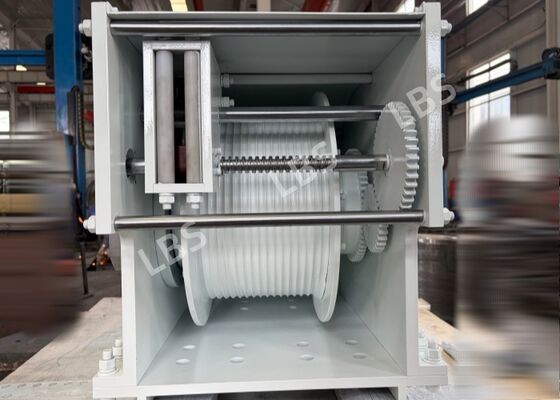

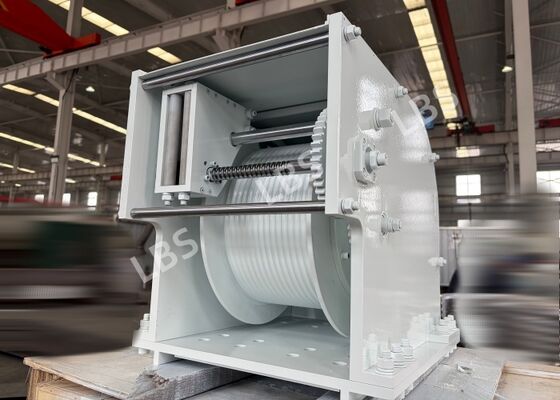

This levelwind assembly is a mechanical automatic spooling device specially matched for hydraulic winches. Driven mechanically by the winch drum, the 42CrMo reciprocating lead screw and nut assembly drives the rope guide to reciprocate horizontally. Working with Lebus grooved drum, it guides wire rope to wind neatly layer by layer and prevents rope crossing, squeezing, kinking and abrasion.

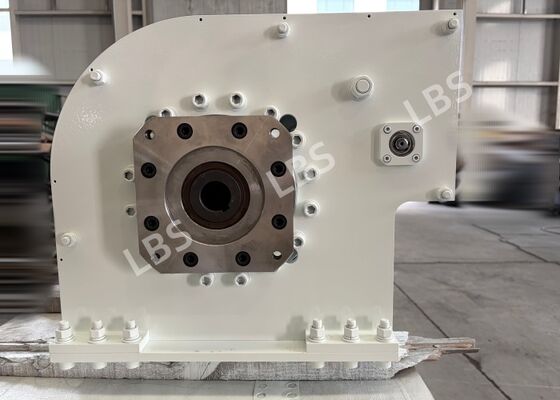

The assembly integrates bearing housings, gear ring transmission, smooth guide shafts and rope passing unit. It adopts full-mechanical linkage, no extra motor, hydraulic valve or electronic limit switch required. The main frame is Q355B, and key lead screw parts are 42CrMo alloy steel with quenching & tempering treatment for high wear resistance.

2.Parameter

3.Advantage

(1)Fully mechanical design, high reliability under offshore salt fog & heavy vibration
(2)42CrMo reciprocating screw for long service life; heavy-duty roller bearings for continuous load
(3)Perfect match with Lebus drum, greatly extend wire rope service life
(4)Compact integrated structure, easy installation for new winch or old unit retrofit
(5)Low maintenance, only regular lubrication needed; sensitive electronic components eliminated
(6)Custom stroke, lead and connection dimensions available according to client’s drum parameters

4.Application

Offshore platform winches, vessel deck hydraulic winches, mooring winches, LARS launch & recovery systems, construction crane winches, piling winches, port machinery, oil drilling hoists and heavy lifting traction equipment.
