Fast Speed Smooth Drum Winch Wire Rope Winch Drum 10 Ton 20 Ton
Drum material:
Carbon steel, alloy steel, cast steel, aluminum, all kinds of high-strength steel Q345, Q420, Q460, 15CrMo,20GrMo, 42GrMo, etc
Rotation Direction: Left or Right
Wire Rope Diameter: 3 MM~190 MM
Processing equipment: CNC machining center
Product application:
1. Offshore Marine machinery: Offshore petroleum crane winch, Mooring winch, Traction winch, Man-riding winch, Anchor winch, Hydrologic winch
2. Engineering machinery: Cable winch, Tower crane, Piling machine, Hydraulic winch
3. Oil field industry: Oil drilling rig, Petroleum tractor hoist, Petroleum workover rig, Trailermounted pumping unit winch , Logging winch, etc
4. The building machinery: Building wipe wall winch, Winding hoist, Windlass
5. Mining winch: Dispatching winch, Prop-pulling winch,Sinking winch, etc
6. Crane machinery: The bridge lifting machine, Tower crane, Gantry crane,Crawler crane winch
Product structure:

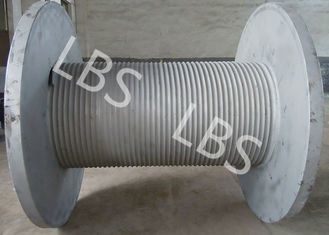

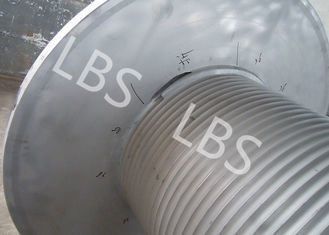

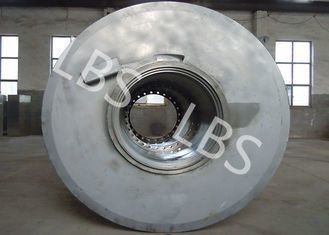

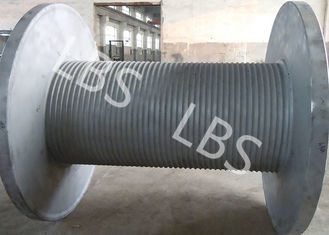

Grooved drum (with or without bolted or welded flanges, as required) : the rope groove is cut directly into the body of the drum, according to customers’ requirements, the flanges are either welded or screw-bolted. groove geometry is determined by rope construction, diameter and length, and by application. the drum has the required mounting dimensions for the actual operating conditions.
Advantage and main feature:
1. Top quality with competitive price.
2. Widely used in factory, mining, shipyard or double beam cranes.
3. Compact structure and reasonable design.
4. Easy to install, operate and maintenance.
5. Low noise and good working condition.
6. Safe and reliable function.
Ours services:
1. After-sales Service Provided: Engineers available to service machinery overseas
2. The warranty is one year
3. Top quality with competitive price
