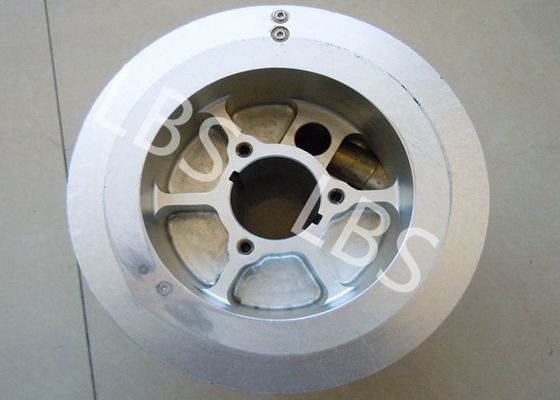

Custom Steel Spooling Device LBS Grooved Drum For Crane Winch

Custom Steel Spooling Device LBS Grooved Drum For Crane Winch
Custom Steel Spooling Device LBS Grooved Drum For Crane Winch Custom Steel Spooling Device LBS Grooved Drum For Crane Winch Custom Steel Spooling Device LBS Grooved Drum For Crane Winch Custom Steel Spooling Device LBS Grooved Drum For Crane Winch

Large Image :  Custom Steel Spooling Device LBS Grooved Drum For Crane Winch

Product Details:
Place of Origin: Hebei,China
Brand Name: LBS
Certification: DNV, ABS, GL, LR, BV, CCS, RINA, NK,
Model Number: Custom design
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Export standard wooden case
Delivery Time: 20 to 30 working days, depends on order amount and specification
Payment Terms: L/C, T/T
Supply Ability: 1000 Pieces/Sets Per Month
Detailed Product Description
Main Port: Tianjin China Grooving Type: LBS Special Grooves
Sling Type: Steel Wire Rope Or Armored Cable Color: According To Customer Demand
Product Condition: Fully Machined Specifications: Custom Design Or Drawings
High Light:

rope winch drum

,

electric hoist winch



Custom Steel Spooling Device LBS Grooved Drum For Crane Winch




Wire Rope Diameter: 3 MM~190 MM
Processing method: casting processing



Product specifications:
Custom design based on the requirements
1) Wire rope or cable diameter (mm)
2) The main drum diameter (mm)
3) Width between flanges (mm)
4) Length of rope or cable to be accommodated
5) Material and requirements of the drum
6) Maximum operating load on rope or cable
7) Direction of wire rope entry
8) Type of rope entry
9) Distance to fixed sheave and position between flanges
10) Outside diameter of flanges



TECHNICAL PARAMETERS PROVIDED BY CUSTOMER.doc

LBS SPECIAL GROOVE DRUM WORKING CONDITIONS.doc



Product material:
Carbon steel, alloy steel, cast steel, aluminum, all kinds of high-strength steel Q345, Q420, Q460,15CrMo, 20GrMo, 42GrMo, etc
Material standards: GB, AISI, ASME, ASTM, JIS DIN, NF, BS, EN ...
Classification societies certified: DNV, ABS, GL, LR, BV, CCS, RINA, NK, KR ...



Product application:
1. Offshore Marine machinery: Offshore petroleum crane winch, Mooring winch, Traction winch, Man-riding winch, Anchor winch, Hydrologic winch
2. The petroleum industry: Oil drilling rig, Petroleum tractor hoist, Petroleum workover rig, Trailermounted pumping unit winch , oil Logging winch, etc
3. Crane machinery: Lifting machine, Tower crane machinery, Gantry crane,Crawler crane winch
4. The construction machinery: Building wipe wall winch, Winding hoist, Windlass
5. Engineering machinery: Cable winch, Tower crane, Piling machine, Hydraulic winch
6. Mining winch: Dispatching winch, Prop-pulling winch,Sinking winch, etc



Product advantage:
LBS grooved drum, solved the problem of bitten rope in wire rope winding process. LBS groove
system makes the winding of wire rope smooth, and the load of each layer evenly distributed,the technology greatly prolong the service life of wire rope, extend the service life of wire rope can be more than 500%, reduce the wire rope damage, improves the safety of the operation of the equipment, and reduces the problem of mechanical equipment shutdown for changing rope.



Product structure:
Integral rope groove drum: rope drums with grooves cut directly into them (with or without bolted or welded flanges, as required).Winch drum with flange, the LBS groove is cut directly into the body of the drum, according to customers’ requirements, the flanges are either welded or screw-bolted. groove geometry is determined by rope construction, diameter and length, grooves can be made for almost any cable size.



Technical parameters and application:



No: Wire diameter(mm): Rotation direction Main drum
diameter(mm)
Main drum length(mm) Application
1 8 10 13 Lefthand,Righthand 430 763 The oil workover rig winch,
Towing winch
Tower crane
2 13 18 20 Lefthand,Righthand 623 1144 Engineering winch,
Lifting winch,Crawler crane
3 22 25 26 Lefthand,Righthand 730 1220 Oil workover rig ,
Logging Winch
4 18 22 32 Lefthand,Righthand 670 1240

Drilling Rig Winch,
drawworks

5 28 32 36 40 Lefthand,Righthand 560 630 Rotating Drilling Rig winch,
Lifting equipment
6 26 28 32 45 Lefthand,Righthand 760 1146 1970 1765

Offshore Crane,
Marine crane,Mooring winch



......
