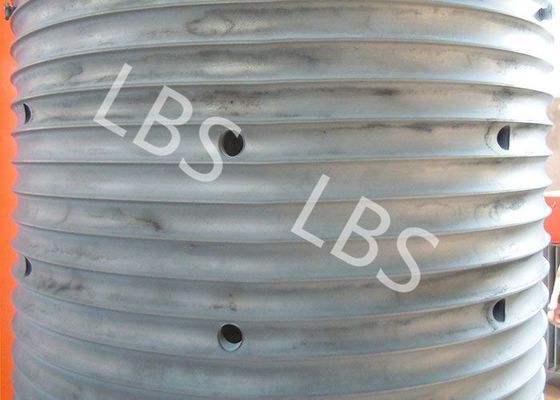

Q345 Q420 Hoisting Drum LBS Sleeves With Multi Layer Spooling System

Q345 Q420 Hoisting Drum LBS Sleeves With Multi Layer Spooling System
Q345 Q420 Hoisting Drum LBS Sleeves With Multi Layer Spooling System Q345 Q420 Hoisting Drum LBS Sleeves With Multi Layer Spooling System Q345 Q420 Hoisting Drum LBS Sleeves With Multi Layer Spooling System Q345 Q420 Hoisting Drum LBS Sleeves With Multi Layer Spooling System

Large Image :  Q345 Q420 Hoisting Drum LBS Sleeves With Multi Layer Spooling System

Product Details:
Place of Origin: Hebei，China
Brand Name: LBS
Certification: DNV, ABS, GL, LR, BV, CCS, RINA, NK,
Model Number: Custom design
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Export standard wooden case
Delivery Time: 20 to 30 work days, depends on order amount and specification
Payment Terms: L/C, T/T
Supply Ability: 1000 Pieces/Sets Per Month
Contact Now
Detailed Product Description
Port: Tianjin China Grooving Type: Special Groove
Sling Type: Wire Rope Or Cable Equipment: CNC Machining Center
Application: Boat, Port, Hoisting Machinery Industry... Rotation Direction: Left Or Right
Highlight:

lebus groove

,

drum sleeve



LBS Sleeve For Use On Hoisting Drum With Multi-lay Spooling System



Machinable product material​:
Nylon polymer,carbon steel, alloy steel,aluminum,all kinds of high-strength steel Q345, Q420, Q460,20GrMo,40GrMo,42GrMo, etc



Technical parameters and application:



No: Wire diameter(mm): Rotation direction Main drum
diameter(mm)		 Main drum length(mm) Application
1 8 10 13 Lefthand,Righthand 430 763 The oil workover rig winch,
Towing winch
Tower crane
2 13 18 20 Lefthand,Righthand 623 1144 Engineering winch,
Lifting winch,Crawler crane
3 22 25 26 Lefthand,Righthand 730 1220 Oil workover rig ,
Logging Winch
4 18 22 32 Lefthand,Righthand 670 1240 Drilling Rig Winch, drawworks
5 28 32 36 40 Lefthand,Righthand 560 630 Rotating Drilling Rig winch,
Lifting equipment
6 26 28 32 45 Lefthand,Righthand 760 1146 1970 1765

Offshore Crane,
Marine crane,Mooring winch



......


Product specifications:
1) Wire rope or cable diameter (mm)
2) Drum diameter (mm)
3) Drum length (mm)
4) Rope capacity
5) Drum material
6) Maximum operating load on rope or cable
7) Type of rope entry
8) Direction of wire rope or cable entry
9) Distance to fixed sheave and position between flanges
10) Outside diameter of flanges
11) The drum drawing





Product structure:

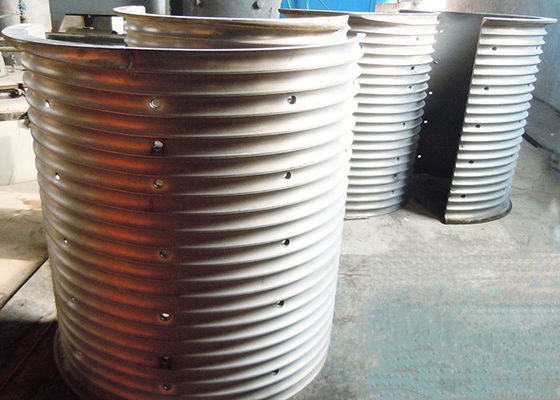

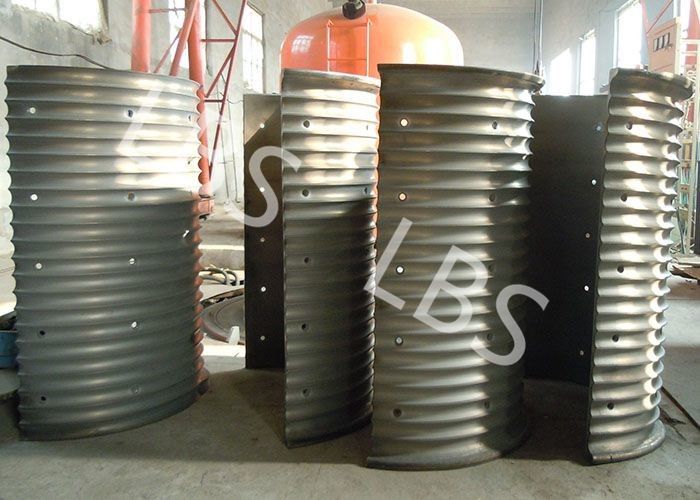

1. Split sleeves can be placed over smooth and ungrooved drums – suitable for modification or replacement of drum.
2. Split-sleeve system consists of a pair of outer shells that are bolted or welded onto a smooth drum.
3. The split sleeve is composed of spiral groove and parallel groove.
4. The groove design conforms to the specified wire rope structure, diameter and length.



Product advantage:
LBS grooved drum, solved the problem of bitten rope in wire rope winding process. LBS groove
system makes the winding of wire rope smooth, and the load of each layer evenly distributed,the technology greatly prolong the service life of wire rope, extend the service life of wire rope can be more than 500%,reduce the wire rope damage, improves the safety of the operation of the equipment, and reduces the problem of mechanical equipment shutdown for changing rope.



Product application:
1. Marine machinery: offshore petroleum crane winch, drawworks and hoist
2. Engineering machinery: tower crane, piling machine
3. The petroleum industry: oil drilling rig, petroleum tractor hoist, petroleum workover rig, trailermounted pumping unit winch , etc
4. The hoist: building wipe wall machine, winding machine
5. Crane machinery: the bridge lifting machine, tower crane
......

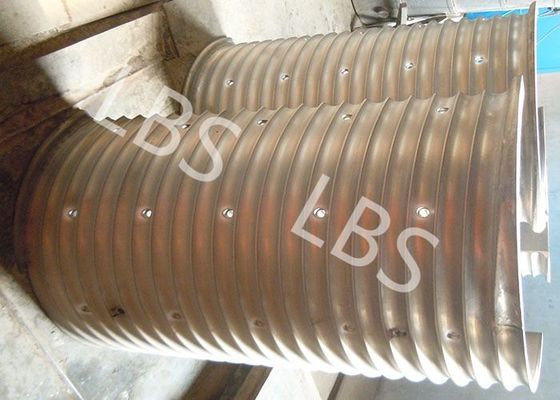

Q345 Q420 Hoisting Drum LBS Sleeves With Multi Layer Spooling System 0

Q345 Q420 Hoisting Drum LBS Sleeves With Multi Layer Spooling System 1

Tag:

drum sleeve,

lebus groove,

lebus grooving
