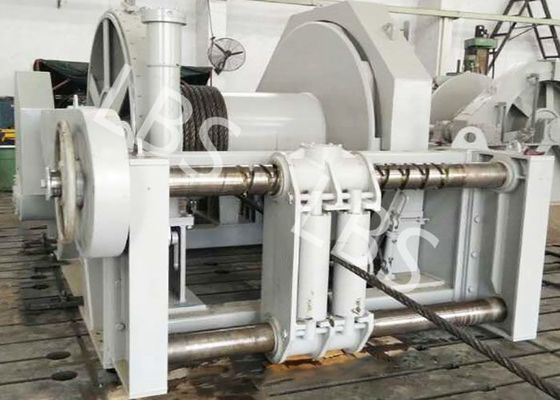

Smooth Drum Spooling Device Winch / Wire Rope Ranging Device Winch

Smooth Drum Spooling Device Winch /  Wire Rope Ranging Device Winch
Smooth Drum Spooling Device Winch /  Wire Rope Ranging Device Winch Smooth Drum Spooling Device Winch /  Wire Rope Ranging Device Winch

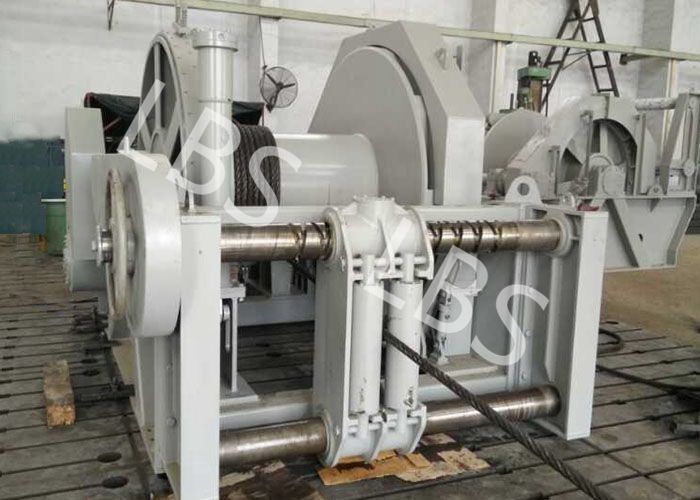

Large Image :  Smooth Drum Spooling Device Winch / Wire Rope Ranging Device Winch

Product Details:
Place of Origin: Hebei,China
Brand Name: LBS
Certification: DNV, ABS, GL, LR, BV, CCS, RINA, NK,
Model Number: Custom design
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Export standard wooden case
Delivery Time: 30 to 40 working days, depends on order amount and specification
Payment Terms: L/C, T/T
Supply Ability: 500 Pieces/Sets Per Month
Detailed Product Description
Main Port: Tianjin China Groove Type: LBS Groove Or Helical Groove
Drum Type: Smooth Drum Product Condition: Fully Machined
High Light:

lebus winch

,

wire rope spooling device



Product Features:
1.product name :spooling drum winch,wire rope dum winch
2. Steel wire rope or cable winch with spooling system
3. Automatic rope arrangement can be realized
4. Keep the wire rope's tensioning tight for winches & cranes
5.The spooling machine can supply a back force on the rope to keep the rope a tensioning     force.The spooling machine and its HPU are removeable
6.This product can be used for oil field, deck machinery, port construction, wharf construction, shipyard building and other large-scale factories.
Our company introduce:
Shijiazhuang JunZhong Machinery Manufacturing Co., Ltd. specializing in the production of double grooved drum (reel). Jun zhong seek the quality firstly and has its own brand LBS. with introduction of domestic and foreign advanced technology and experience , we are now strong in the multi-layers rope grooved drum area and awarded patent by country having a high reputation in that area.

Techinal parameter:
Tugger winches/capstans
ModelEPLBS-10~300    EPLBS10~300EPLBSC-5~200EPLBSC-5~200
DriveHydraulic or electricHydraulic or electric
TypeSingle or double drumvertical
Rated load10KN~300KN5KN~200KN
Rated speed10~30m/min10~20m/min
Holding load20KN~500KN
Dia.wireφ13~42mmφ13~32mm
Drum capacity50~500m
ClutchHydraulic/handle operated jaw type
brakeSpring loaded hydraulic release/handle operated type
Power required4~90kw4~90kw4~75kw4~75kw
controlLocal control& remote control in wheelhouse
optionLength &tension monitoring system
The parameter can be design by buyer requirement.

Spooling device:
1. The rope winding device of the winch (spooling device winch) adopts the principle of double rotating screw to drive the rope wheel to move back and forth,It is mechanical transmission device, easy to use, safe and reliable.
2. The winch rope arranging device consists of six parts, namely, power output part, transmission box, clutch, spiral sleeve part, rope supporting part and base.
3. In the installation process, does not require any part of the transformation of the winch, only needs to install the outer gear on the winch motor side, the power of the motor output.
4. Do not need to change any part of the winch during installation, just installed in the outer gear winch motor side.



Drive principle:
Winch drum - gear box - screw sleeve rotation - rope wheel reciprocating movement.





Smooth Drum Spooling Device Winch /  Wire Rope Ranging Device Winch 0
