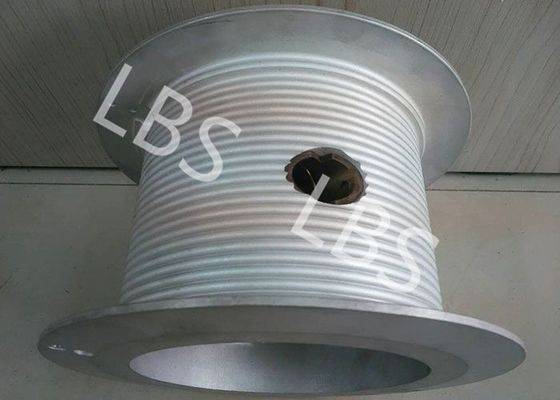

OEM Steel Wire Rope Cable Wire Rope Winch Drum With Groove Geel

OEM Steel Wire Rope Cable Wire Rope Winch Drum With Groove Geel
OEM Steel Wire Rope Cable Wire Rope Winch Drum With Groove Geel OEM Steel Wire Rope Cable Wire Rope Winch Drum With Groove Geel OEM Steel Wire Rope Cable Wire Rope Winch Drum With Groove Geel OEM Steel Wire Rope Cable Wire Rope Winch Drum With Groove Geel

Large Image :  OEM Steel Wire Rope Cable Wire Rope Winch Drum With Groove Geel

Product Details:
Place of Origin: Hebei,China
Brand Name: LBS
Certification: DNV, ABS, GL, LR, BV, CCS, RINA, NK,
Model Number: Custom design
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Export standard wooden case
Delivery Time: 20 to 30 working days, depends on order amount and specification
Payment Terms: L/C, T/T
Supply Ability: 1000 Pieces/Sets Per Month
Detailed Product Description
Main Port: Tianjin China Sling Type: Steel Wire Rope
Grooving Type: LBS Grooves Color: According To Customer Demand
Specifications: Custom Design Or Drawings Product Condition: Fully Machined
High Light:

cable winch drum

,

electric hoist winch

OEM Steel Wire Rope Cable Wire Rope Winch Drum With Groove Geel



Product application:
1. Offshore Marine machinery: Offshore petroleum crane winch, Mooring winch, Traction winch, Man-riding winch, Anchor winch, Hydrologic winch
2. Engineering machinery: Cable winch, Tower crane, Piling machine, Hydraulic winch
3. The petroleum industry: Oil drilling rig, Petroleum tractor hoist, Petroleum workover rig, Trailermounted pumping unit winch , Logging winch, etc
4. The construction machinery: Building wipe wall winch, Winding hoist, Windlass
5. Mining winch: Dispatching winch, Prop-pulling winch,Sinking winch, etc
6. Crane machinery: The bridge lifting machine, Tower crane, Gantry crane,Crawler crane winch

Drum material:
Carbon steel, alloy steel, cast steel, high-strength steel Q345, Q420, Q460,15CrMo, 20GrMo, 40GrMo, 42GrMo, etc



Rotation Direction: Left or Right
Wire Rope Diameter: 3 MM~190 MM
Durm Type: LBS spooling system - based on the unique geometry of the drum grooving



Product structure:
Rope grooved drum: rope drums with grooves cut directly into them (with or without bolted or welded flanges, as required). the groove is cut directly into the body of the drum, according to customers’ requirements, the flanges are either welded or screw-bolted. groove geometry is determined by rope construction, diameter and length, and by application. the drum has the required mounting dimensions for the actual operating conditions.



Technical parameters and application:



No: Wire diameter(mm): Rotation direction Main drum
diameter(mm)
Main drum length(mm) Application
1 8 10 13 Lefthand,Righthand 430 763 The oil workover rig winch,
Towing winch
Tower crane
2 13 18 20 Lefthand,Righthand 623 1144 Engineering winch,
Lifting winch,Crawler crane
3 22 25 26 Lefthand,Righthand 730 1220 Oil workover rig ,
Logging Winch
4 18 22 32 Lefthand,Righthand 670 1240 Drilling Rig Winch,
drawworks
5 28 32 36 40 Lefthand,Righthand 560 630 Rotating Drilling Rig winch,
Lifting equipment
6 26 28 32 45 Lefthand,Righthand 760 1146 1970 1765

Offshore Crane,
Marine crane,Mooring winch



......



Product advantage:
LBS spooling system can eliminate the 360° continuous cross winding of the cable as found on smooth drums.The lebus grooved drum, solved the problem of bitten rope in wire rope winding process. LBS groove system makes the winding of wire rope smooth, and the load of each layer evenly distributed,the technology greatly prolong the service life of wire rope, reduce the wire rope damage, improves the safety of the operation of the equipment, and reduces the problem of mechanical equipment shutdown for changing rope.



TECHNICAL PARAMETERS PROVIDED BY CUSTOMER.doc

LBS SPECIAL GROOVE DRUM WORKING CONDITIONS.doc



OEM Steel Wire Rope Cable Wire Rope Winch Drum With Groove Geel 0



OEM Steel Wire Rope Cable Wire Rope Winch Drum With Groove Geel 1
