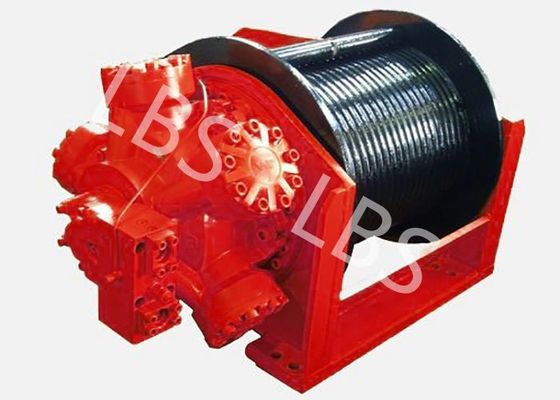

Product name :Windlass Winches / Hydraulic Tugger Winch Mining Belt Cylinder Winch
Power :hydraulic
Original:China (mianland)
Groove type:LBS groove
Colour:red or requirement
Sling type: cable or wire
Direction ratation:left or right
Our design feature:LBS groove drum design can exactly caculate the rope speed and force and can make the rope spooling in the suitable groove to make work effective
product technical parameter:(can be design as requirement or working condition)
| Model |
Layer plly force
(T)
|
Rope speed |
Drum bottom diameter |
Difference of working pressures(Mpa) |
Rope capaticty(mm) |
Diameter of steel cable(mm) |
Model of power |
| LBSOFZ1-10 |
30 |
0-35 |
305 |
15.9 |
65 |
15 |
XH2-420 D51 |
| LBSOFZ1-20 |
50 |
0-40 |
380 |
16.3 |
70 |
20 |
XH3-900 D240 101 |
| LBSOFZ1-30 |
80 |
0-40 |
470 |
15.6 |
100 |
24 |
XH5-1800 D240101 |
| LBSOFZ1-40 |
100 |
0-40 |
470 |
16 |
90 |
28 |
XH6-2000 D240 101 |
| LBS0FZ1-50 |
1 |
|
|
|
|
|
|
Product structure:
Hydraulic winch is made up of hydraulic motor, multi-disc friction brake, planet gearbox, spool and bracket as a whole. There are shuttle valve and counter balance valve keep the load from dropping, and maintain loading and unloading stable.and which can be optional according to customer needs.
Product application:
Winches are widely used in conveyor tensioning device, construction machinery such as mobile cranes, crawler cranes, truck, forestry cranes, and port vessel classes such as port cranes, crane pontoons, dredgers, cranes, davits, and can be also used for large-scale lifting equipment such as oil rigs, offshore oil rigs, piling machinery rotary drilling rig, drilling rig, core drilling and hydrostatic pressure machine and so on.
Feature:
1) Only converter and valve outside of roller. Hydraulic motor and gear housing are hidden in the winch roller, thus small axial size, compact structure and beautiful appearance.
2) High efficiency of starting and transmissing, low energy consumption, reliable operation and long service life.
3) Highly efficient, constant operating torque motor.
4) Smooth running over the entire speed range.
5) Low noise operation.
