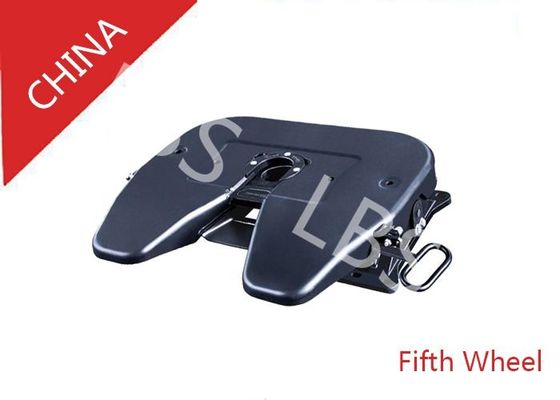

Trailer Hitch Parts 3.5 Inch Fifth Wheel Plate Heavy Duty Truck

Trailer Hitch Parts 3.5 Inch Fifth Wheel Plate Heavy Duty Truck
Trailer Hitch Parts 3.5 Inch Fifth Wheel Plate Heavy Duty Truck Trailer Hitch Parts 3.5 Inch Fifth Wheel Plate Heavy Duty Truck Trailer Hitch Parts 3.5 Inch Fifth Wheel Plate Heavy Duty Truck

Large Image :  Trailer Hitch Parts 3.5 Inch Fifth Wheel Plate Heavy Duty Truck

Product Details:
Place of Origin: Hebei，China
Brand Name: LBS
Certification: DNV, ABS, GL, LR, BV, CCS, RINA, NK,
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Export standard wooden case
Delivery Time: 20 to 30 working days, depends on order amount and specification
Payment Terms: L/C, T/T
Supply Ability: 2000 Pieces/Sets Per Month
Contact Now
Detailed Product Description
Main Port: Tianjin China Model Number: Forging Fifth Wheel
Imposed Load: 20T-100T Product Color: Black, Red, Brown Or Customized
Material: 90-29 Used: Drag / Trailer Parts
Highlight:

semi truck fifth wheel

,

fifth wheel plate



product specification:

Process: Casting
Mounting height: 290
Mounting width: 960
Tractive force: 260KN

   Product material:30Q, Cast steel, Nodular cast iron, Steel plate stamping......

 Function:Unidirectional and bidirectional



casting Series Fifth Wheel

Model Number

Mounting Height

(mm)

Mounting Width

(mm)

Vertical load

(T)

D-value

(KN)

Weight

(Kg)

King pin size

(mm)

 Function

Capacity

(T)
LBSCD50x - 15 150 800 15 120 110

Φ50

( 2“)

 One-way ＜30
LBSCD50x - 18 185
LBSCD50 - 15 150 900 20 152 135 ≤50
LBSCD50 - 18 185
LBSCD50 - 25 250 145
LBSCL50 - 29 290 165 Two-way
LBSCD90 - 18 185 960 36 260 190

Φ90

( 3.5“)

 One-way

＞50

＜100
LBSCD90 - 25 250 200
LBSCL90 - 29 290 260 Two-way




Punching Series Fifth Wheel

Model Number material

Thickness

(mm)

Mounting Height

(mm)

Mounting Width

(mm)

Vertical load

(T)

D-value

(KN)

Capacity

(T)
LBSD90 16Mn 12 185 960 51 424 ≤100
LBSD50 16Mn 8 185 900 25 235 ≤50

Advantaged:
1. Traction pin has excellent abrasion resistance
2. Cast top plate, machined flat, provides stronger load bearing surface
3. Reduces friction and uneven wear proven hook and plunger design from existing model safe and reliable locking mechanism.
4. High level of operating reliability
5. Can be used in complicated loading conditions
6. Wearing ring is easy to replac









Trailer Hitch Parts 3.5 Inch Fifth Wheel Plate Heavy Duty Truck 0
