product brief introduce:
Product name:hydraulic LBS groove winch
Usage:marine ,crane,mining,oil field ,offshore,boat ,ship ,logging
Drum type :LBS groove drum
Wire rope diameter: 3~190mm
Rope capacity:100~10000M
layer: 1~50 layer
Power: hydraulic
Colour:red or requirement
Parameter: can be design as working purpose or requirement
Design feature :
LBS groove drum design is effective than smooth or traditional sprial drum .As the LBS groove have two parallel and two sprial groove in one layer that can make the rope working smoothly in spooling.
Techinal parameter for reference:
| Model |
Frirst layer Pull force(T) |
Drum bottom diameter |
Layer |
Rope capaticty(mm) |
Diameter of steel cable(mm) |
Model of power |
| LBSOFE3-10 |
1 |
7-12 |
305 |
4 |
170 |
15 |
XH2-420 D51 |
| LBSOFE3-20 |
2 |
7-28 |
380 |
4 |
180 |
20 |
XH3-900 D240 101 |
| LBSOFE3-30 |
3 |
6-25 |
470 |
4 |
240 |
24 |
XH5-1800 D240101 |
| LBSOFE3-40 |
4 |
10-23 |
470 |
4 |
270 |
28 |
XH6-2000 D240 101 |
| LBS0FE3-50 |
5 |
10-25 |
600 |
4 |
300 |
30 |
XH6-3000 D240101 |
| LBSOFE3-10 |
10 |
15-30 |
640 |
8 |
500 |
38 |
XH7-4300 D240101 |

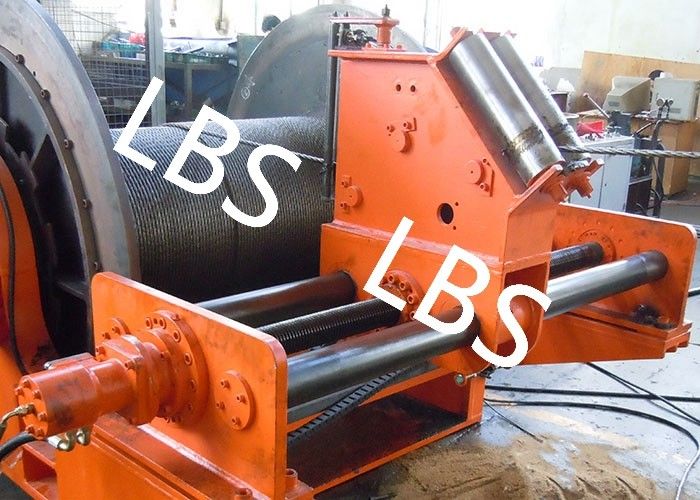

Spooling device:
1. The rope winding device of the winch (spooling device winch) adopts the principle of double rotating screw to drive the rope wheel to move back and forth,It is mechanical transmission device, easy to use, safe and reliable.
2. The winch rope arranging device consists of six parts, namely, power output part, transmission box, clutch, spiral sleeve part, rope supporting part and base.
3. In the installation process, does not require any part of the transformation of the winch, only needs to install the outer gear on the winch motor side, the power of the motor output.
4. Winch drum - gear box - screw sleeve rotation - rope wheel reciprocating movement.
Company profile:
Our factory mainly in the service of hoisting machinery, Marine machinery, petroleum machinery, hydraulic machinery, engineering machinery and other industries, the main products are oil drilling rig, workover rig, drifting machine, trailermounted pumping unit winch (The main drum is used LBS grooved drum) and oil equipment accessories.
Product Features:
1. Keep the wire rope's tensioning tight for winches & cranes.
2. The spooling machine can supply a back force on the rope to keep the rope a tensioning force.The spooling machine and its HPU are removeable.
Product application:
This product can be used for oil field, deck machinery, port construction, wharf construction, shipyard building and other large-scale factories.
