Product Details:
Payment & Shipping Terms:
|
| Main Port: | Tianjin China | Power Source: | Hydraulic |
|---|---|---|---|
| Sling Type: | Steel Wire Rope | Grooving Type: | LBS Grooves |
| Color: | Yellow Or According To Customer Demand | Specifications: | Custom Design Or Drawings |
| High Light: | windlass boat winch,hydraulic towing winch |
||

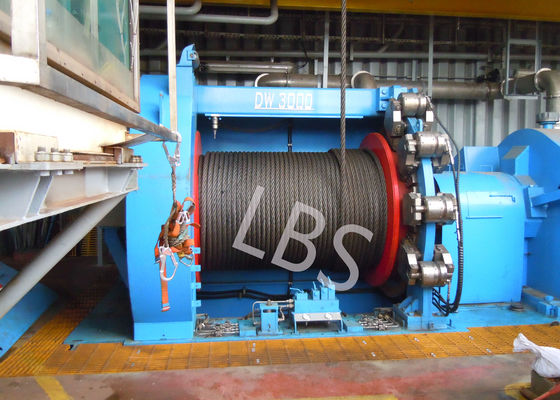

TITLE:10T 20T Hydraulic Windlass Pulling Hydraulic Winch with LBS Grooving Drum
The reason why our products are popular:
1) LBS groove design make the rope spooling smoonthly on and off the drum
2) competitive price and good techical support after the cooperation
3) Design case by case, which make the winch can suit your work conditions
4) Rich experience and professional production equipment.
Product specification
Custom-made (according to actual )
Place of Origin:Shijiazhuang,China(Mainland)
Brand Name:LBS
Model Number:OFM1-2-20
Power Source:Electric or Hydraulic
Application:Auto
Capacity:16800lbs
Color:Customized
Item name :offshore marine boat winch
Certification:SGS
Product name:Anchor windlass
Technical parameters
| No: |
Rated load (KN) |
Rope diameter (MM) |
Rope capacity (M) |
Rated speed (M/min) |
Motor power (KW) |
| 1 | 200 | 30 | 500 | 7.5 | 55 |
| 2 | 250 | 32 | 550 | 7.5 | 75 |
| 3 | 400 | 36 | 600 | 7.5 | 90 |
| 4 | 500 | 52 | 700 | 7.5 | 110 |
| 5 | 650 | 54 | 750 | 5 | 110 |
| 6 | 800 | 58 | 1100 | 5 | 132 |
| 7 | 1200 | 64 | 1100 | 5 | 180 |
| 8 | 1400 | 70 | 1300 | 5 | 220 |
| 9 | 1600 | 82 | 1300 | 4 | 220 |
| 10 | 2000 | 90 | 1500 | 4 | 250 |
| 11 | 2500 | 102 | 1800 | 4 | 300 |
| 12 | 3000 | 110 | 1800 | 4 |
360 |
Product application
1. Offshore Marine machinery: Offshore petroleum crane winch, Mooring winch, Traction winch, Man-riding winch, Anchor winch, Hydrologic winch
2. The petroleum industry: Oil drilling rig, Petroleum tractor hoist, Petroleum workover rig, Trailermounted pumping unit winch , oil Logging winch, etc
3. Crane machinery: Lifting machine, Tower crane machinery, Gantry crane,Crawler crane winch
4. The construction machinery: Building wipe wall winch, Winding hoist, Windlass
5. Engineering machinery: Cable winch, Tower crane, Piling machine, Hydraulic winch
6. Mining winch: Dispatching winch, Prop-pulling winch,Sinking winch, etc
Ours services
1. After-sales Service Provided: Engineers available to service machinery overseas
2. The warranty is one year
3. Top quality with competitive price
4. The engineer can provide overseas service
5. Quick and responsible after-sales service
FAQ:
|
Q1:What's your terms of payment? A. T/T 50% deposit and 50% before delivery. we will show you the photos of products and packages before your pay the balance. |
|
Q2:What's your terms of delivery? A. EXW, FOB CIF CFR etc
|
|
Q3:How about your delivery time? A. Generally,it will take about 10-30 days after receive your advance payment.The specfit delivery time depends on your order.quantitty. |
|
Q4:Can you produce according to the samples? A. Yes, we can produce by your sample and technical drawings, we can build mold and fixtures.
|
|
Q5: What's your sample policy? A. We can supply sample, but the customer have to pay the sample cost and courier cost.
|
|
Q6: Do you test all your goods before delivery? A. Yes, we have 100% test before delivery.
|
