Payment & Shipping Terms:
|Material:||Carbon Steel Q345, Q420, Q460, 15CrMo,20GrMo, 42GrMo, Etc||Galvanized:||Yes|
|Installation:||Bolted Or Weld||Groove Type:||LBS|
|Customization:||Yes||Color:||As Your Require|
|Rope Diameter:||12mm||Drum Capacity:||7000m|
rope winch drum,
electric hoist winch
|1.||what is your order quantity?|
|2.||what is the drum capacity?|
|5.||direction of wire rope entry?|
|6.||width between the flanges?|
Product rapid customization:
|Material||Stainless steel carbon steel nylon|
|width between the flanges||100mm-2000mm|
|wire rope diameter||3mm-198mm|
|The outside diameter of flanges||based on your rope capacity|
|rotation direction||left or right|
|drum type||single or double more|
Some customized product parameters for your reference:
|rotation direction||layers||drum capacity||drum diameter||drum outer diameter||Width between the flanges||rope diameter|
The customer can choose weld type or bolted type.

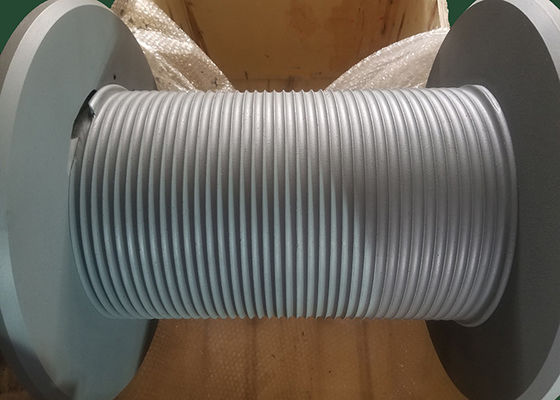

The intergrated LBS grooved drum: directly processing LBS groove on smooth drum.
Refering to the drum’s flange, the customer can choose to welding theflanges or bolted.
the split-type LBS groove generally can be mounted on a smooth, grooveless drum-for for retrofit or where the drum needs to be replaced.
The split -type sleeve system consists of a pair of outer casings that are bolted or assembled on a smooth light cylinder, so that the outer surface of the cylinder becomes a grooved form, and the split sleeve is composed of a spiral groove and a parallel groove, and the groove is formed. The design conforms to the specific rope structure, diameter and length.
Rotation direction: left or right
Processing method:steel plate rolling
Diameter range of wire rope:3mm-190mm
Rope capacity: 10m-10000m
Processing equipment:cnc machining center
Color: as your require
MOQ: 1 set
Port: Tianjin, Qingdao and Shanghai port in China
Package: Main body is packed in high quality plywood box
Warranty: the quality of our winch drum is guaranteed for one year, in this period, if any quality problem happens with correct operation, we will send spare parts to you free of charge.
After warranty, we will supply spare parts at cost prices to you.
