Heavy Duty Q355D LBS Grooved Drum Customized for Crane Wire Rope

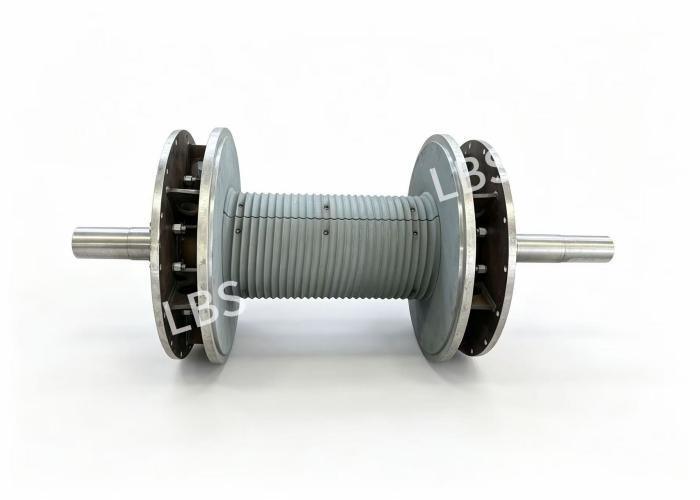

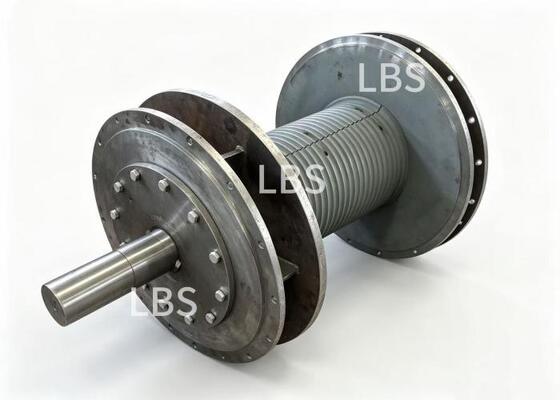

Large Image : Heavy Duty Q355D LBS Grooved Drum Customized for Crane Wire Rope

Product Details:

Place of Origin:	Shijiazhuang City
Brand Name:	LBS
Certification:	DNV, ABS, GL, LR, BV, CCS, RINA, NK
Model Number:	5111537949

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Vary by products
Packaging Details:	Wooden Case
Delivery Time:	About 10-40 days(subject to quantity)
Payment Terms:	L/C,T/T
Supply Ability:	Adjustable to orders

Contact Now

Detailed Product Description

Product Name:	LBS Grooved Drum	Key Words:	Lebus Drum
The Material:	Carbon Steel	Grooving Type:	LBS Groove
Apply:	Towing Winch	Warranty:	1 Year
Connection Type:	Welding	Category:	Winch Parts
Highlight:	Heavy Duty Q355D LBS Grooved Drum , Customized Crane Wire Rope Drum , LBS Grooved Drum with Warranty

Heavy Duty Q355D LBS Grooved Drum Customized for Crane Wire Rope

This heavy-duty LBS grooved drum is constructed from high-strength Q355D carbon steel, fully customizable to match various crane and winch working demands. Adopting standard Lebus rope groove structure, it delivers orderly multi-layer winding for steel wire ropes, effectively lowering rope abrasion, extrusion and disordered winding.

It supports custom length, left/right rotation direction and groove pitch, perfectly fitting offshore cranes, shipboard lifting machinery and port industrial winches. Plug welding connection ensures stable assembly on winch bodies, while anti-corrosion primer coating enhances durability under harsh marine environments.

We provide complete technical matching consultation, one-year quality warranty and standard wooden case packaging. Our professional technical team offers installation guidance and after-sales support to extend the service life of your crane equipment.

Product Attributes

Attribute	Value
Product Name	LBS Grooved Drum
rotation direction	lefthand or righthand
wire rope diameter	3mm-190mm
processing equipment	CNC machining center
drum type	LBS spooling system-based on unique geometry of the drum grooving
ceertified	DNV, ABS, GL, LR, BV, CCS, RINA, NK, KR
Material	Carbon Steel
Usage	Lifting

Product Application
Lifting Crane Equipment: Overhead hoists, tower cranes, gantry cranes and winch assemblies for crawler cranes
Petroleum Industry Equipment: Drilling rig winches, service rig hoists, truck-mounted pumping unit winches, logging winches and other oilfield lifting machinery
Offshore & Marine Equipment: Offshore oil platform crane winches, mooring winches, traction haulers, personnel lifting winches, anchor windlasses and hydrological survey winches
Construction Machinery: Construction wall hoists, material winding hoists and ship anchor windlasses
Mining Equipment Winches: Mine car transfer winches, hydraulic prop pulling winches, shaft sinking winches and related underground hauling devices
General Engineering Machinery: Cable hauling winches, tower lifting cranes, pile driving machines and hydraulic pulling winches
Product Advantages

Our LBS grooved drum thoroughly optimizes the messy winding issue of steel wire ropes during operation.Different from bare smooth drums and single helical grooved drums, the exclusive Lebus groove structure performs far better when the wire rope winds in multiple layers. The dedicated LBS groove design guarantees steady, orderly rope coiling and uniform load distribution on every rope layer. It greatly slows down wire rope wear and tear, extends the rope’s service cycle, boosts overall equipment operation safety, and cuts down unexpected production halts caused by frequent rope replacement.

FAQ:

Q1: What certifications does the LBS Grooved Drum (Model LBSD-Series) have?

A1: The LBS Grooved Drum LBSD-Series is certified with ISO9001, CE, and CCS, ensuring high quality and compliance with international standards.

Q2: What is the minimum order quantity for the LBS Grooved Drum?

A2: The minimum order quantity for the LBS Grooved Drum LBSD-Series is 1 unit.

Q3: How is the LBS Grooved Drum packaged for shipment?

A3: The LBS Grooved Drum is packaged in export standard wooden cases or on pallets to ensure safe delivery.

Q4: What is the typical delivery time for an order of the LBS Grooved Drum?

A4: The delivery time for the LBS Grooved Drum LBSD-Series is typically between 15 to 30 days, depending on order quantity and specifications.

Q5: What payment methods are accepted for purchasing the LBS Grooved Drum?

A5: Payment terms for the LBS Grooved Drum include T/T (Telegraphic Transfer) and L/C (Letter of Credit).
