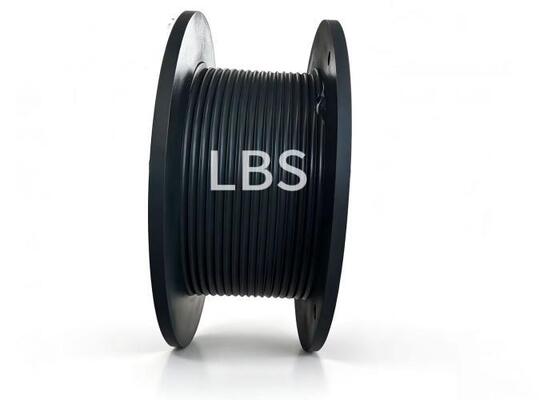

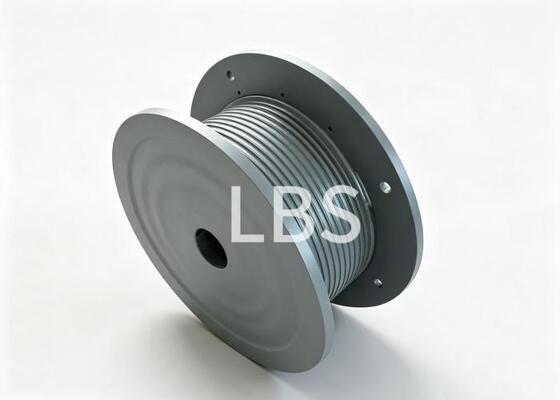

Double-Folded Groove Wire Rope Drum for Neat 6-Layer Multi-Layer Winding

1.Double-Folded Groove Wire Rope Drum for Neat 6-Layer Multi-Layer Winding Technical Specification

This wire rope drum adopts Lebus  rope groove structure, which can wind 170m Φ16mm wire rope and support multi-layer winding operation. The drum barrel body and main shaft are designed to be detachable. The complete set includes barrel body, main shaft, wire rope and full set of fasteners. The wire rope can be fixed and neatly coiled on the barrel surface with stable load performance, widely matched with winch and lifting equipment.

2.Double-Folded Groove Wire Rope Drum for Neat 6-Layer Multi-Layer Winding Parameters

3.Double-Folded Groove Wire Rope Drum for Neat 6-Layer Multi-Layer Winding Application

This drum is widely matched with all kinds of winches and lifting traction equipment to realize wire rope retraction, heavy load lifting and dragging traction. It can be applied to construction machinery lifting scenarios such as truck-mounted cranes, crawler cranes and engineering rescue obstacle removal equipment. It is also suitable for open-pit and underground mining operations for mining winches, mine car haulage and roadway equipment relocation. In marine and shipping industries, it can be used for ship deck winches, auxiliary traction on offshore platforms, marine hoisting and waterway salvage. Besides, it meets the demands of cargo handling and barge hauling at ports and terminals, and is widely applicable to material hoisting in construction projects, log traction in mountain forestry, emergency rescue, as well as traction work for tunnel construction in rail transit.

4.Double-Folded Groove Wire Rope Drum for Neat 6-Layer Multi-Layer Winding Advantage

Equipped with Lebus double-folded rope grooves, the product ensures orderly winding of wire rope up to 6 layers, effectively preventing rope disorder, extrusion and abnormal wear, and extending the service life of wire rope. It achieves a maximum output pull force of 22KN with stable load capacity. The matched wire rope has a minimum breaking load of ≥90KN to guarantee adequate safety factor. The detachable design of barrel body and main shaft greatly facilitates on-site installation, maintenance and parts replacement. The product is supplied as a complete integrated set and can be assembled and put into operation directly after delivery.

5.Double-Folded Groove Wire Rope Drum for Neat 6-Layer Multi-Layer Winding FAQ

Q1: What certifications does the LBS Grooved Drum (Model LBSD-Series) have?

A1: The LBS Grooved Drum LBSD-Series is certified with ISO9001, CE, and CCS, ensuring high quality and compliance with international standards.

Q2: What is the minimum order quantity for the LBS Grooved Drum?

A2: The minimum order quantity for the LBS Grooved Drum LBSD-Series is 1 unit.

Q3: How is the LBS Grooved Drum packaged for shipment?

A3: The LBS Grooved Drum is packaged in export standard wooden cases or on pallets to ensure safe delivery.

Q4: What is the typical delivery time for an order of the LBS Grooved Drum?

A4: The delivery time for the LBS Grooved Drum LBSD-Series is typically between 15 to 30 days, depending on order quantity and specifications.

Q5: What payment methods are accepted for purchasing the LBS Grooved Drum?

A5: Payment terms for the LBS Grooved Drum include T/T (Telegraphic Transfer) and L/C (Letter of Credit).
