Q355B Right‑Hand Double‑Folded Groove Drum Sleeve For 41mm Wire Rope

1.Description

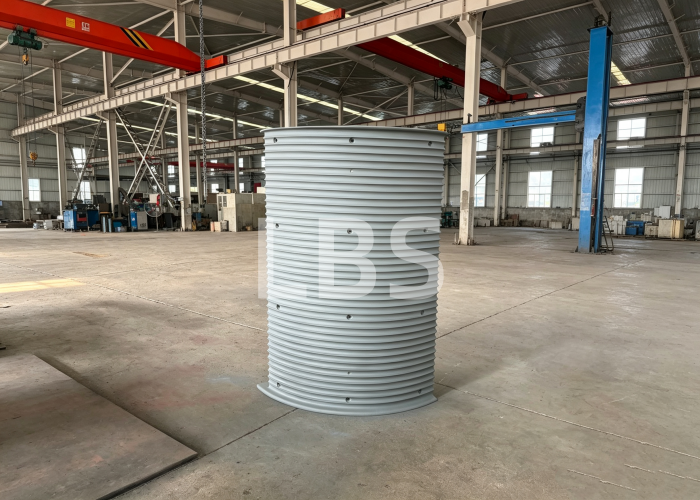

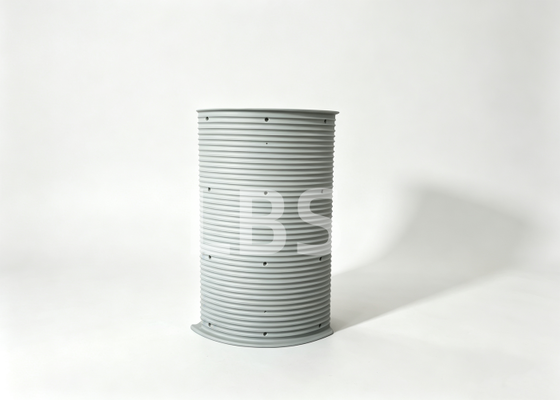

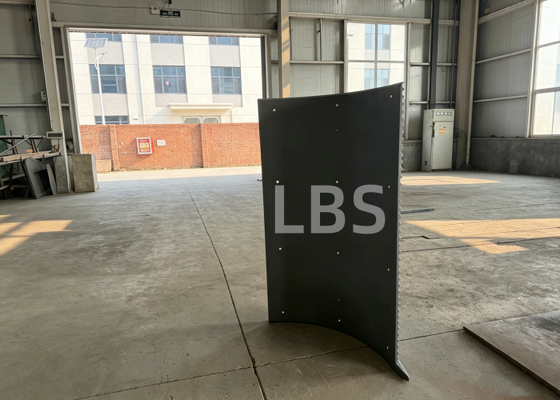

Lebus sleeves are rope‑groove sleeves fitted onto the outer surface of drum core for winches. Made of Q355D with EN10204/3.1 material certificate. It adopts Lebus double‑folded groove with right‑hand rotation. The segmented sleeve is fastened to drum core by 48 sets M16 bolts, with spray primer surface treatment. Designed for Φ41 mm steel wire rope, it enables neat multi‑layer rope winding and prevents rope disorder, biting and squeezing damage. It can be mounted directly on existing drum core without drum modification for easy installation and maintenance.

2.Parameter

3.Advantage

• Superior rope‑arranging performance: Double‑folded groove ensures tidy multi‑layer winding, avoids rope jumping and biting, greatly extends wire‑rope service life.
• Modular sleeve structure: Segmented fit‑on design, no drum core replacement required. Easy for installation, inspection and replacement, reduces retrofitting cost.
• Low‑temperature high‑strength material: Q355D features good low‑temperature impact toughness, suitable for offshore and cold field conditions, supplied with EN10204/3.1 material test certificate.
• Uniform stress & wear resistance: Precisely machined grooves distribute rope load evenly, mitigate rope abrasion and wire‑break risk.
• Anti‑corrosion performance: Primer coating improves rust‑proof performance for outdoor and marine working conditions.

4.Application

This drum sleeve is well‑suited for port machinery, offshore vessel winches, and heavy‑duty industrial winches where 41 mm wire rope is adopted in multi‑layer winding systems. The double‑folded Lebus groove pattern makes it particularly effective in applications requiring controlled rope layering without extra compression accessories. Precision‑machined transition sections at both ends allow for smooth rope transition, reducing impact stress during rope winding and direction shifting. Typical deployments include mooring & towing winches, marine lifting equipment, mine hoisting and heavy‑duty material‑handling systems. Its segmented bolt‑on replaceable design enables quick on‑site maintenance, minimizing equipment downtime. For operations demanding consistent spooling performance and reliable anti‑corrosion protection, this Lebus drum sleeve delivers a practical, long‑lasting solution.

5.FAQ

Q1: What certifications does the LBS Sleeve LBSS-Series have?

A1: The LBS Sleeve LBSS-Series is certified with ISO9001, CE, and CCS, ensuring high quality and compliance with international standards.

Q2: What is the minimum order quantity for the LBS Sleeve LBSS-Series?

A2: The minimum order quantity for the LBS Sleeve LBSS-Series is 1 unit.

Q3: How is the LBS Sleeve LBSS-Series packaged for delivery?

A3: The product is packaged in export standard wooden cases or pallets to ensure safe transportation.

Q4: What is the typical delivery time for the LBS Sleeve LBSS-Series?

A4: The delivery time usually ranges from 15 to 30 days after order confirmation.

Q5: What payment terms are accepted for purchasing the LBS Sleeve LBSS-Series?

A5: Payment terms accepted include T/T (Telegraphic Transfer) and L/C (Letter of Credit).
