Left-hand 60° Drum Sleeve Q355D Lebus Grooving For Winch

Left-hand 60° Drum Sleeve Q355D Lebus Grooving For Winch

Product Description

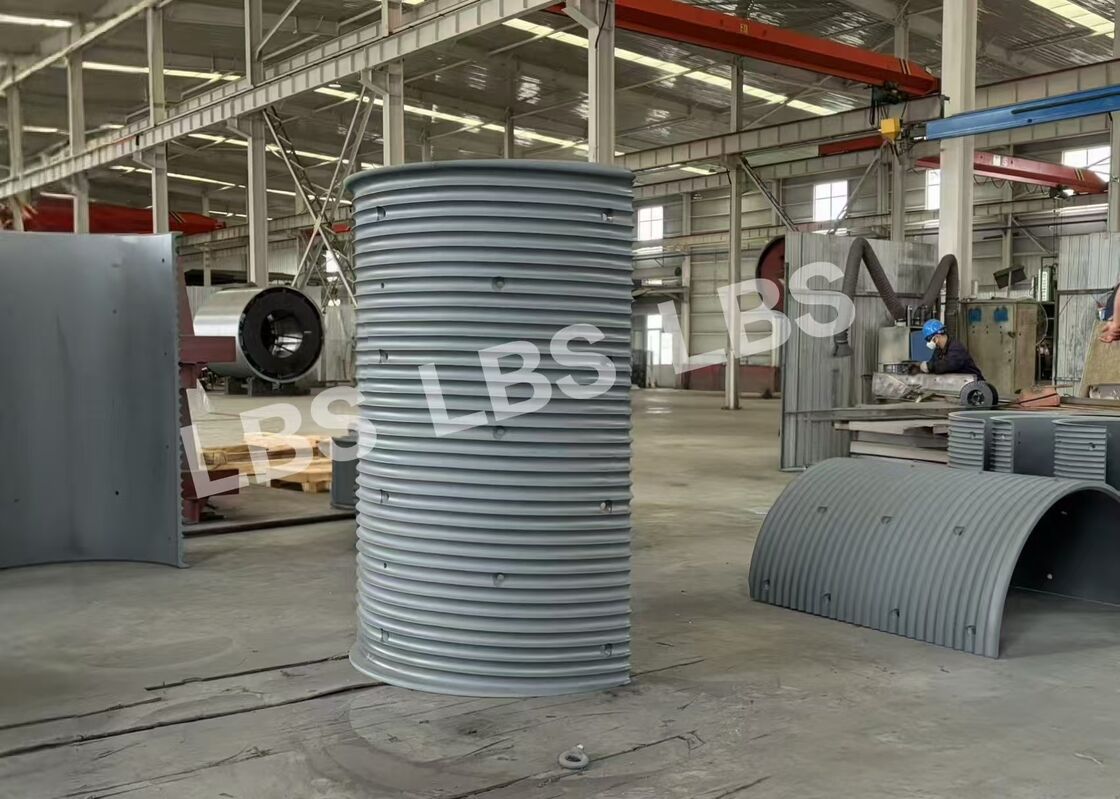

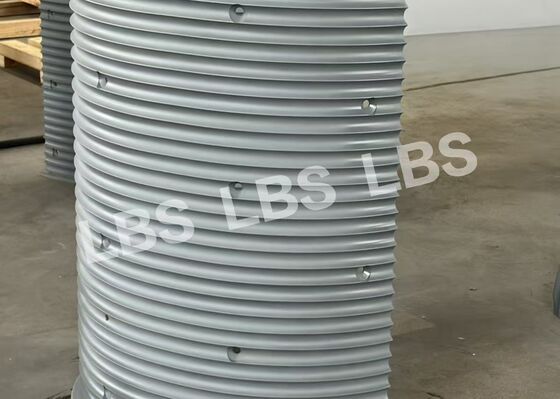

This Lebus split drum sleeve is made of Q355D steel, with 60° left-hand rope grooves and bolted connection, net weight 545kg. It matches 34mm diameter steel wire rope with 36 rope grooves, arranging wire rope neatly to reduce abrasion. The surface is coated with epoxy zinc-rich primer for great rust and corrosion resistance. Customizable for crane winch application, it features reliable performance and easy on-site installation and maintenance.

Technical Parameter

Advantages

• Designed with Lebus grooving system and 60° left-hand helix, this drum sleeve shell neatly guides Φ34mm wire rope, eliminating rope overlapping and crushing to extend wire rope service life and cut your spare parts cost.
• Made of high-strength Q355D steel, this 545kg split drum sleeve adopts bolted connection. No need to replace the whole drum, enabling fast on-site installation & maintenance and minimizing machine downtime.
• Coated with epoxy zinc-rich primer for superior anti-corrosion & rust protection, it performs reliably under harsh working conditions such as ports, mines and outdoor construction sites.
• Custom manufacturing available according to drawings. With 36 rope grooves and precise machining, it delivers stable load performance and fits for multiple crane winches.

Application

• This Lebus split drum shell is designed for crane winch systems, mainly used for hoisting and luffing mechanisms of mobile cranes, crawler cranes and portal cranes.
• It is applied in heavy-duty outdoor scenarios including ports, mines, wind power hoisting and large infrastructure projects for orderly winding and load-bearing of steel wire ropes.
• The split structure allows direct replacement of damaged rope groove segments without replacing the entire drum, ideal for machinery maintenance and equipment retrofitting projects.
• Custom manufacturing is available based on client drawings to match heavy lifting equipment with different rope capacities and wire rope specifications.
