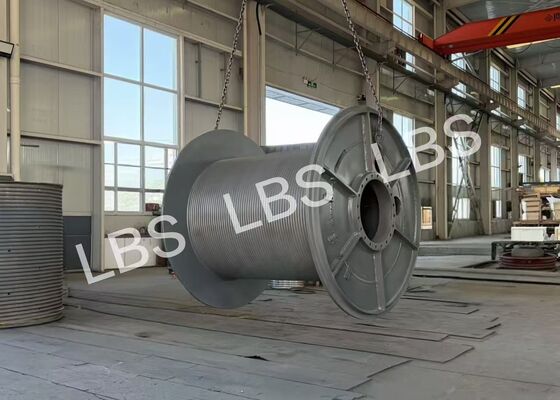

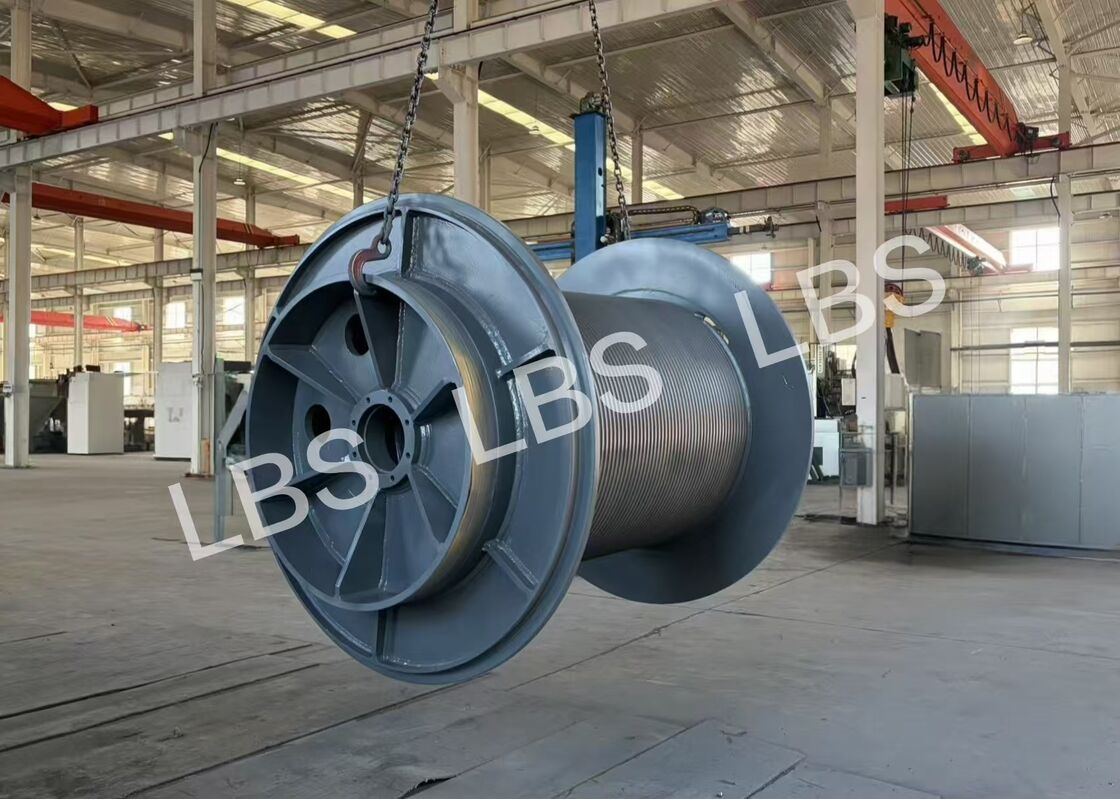

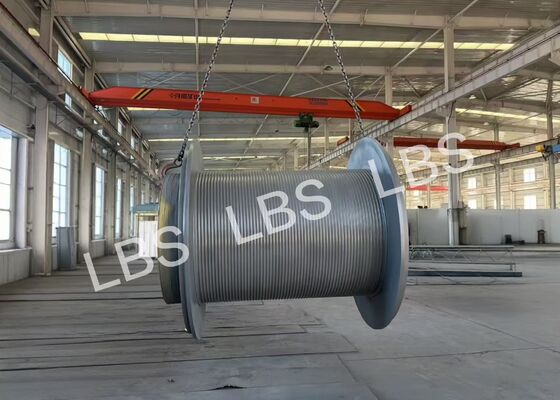

Right Hand 50° Lebus Drum 11 Layers Rope Ø17.4mm Capacity >2000m

Right Hand 50° Lebus Drum 11 Layers Rope Ø17.4mm Capacity >2000m

Product Description

This drum is made of Q355B steel, fitted with Lebus right-hand 50° double-fold rope grooves, which can hold over 2000m of steel armored cable with diameter of 17.4mm. It features reliable welding without defects, sharp edges deburred and burrs removed after machining, with dimensional tolerances complying with national standards. The drum is coated with epoxy primer on outer surface and anti-rust oil on fitting surface, offering good corrosion resistance for heavy-duty winch and lifting equipment with long cable winding.

Technical Parameter

Characteristic

• Constructed from high-strength Q355B steel, it delivers outstanding load capacity. The drum can accommodate over 2000 meters of Φ17.4 steel armored cable for long cable storage.
• Equipped with Lebus right-hand 50° double-fold rope grooves, it guides neat cable arrangement to prevent wire rope crowding, disorder and abrasion.
• Stable and reliable welding with no missed welds. All sharp edges are deburred and flash removed after machining. Dimensional & geometric tolerances strictly follow national standards for high precision.
• Complete anti-corrosion treatment: epoxy primer coated on drum surface and anti-rust oil applied on fitting surfaces, providing reliable rust protection for outdoor and humid working conditions.

Application

Designed for long-distance cable winding and unwinding, this drum is widely used in marine engineering winches and heavy-duty land lifting equipment. It is suitable for geological exploration and deep well operations to store steel armored cables and ensure stable and neat cable winding. It also fits mining and large construction machinery, delivering reliable performance under heavy-load and continuous working conditions.
