Product Description

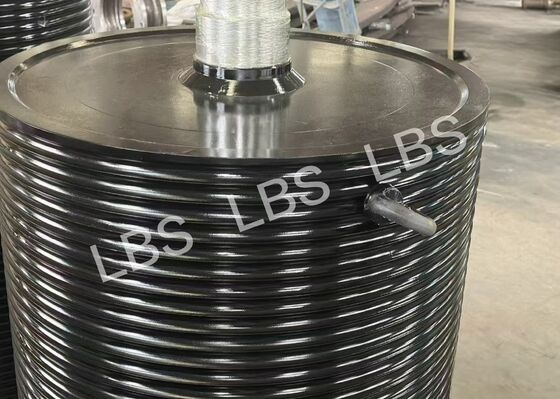

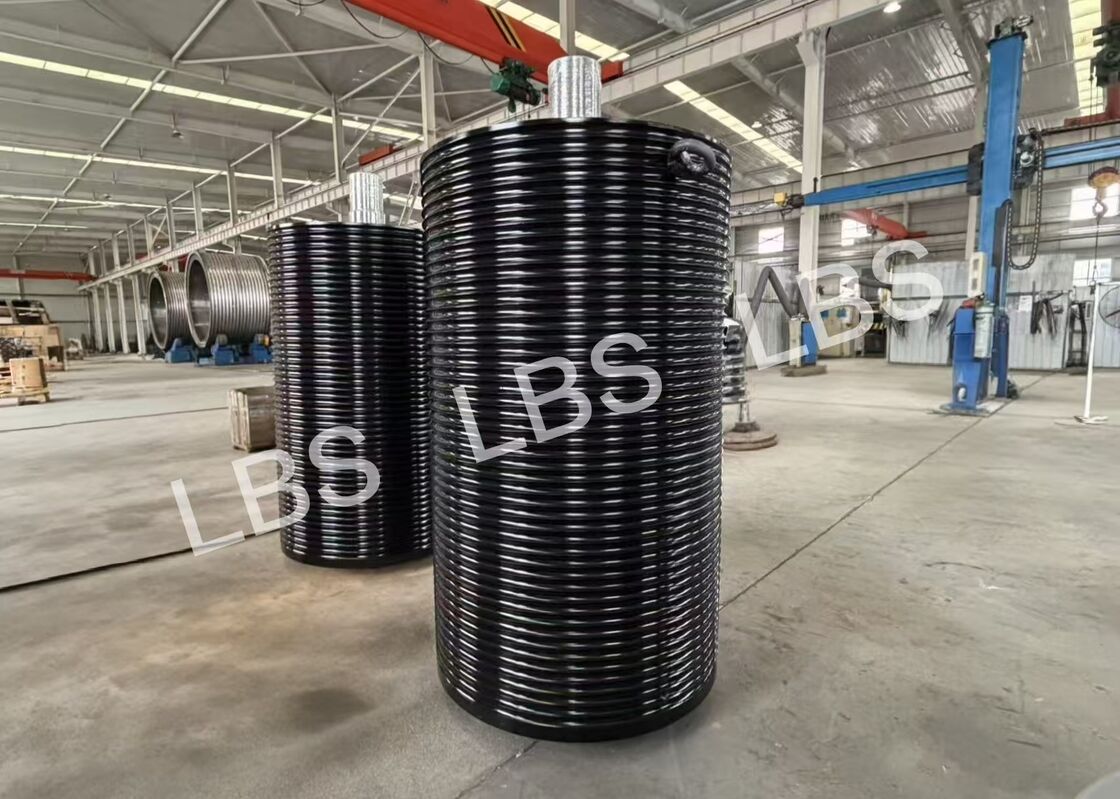

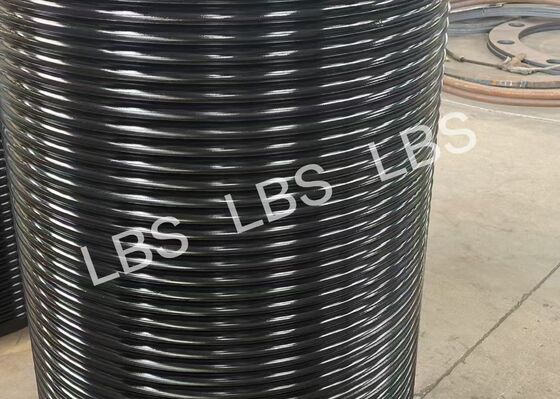

This luffing drum is made of Q355C steel with precisely machined Lebus grooving. The special groove design enables neat multi-layer wire rope winding and avoids rope crossing or jumping. It undergoes heat treatment and NDT inspection for high structural strength under heavy lifting loads. Custom dimensions are available to match luffing mechanism of various cranes.

Technical Parameter

Advantages

• Adopting Lebus grooving technology for neat wire rope arrangement, greatly reducing rope wear and extending service life.
• Q355C steel features excellent low-temperature impact toughness, stable performance and strong shock resistance in cold outdoor environments.
• Heat treatment and NDT inspection eliminate welding residual stress to ensure safe operation under alternating heavy loads.
• Precision machining according to drawings with controlled geometric tolerances, high fitting accuracy for various crane luffing systems.
• Anti-corrosion surface coating provides rust protection, suitable for harsh outdoor conditions such as ports and construction sites.

Matters Need to Attention

1. Inspect the drum groove, flange and shaft hole for damage before installation, confirm dimension matching, and never force assembly.
2. Ensure the wire rope lead angle stays within specification during operation to prevent partial groove wear and rope jumping.
3. Regularly check anti-corrosion coating, welds and groove wear. Stop operation immediately if cracks, peeling paint or severe groove abrasion are found.
4. Do not overload. Run the equipment at low speed for a trial before formal operation in low-temperature environments to reduce impact load.
5. For long-term storage, place it in a dry and ventilated area, keep it protected from water and salt spray corrosion.
