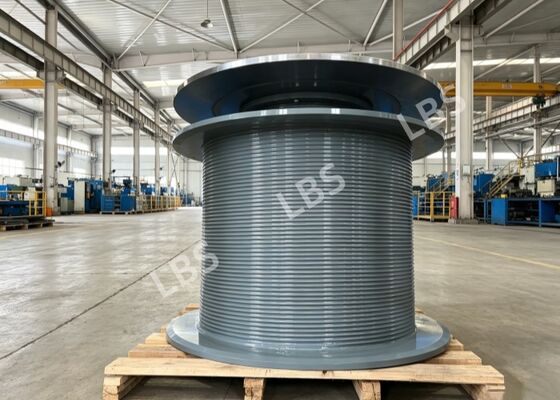

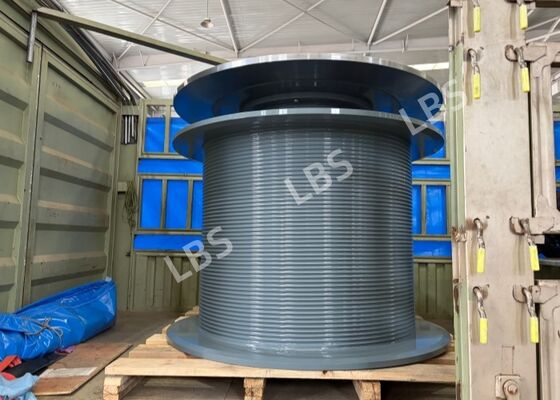

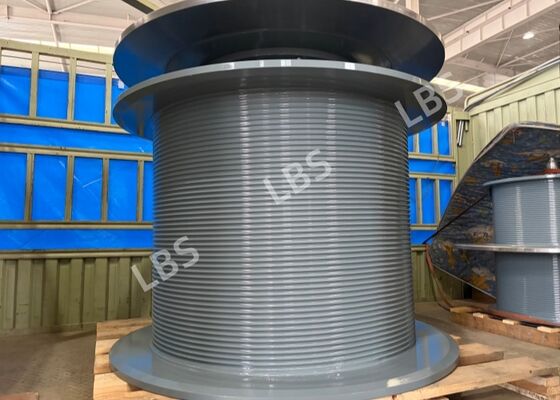

Q355D Split Lebus Winch Drum, Multi-layer Wire Rope Neat Arrangement, Anti-rope Biting

1.Product Description

This Lebus winch drum is a split assembled drum for marine & offshore heavy lifting winches. It is made of Q355D low-temperature impact steel. The drum barrel is machined with 45° right-hand Lebus dual folded rope grooves, specially matched for Φ18 steel wire rope with max 5 layers winding.
The assembly includes drum barrel, two end plates, connecting frame and brake disc. High-strength bolts together with positioning pins are used for locking and positioning. Welding is followed by stress relief treatment to remove residual stress. The surface adopts marine anti-corrosion coating system: sandblasting + epoxy zinc-rich primer + polyurethane topcoat (RAL7031, DFT ≥100μm). Fitting surfaces are coated with anti-rust oil. The brake disc is processed with controlled surface roughness to match disc brake calipers for reliable braking.

2.Parameter

3.Advantage

1. Lebus rope groove design guides wire rope to arrange neatly in multi-layer winding, effectively avoid rope biting, rope crossing and messy winding, greatly extend wire rope service life.
2. Split modular structure, easy to disassemble, inspect and replace components, reduce downtime for maintenance.
3. Q355D steel has excellent low-temperature toughness, suitable for cold offshore working conditions.
4. Complete brake disc integrated design, directly matched with disc brake caliper, stable and reliable braking performance.
5. Post-weld stress relief treatment reduces deformation risk; strict tolerance control guarantees interchangeability.
6. Heavy-duty marine anti-corrosion coating, resist salt spray and humidity in marine environment, long service cycle.

4.Application

It is widely used for offshore lifting winches, ship deck winches, offshore platform hoisting equipment, heavy-duty marine cranes and other heavy lifting systems working in marine & offshore industry.
