|Product Feature:||Low Noise ,even Distribution,move Sooth||Power:||Hydraulic Or Electric|
|Sling:||Wire Or Cable||Rope Speed:||0-40m/min|
|Drum Groove:||LBS Groove||First Pulling Force:||0.5-20MT|
windlass boat winch,
hydraulic towing winch

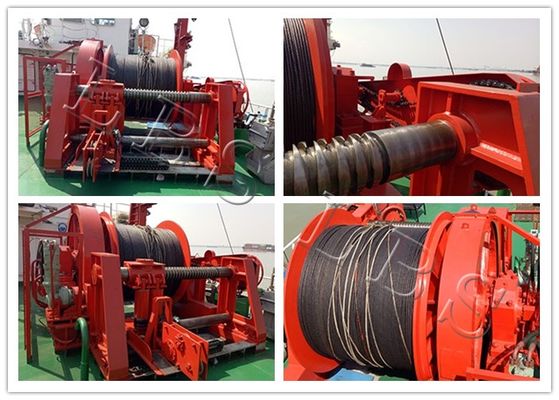

Ship boat marine windlass for mooring lifting winch with LBS groove drum
Brief view :
Product name: windlass winch
Durm type :smooth or LBS groove
Sling type:wire or cable
Application:Oil, Marine And Geological Exploration
Function:pulling,pushing ,lifting ,hoisting ,fixed
Feature:low noise ,even distribution,move sooth
Parts of model as follow:can design as customer
|Name||Shipyard Windlass Winch|
|Maximum Reel Weight:||Approx 65Ton|
|Reel speed:||Approx 1-6 rpm|
|Maximum Reel Width:||2.27m|
|Minimum Reel Windth:||1.17m|
|Maximum Reel Diameter:||3.0m (Flange Diameter)|
|Overall Dimensions of machine:||L4.68m x W2.3m x H3.2m|
|Pedestal Dimensions:||L4.83m x W2.5m|
|Tension (back force) on cable:||Approx 100KN|
|Tension (back force) on cable at 1st layer:||
Drum type knowledge:
The split-sleeve consists of a pair of outer shells that are bolted or welded onto the smooth drum of the windlass winch. It has two line and spiral groove in one road ,so the rope can fall in the uniform groove in the movement .That can prevent rope inter-twist problem to make the rope on -off the drum smoothly.
Shipyard Windlass Winch
1. Single or Multi-drum Type
4. Certificate Approval: ABS BV CCS DNV GL LR KR NK RINA RS etc.
5. With drag brake system
6. Configuration: horizontal arrangement
7. Rope speed: complying with ISO requirements
1. Top quality with competitive price.
2. Compact structure and reasonable design
3. Safe and reliable function.
4. Highly efficient, constant operating torque motor.
5. Smooth running over the entire speed range.
6. Reliable operation with little noise.
1. One Year Quality Assurance
2. Free Components for replacement within warranty period
3. Professional solution provider
4. Free techinical support at anytime
5. Marine winch,electric anchor winch, hand winch ,hydraulic winches ,windlass,capstan and outfitting can be designed
