High Precision Wear-resistant Double-fold Lebus Luffing Drum, Anti-deformation & Anti-rope Disorder

1.Product Description

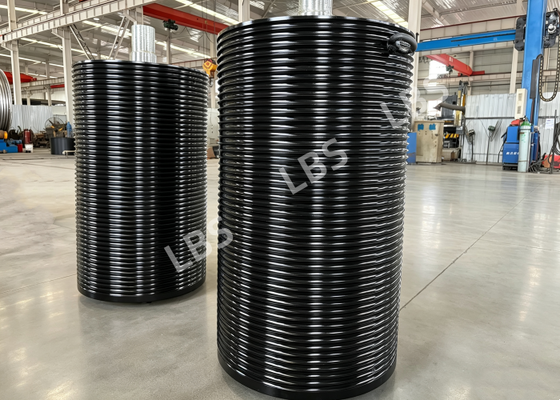

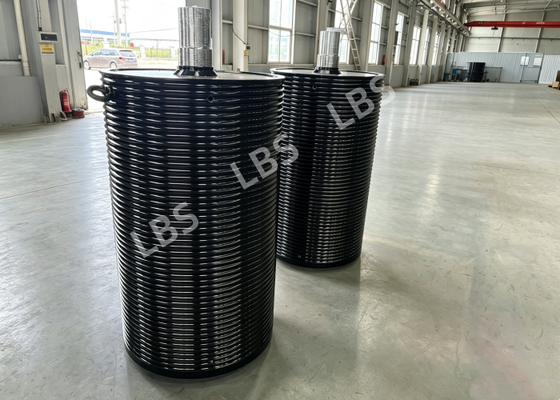

This Lebus luffing drum is a high-quality welded wire rope drum specially developed for crane luffing mechanisms. It is fabricated from Q355C high-strength low-alloy steel with M4 working class for medium and heavy-duty lifting operations. The barrel is precision machined with right-hand Lebus parallel rope grooves. The groove root diameter is 750mm with 46 standard grooves and a pitch of 26mm. It is perfectly designed for multi-layer wire rope spooling, fundamentally eliminating common failures such as wire rope crushing, rope biting, cross-winding and rope jumping.

The assembly is integrally welded by barrel, left & right side plates, shaft and pressure plate components. The barrel is preferably rolled from a single steel plate for superior structural integrity. All butt welds comply with Class 1 weld standard and pass NDT inspection. After welding, the assembly undergoes overall stress relief annealing to remove internal welding stress, followed by integrated precision machining to strictly control coaxiality and end runout. Manufactured fully in accordance with JB/T9006-2013 crane drum standard, it delivers outstanding stability, low failure rate and long service life, widely applied to engineering cranes, port machinery and offshore lifting winches.

2.Product Parameter

3.Product Advantages

(1) Lebus parallel rope groove design: Guides multi-layer wire rope for neat winding, reduces wire rope abrasion and extrusion, extends rope service life and prevents cross-winding and rope jumping.

(2) Q355C high-strength base material: Good low-temperature toughness and impact resistance, suitable for outdoor, port and offshore working conditions.

(3) High-standard welding process: Class 1 welds with post-weld NDT inspection. Overall annealing after welding eliminates internal welding stress and avoids barrel deformation.

(4) Integrated precision machining: Machined in one setup after welding and annealing to guarantee coaxiality and end runout, lowering operating vibration.

(5) Crane-grade compliant manufacturing: Produced strictly to national crane drum standards with clear scrap criteria for safer equipment operation and maintenance.

(6) Modular welded structure: Composed of separate side plates and barrel, featuring high structural rigidity and heavy load capacity.

4.Product Application

This Lebus parallel-groove luffing winch drum is suitable for a wide range of heavy-duty lifting conditions. It is mainly used for luffing winch systems of mobile cranes and crawler cranes, and also compatible with gantry cranes, port lifting equipment, engineering hoisting devices and offshore platform lifting winches. Benefiting from the low-temperature toughness and impact resistance of Q355C high-strength steel together with stable rope arrangement performance of precision grooves, it adapts perfectly to harsh environments including open-air sites, humid ports and complex offshore conditions. It continuously ensures stability and safety during luffing & lifting operations, serving as a core component for construction machinery, port logistics and offshore engineering lifting equipment, and meets the long-term high-frequency operation demands of various medium and heavy-duty lifting machines.
