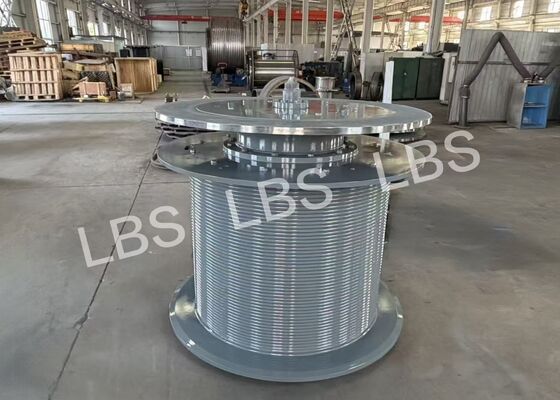

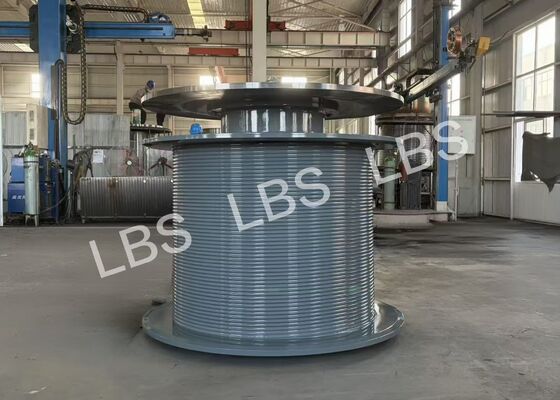

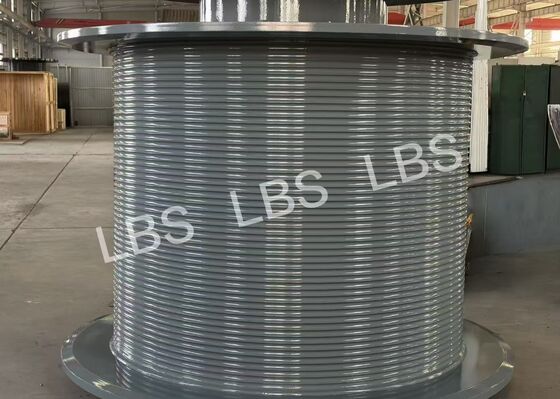

LBS Lebus Drum Φ18 Wire Rope 5 Layers 45° Right Hand Groove

LBS Lebus Drum Φ18 Wire Rope 5 Layers 45° Right Hand Groove

Product Description

This Q355D drum is designed with LBS Lebus double helical grooves at 45° right-hand rotation, suitable for ∅18 steel wire rope with 5-layer neat winding. Stress relief treatment is carried out after welding to ensure solid structure without welding defects. The drum is sandblasted and coated with epoxy zinc-rich primer and polyurethane topcoat, with total film thickness ≥100μm for outstanding anti-corrosion performance. Manufactured in compliance with national tolerance standards, all sharp edges are deburred, and the brake disc meets roughness requirements for stable long-term lifting operation.

Technical Parameter

Advantages

• Made of Q355D low-alloy high-strength steel, it features excellent low-temperature toughness, maintaining high strength and impact resistance without cracking in cold working conditions.
• Equipped with LBS Lebus double helical rope grooves of 45° right-hand design. It arranges wire ropes neatly during multi-layer winding, preventing rope biting and extrusion to extend wire rope service life.
• Post-weld stress relief heat treatment eliminates residual welding stress. The drum resists deformation under long-term heavy load, with reliable welding and no leakage defects.
• Complete anti-corrosion coating system with epoxy zinc-rich primer and polyurethane topcoat, total coating thickness ≥100μm in RAL7031 grey. It works well in outdoor and humid marine environments.
• Dimensions and geometric tolerances are controlled strictly per national standards. The brake disc has precise roughness, sharp edges are deburred for easy assembly, compatible with various lifting winch equipment.

Application

This Q335D Lebus grooved drum is widely used for various lifting winches, compatible with construction machinery and port lifting equipment. It performs stably under low-temperature field conditions and coastal high-humidity corrosive environments. It is commonly applied in mine hoisting, marine deck cranes, wind power hoisting and large construction lifting projects to ensure safe and reliable multi-layer winding of steel wire ropes.
